NP Pro Hub stands

NP Pro Hub Stands

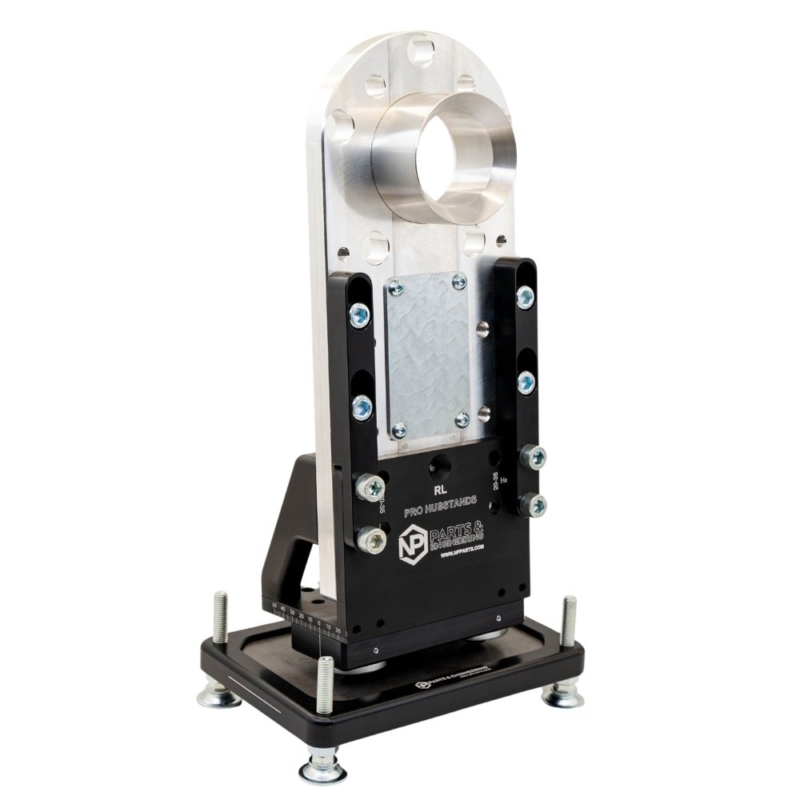

NP Pro Hub Stands are a complete, professional-grade motorsport suspension geometry measurement system built around CNC-machined hub stands with leveling base plates. Designed for race engineers and workshop professionals, the Pro Hub Stand kit enables accurate toe, camber, caster, and ride height measurement across a wide range of motorsport and performance vehicle platforms. Precision-machined from 6082-T6 aluminium in Lithuania, EU, the system is available with laser alignment or string alignment add-ons to meet different measurement workflow preferences.

The NP Pro Hub Stands can be custom-made on request for non-standard hub configurations, and are compatible with brake discs up to 380 mm in diameter without modification.

Key Features & Benefits

• CNC machined from 6082-T6 aluminium – precision material for tight dimensional tolerances and long service life in demanding workshop and pit conditions
• Adjustable height: 35 mm range – accommodates variation in vehicle ride heights and tyre profiles across different platforms
• Adjustable wheel offset: +12 to –50 – interchangeable mounting plates adapt to a wide range of wheel offsets and bolt patterns
• Load transfer bearings – precision rolling elements at the hub interface eliminate lateral friction during toe measurement for accurate, undistorted readings
• Available with laser or string alignment add-ons – choose the measurement approach that fits your team’s workflow and existing equipment
• Interchangeable mounting plates – allows the same hub stands to be used across different vehicle platforms with minimal changeover time
• Compatible with brake discs up to 380 mm – no modification required for the majority of circuit, rally, and road car applications
• Custom manufacturing available on request – non-standard hub configurations or specific dimensional requirements can be accommodated
• Manufactured and assembled in EU (Lithuania) – full quality control and component traceability

Available Options & Pricing

• NP Pro Hub Stands (base kit with leveling plates) – from €1,510
• NP Pro Hub Stands (with alignment add-ons) – from €1,730

All prices are shown excluding VAT.

Kit Contents

• NP Pro Hub Stands (pair)

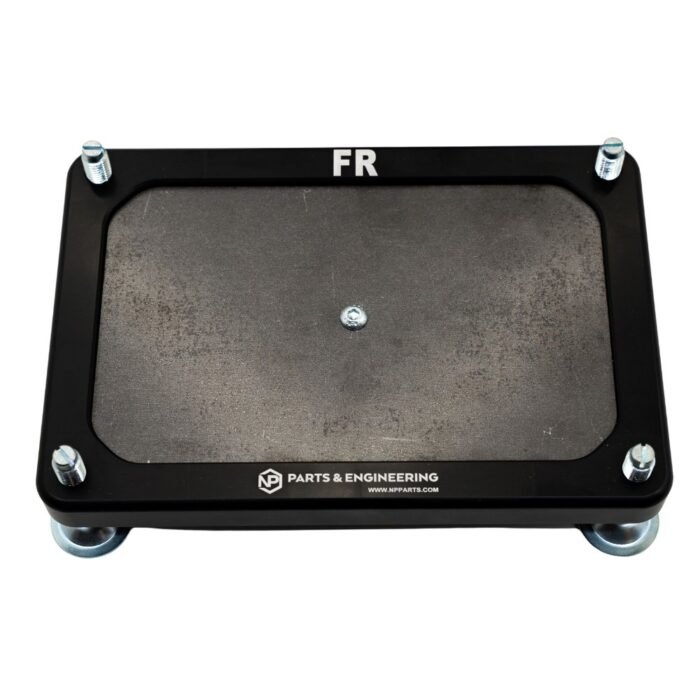

• Base leveling plates
• Laser alignment or string alignment add-ons (optional, based on variant selected)

Measurement Capabilities

• TOE measurement (using laser or string alignment system)
• Camber measurement (with digital dual-axis angle reader)
• Caster measurement (with digital dual-axis angle reader)
• Ride height measurement (laser leveling tool and measuring tape)

Materials & Construction

• 6082-T6 aluminium alloy – primary structural material for hub stand bodies, selected for precision machinability and strength-to-weight ratio
• Load transfer bearings – precision rolling elements at the hub interface for friction-free toe measurement
• Interchangeable mounting plates – machined to accommodate different bolt pattern configurations

Applications

• Pre-event suspension geometry setup for circuit and rally vehicles
• Professional workshop alignment without fixed ramp infrastructure
• Track-day and sprint car preparation
• Corner weight and ride height baseline measurement
• Endurance racing team geometry management across multiple sessions

Why These Hub Stands Are Important

Accurate, repeatable suspension geometry measurement is fundamental to consistent vehicle setup and competitive lap times. The NP Pro Hub Stands provide a portable, professional-grade measurement platform that gives teams access to workshop-quality geometry data without the need for a fixed alignment ramp. With adjustable height, interchangeable mounting plates, and load transfer bearings, these stands deliver accurate toe, camber, and caster readings across a wide range of vehicle configurations and measurement scenarios.

Technical Information

• Product type: Motorsport hub stand suspension geometry system
• Height adjustment range: 35 mm
• Offset (ET) adjustment range: +12 to –50
• Brake disc compatibility: Up to 380 mm diameter (no modification required)
• Materials: CNC-machined 6082-T6 aluminium, load transfer bearings
• Origin: Manufactured and assembled in EU (Lithuania)
• Custom manufacturing: Available on request
• SKU: NP PIT HBPKSN
• Condition: New

Pricing & VAT

All prices are shown excluding VAT.

For bulk orders or motorsport team inquiries, please contact us.
