NP Elite Car setup package

NP Elite Car Setup Package is our top-of-the-line, complete, professional-grade vehicle setup system designed for motorsport teams, performance workshops, and professional service environments. The ELITE is the most advanced hub stand system in the NP Parts lineup, offering the highest level of precision, integration, and capability for demanding motorsport applications. This package provides all essential tools required for precise suspension geometry, chassis alignment, corner weight balancing, and vehicle setup using a hub stand–based measurement system. All components are designed, CNC-machined, assembled, and calibrated in-house in Lithuania, ensuring maximum precision, durability, and repeatability under demanding motorsport conditions.

This package includes a fully integrated Bluetooth scales and camber measuring system — the complete solution for teams that want corner weight, camber, and alignment in one kit.

Package Includes

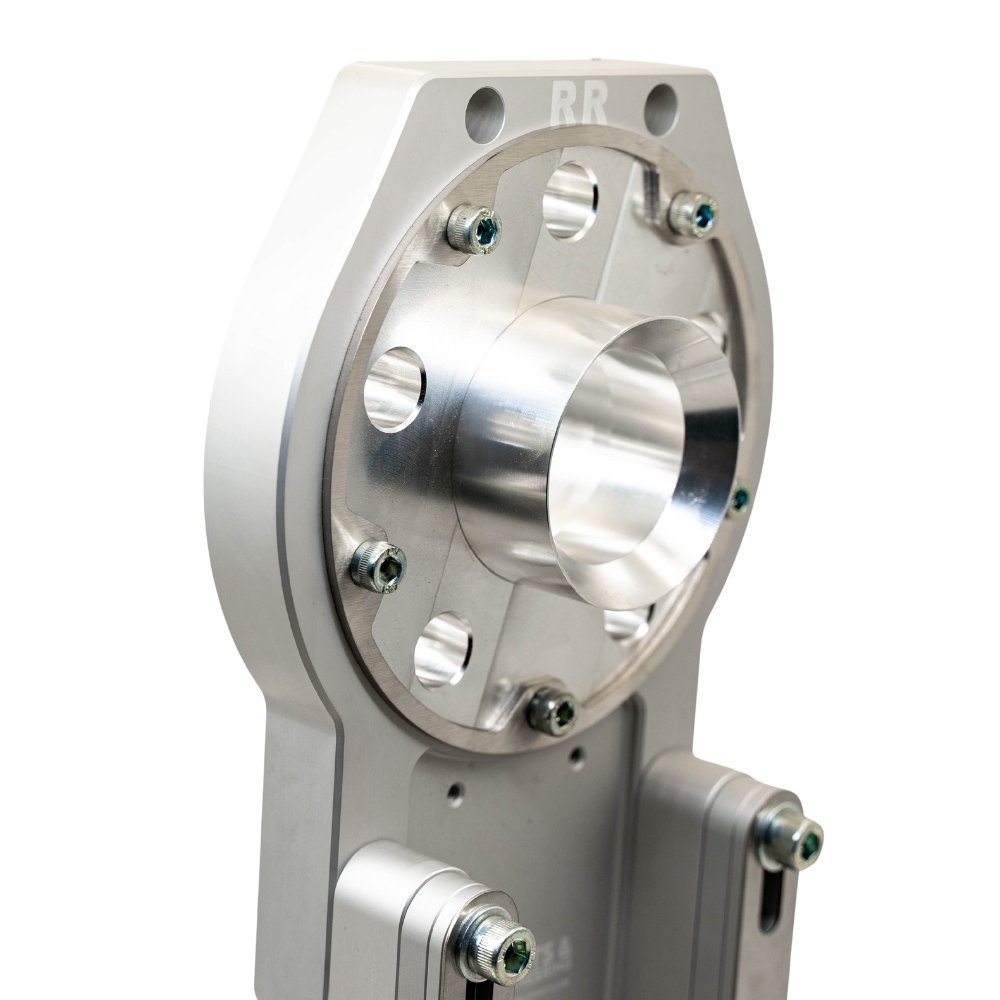

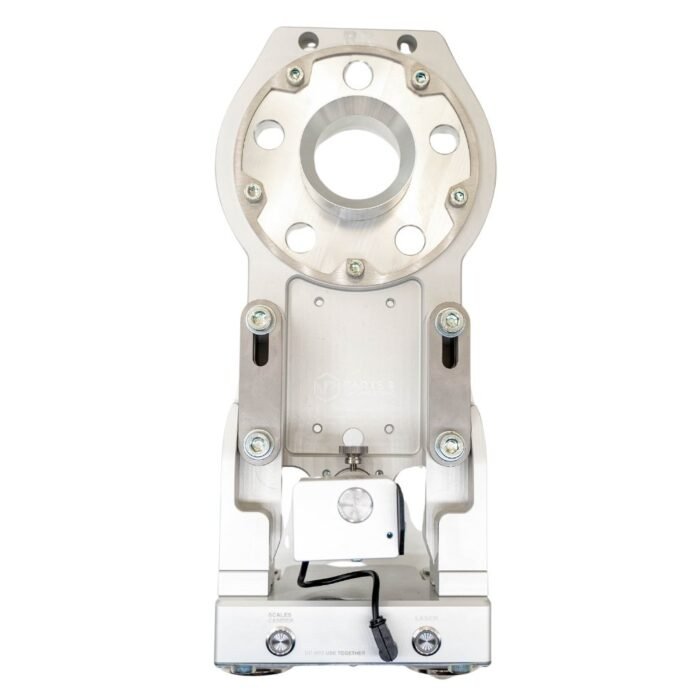

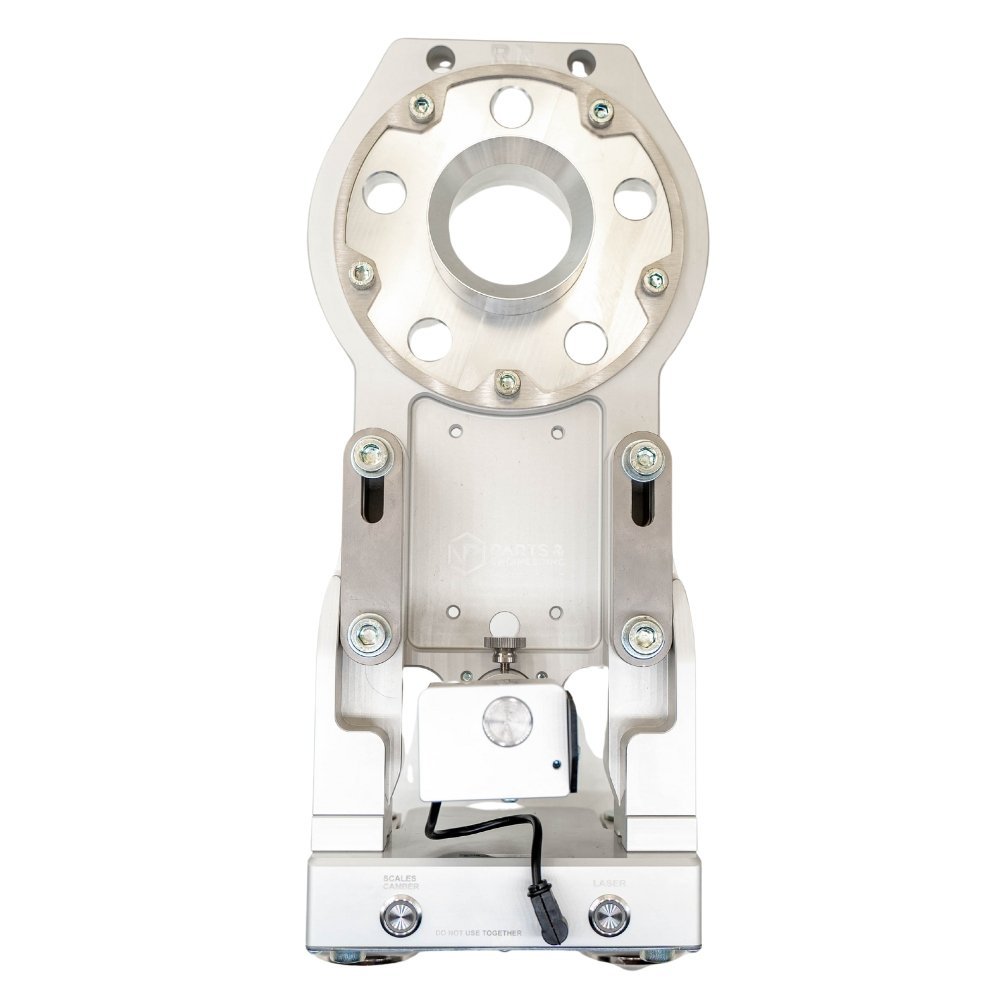

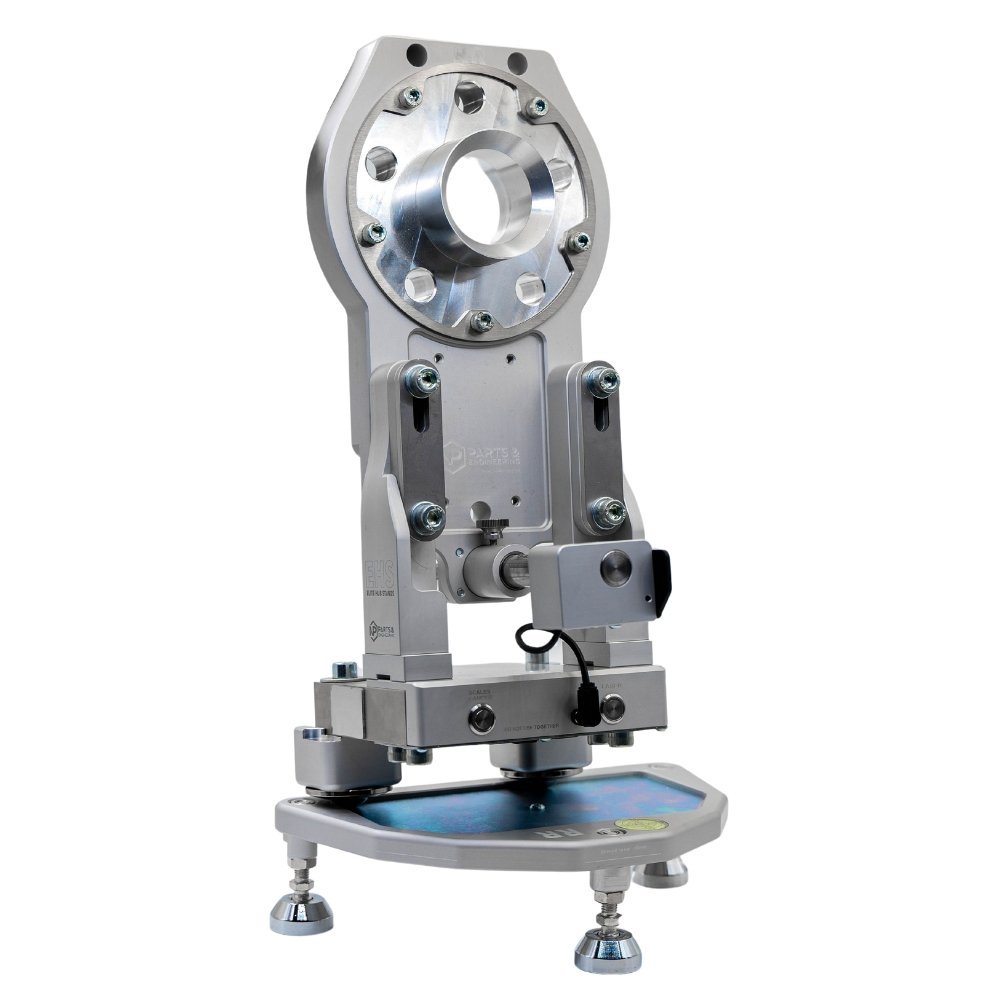

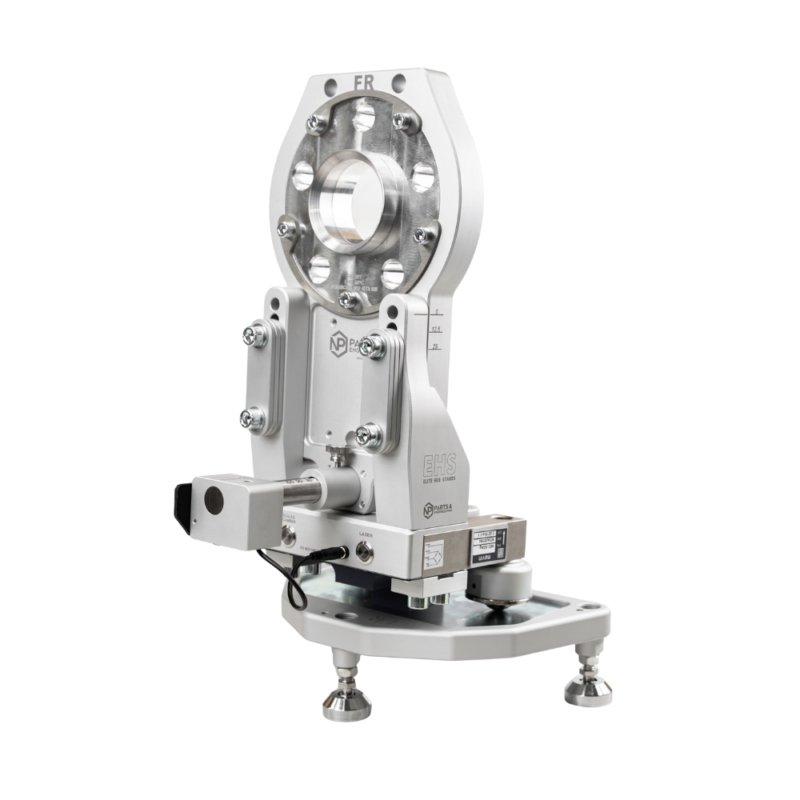

ELITE Hub Stands

Precision-engineered hub stands designed for accurate wheel center referencing and repeatable vehicle setup.

• CNC-machined for maximum precision
• Height (tyre size) adjustability: 325–365 mm
• Offset (ET) adjustable range: +15 mm to –85 mm

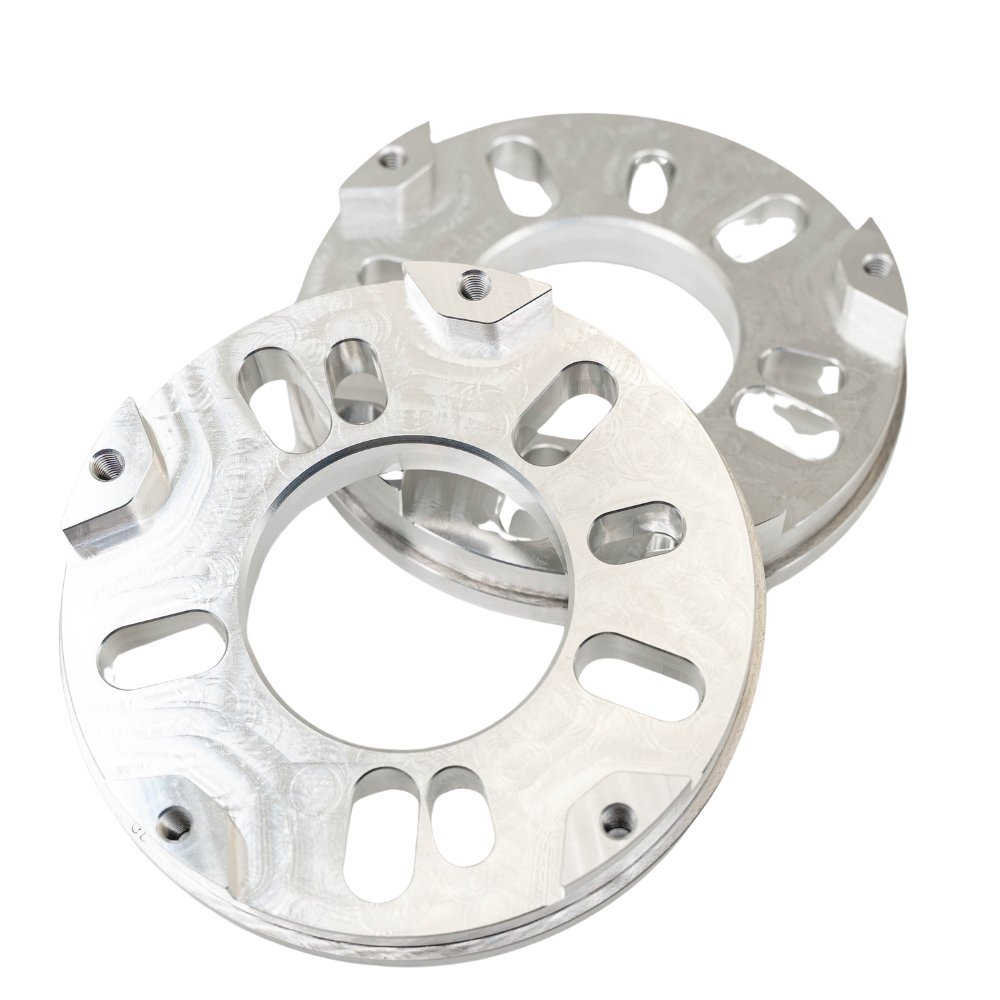

• Interchangeable mounting plate design
• Load transfer bearings for smooth and accurate adjustment
• Safety rating: 500 kg per wheel
• Battery life: Duracell AA 15X Extra Life batteries (included) last up to 10 hours when the lasers are used together with the scales.

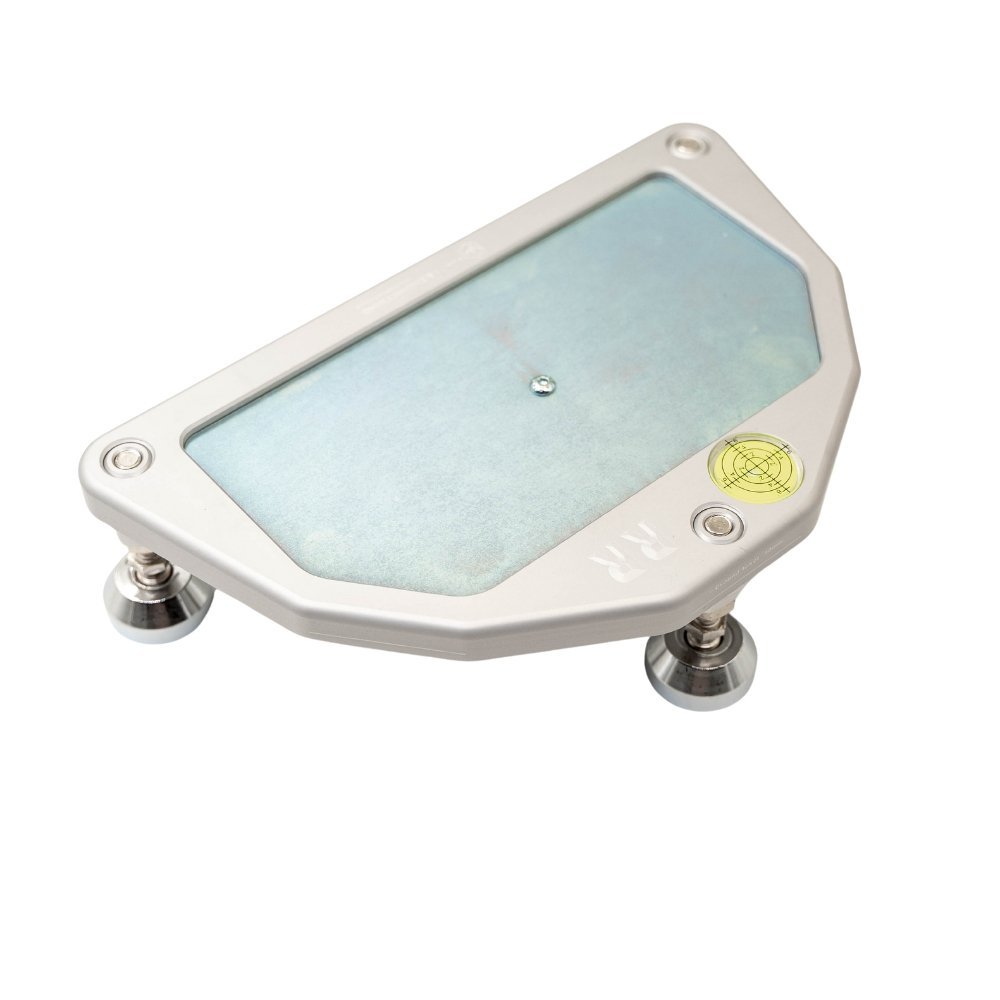

ELITE Base Plates

Robust and adjustable base plates designed to ensure a stable and level reference surface during setup.

• Height adjustability range: 50–145 mm
• Hardox inserts for long service life and resistance to wear

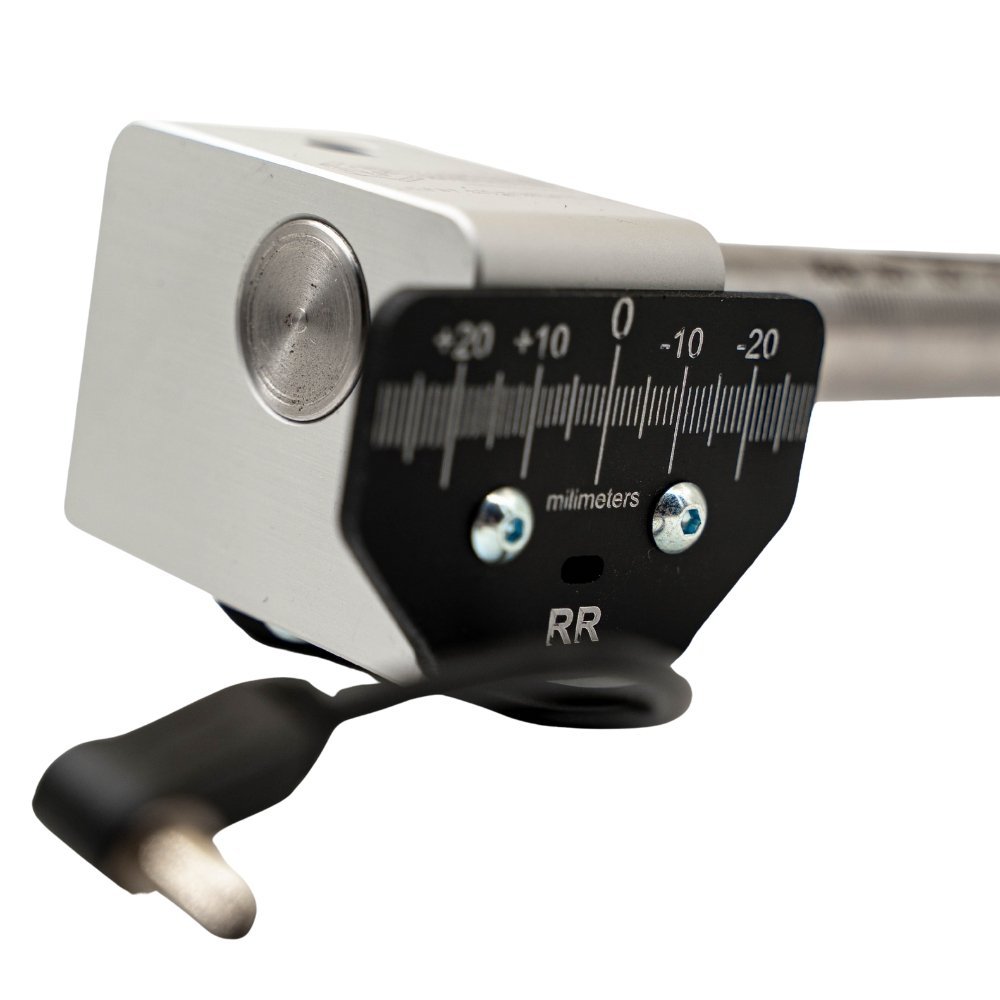

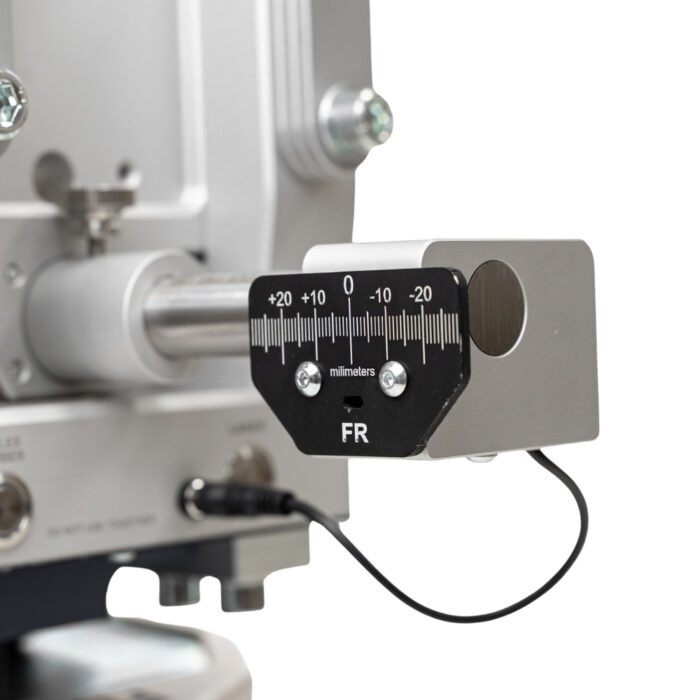

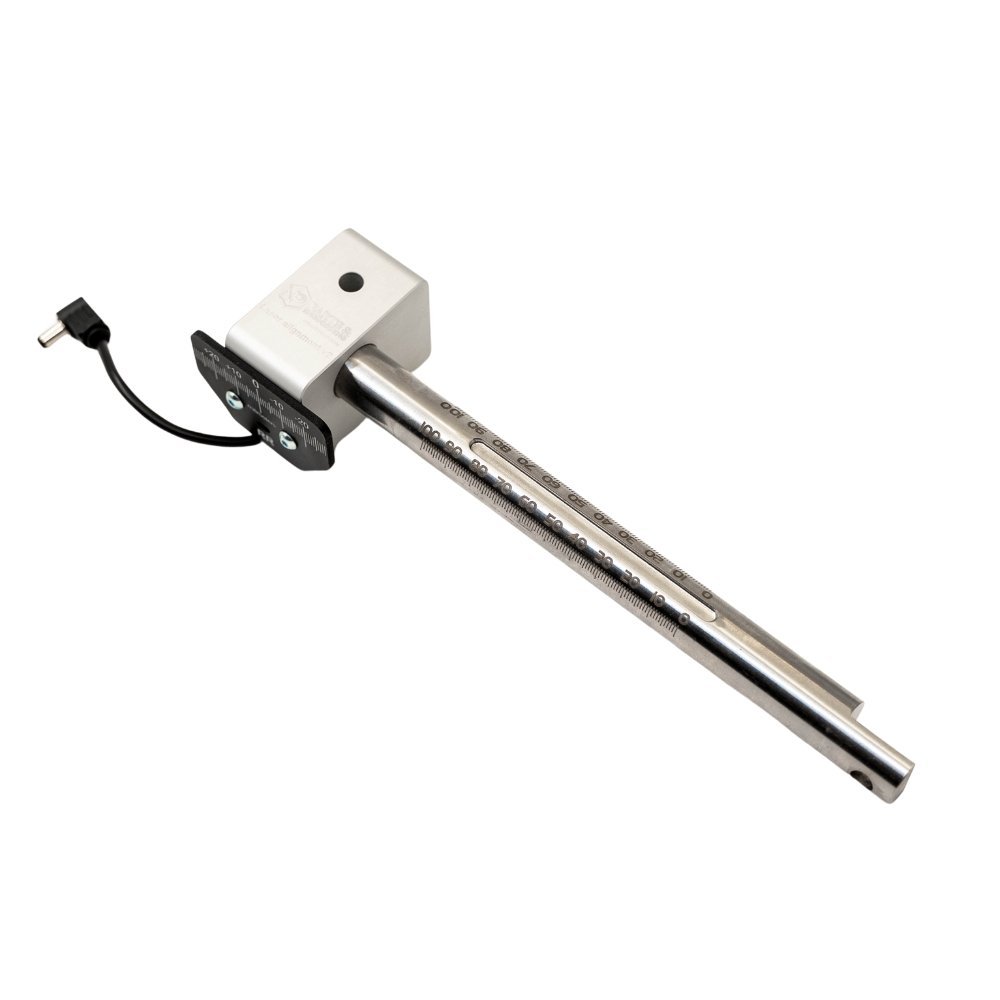

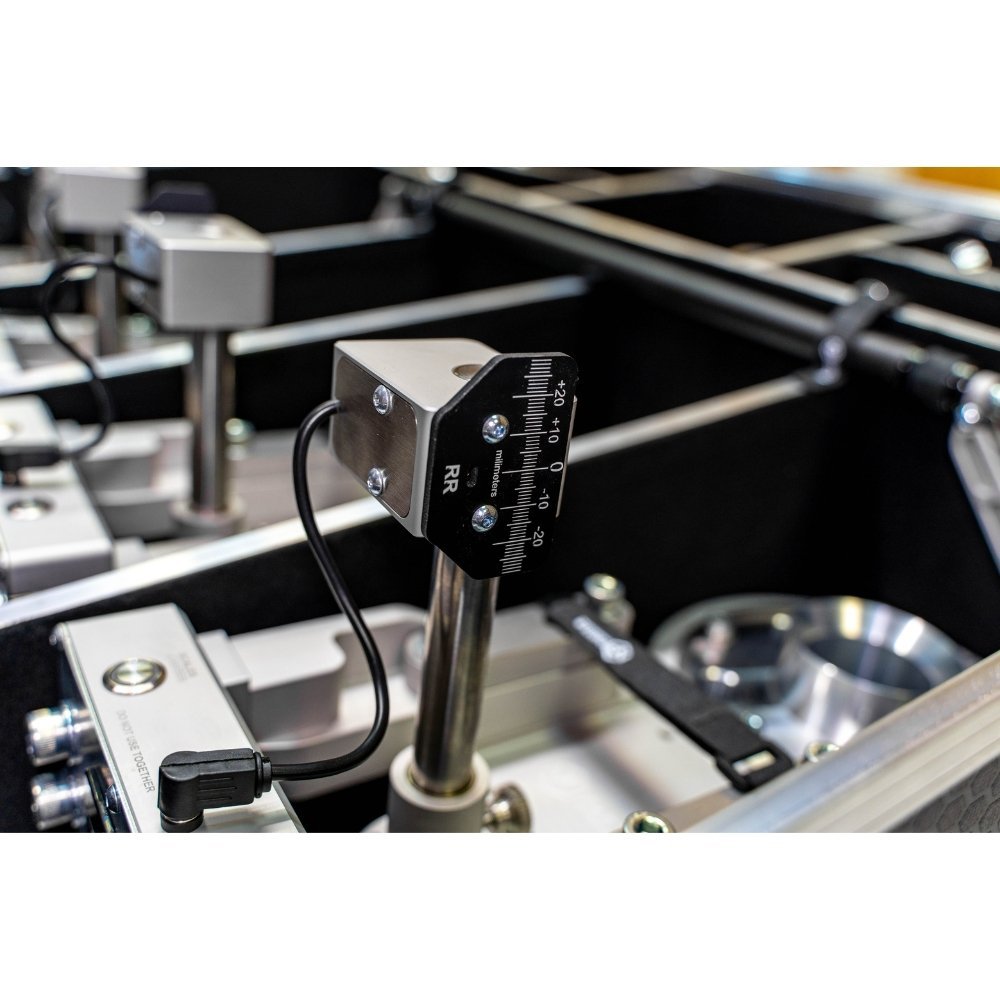

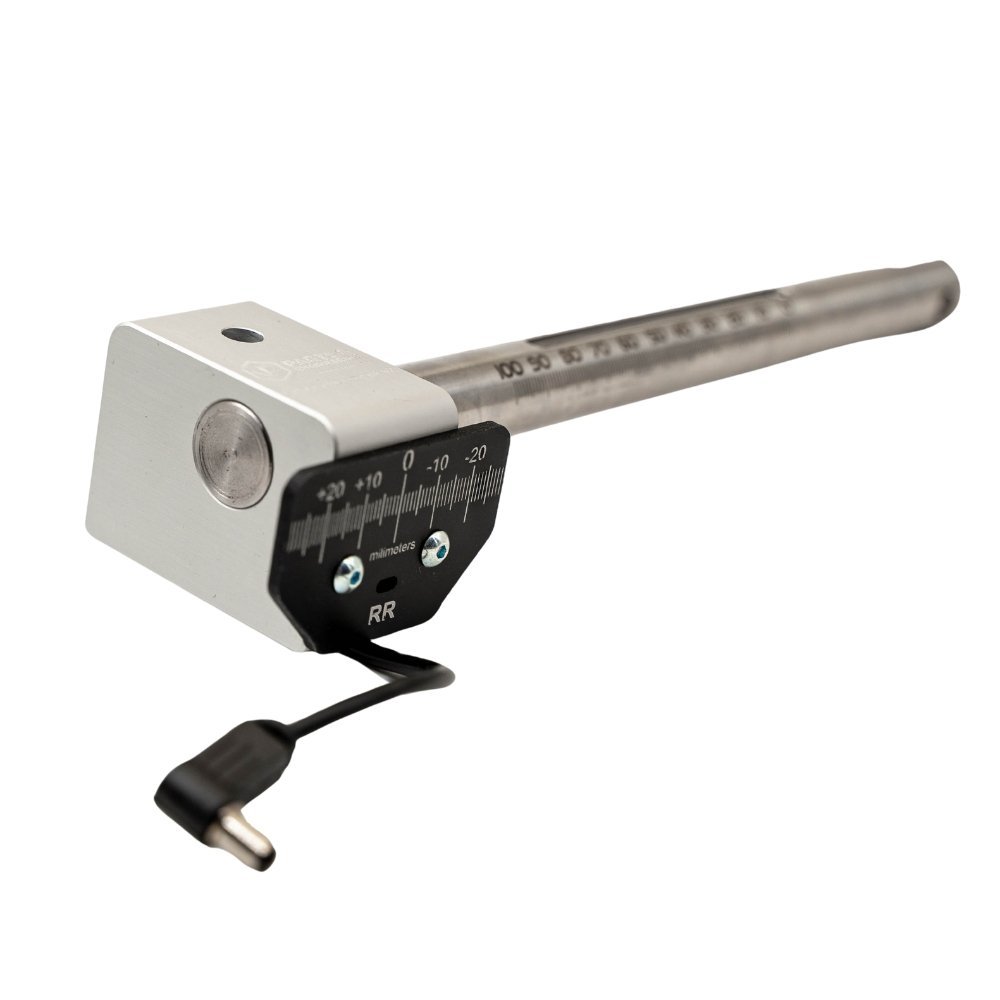

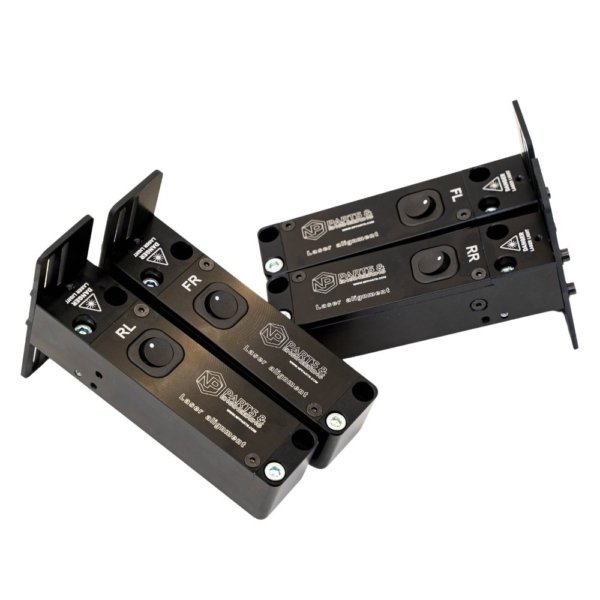

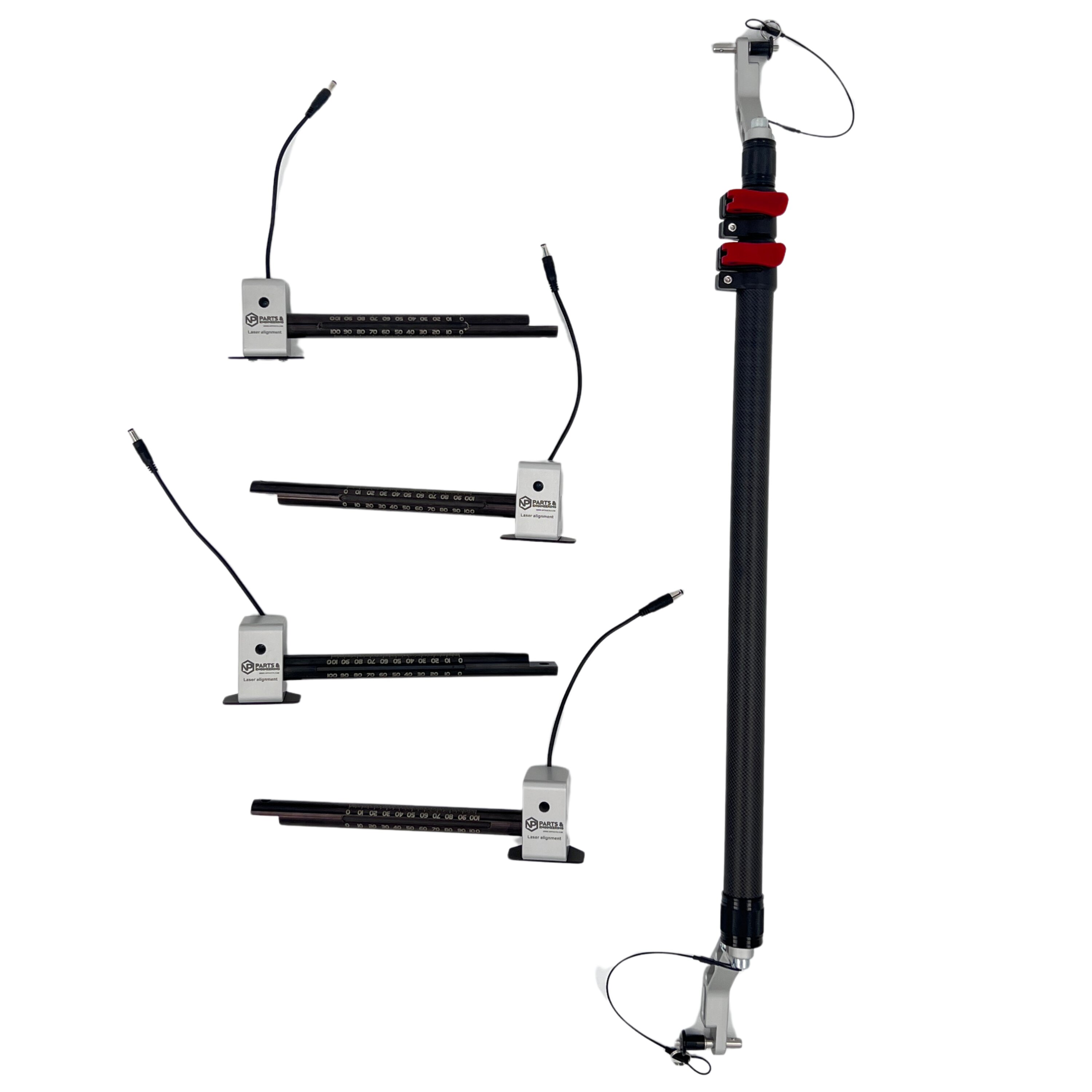

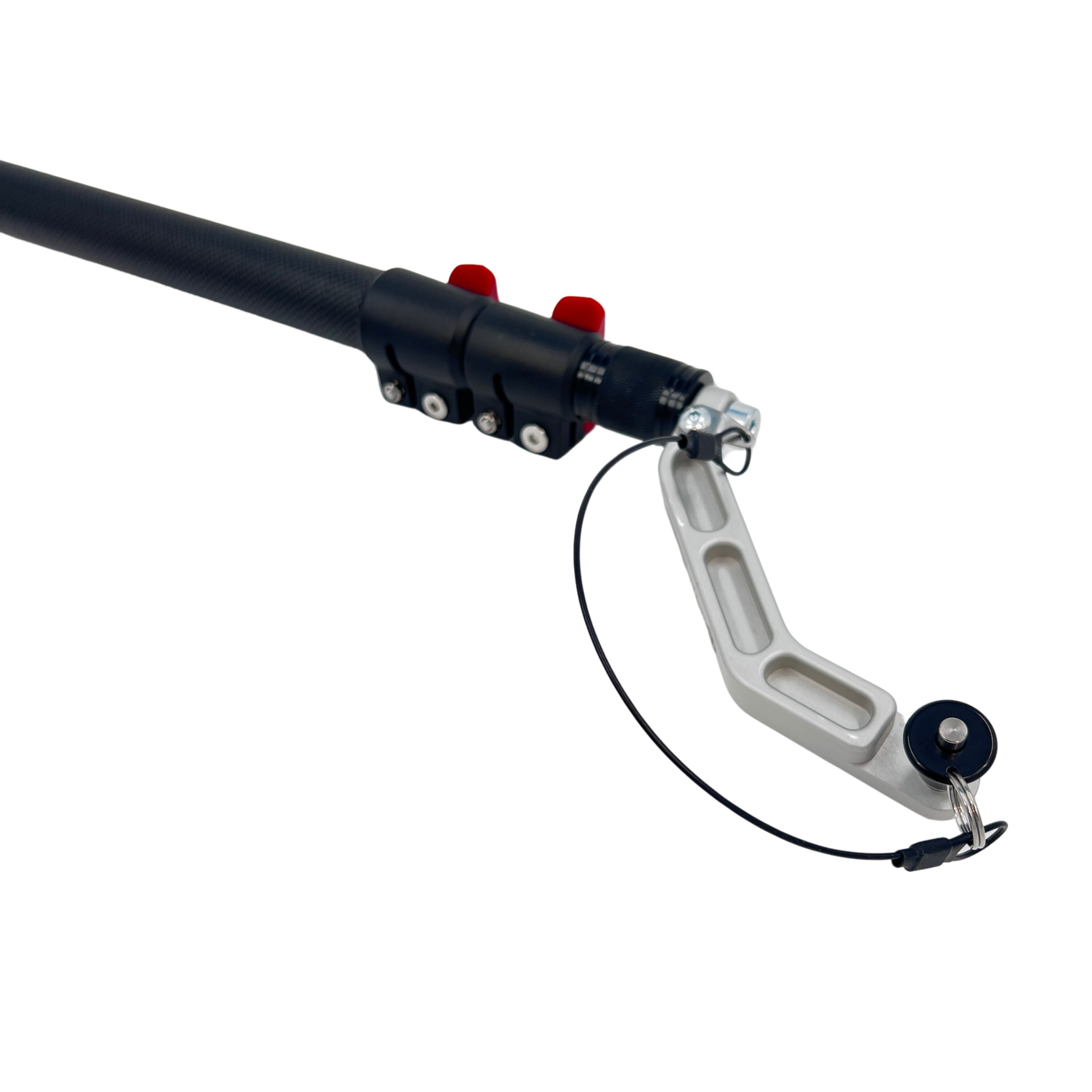

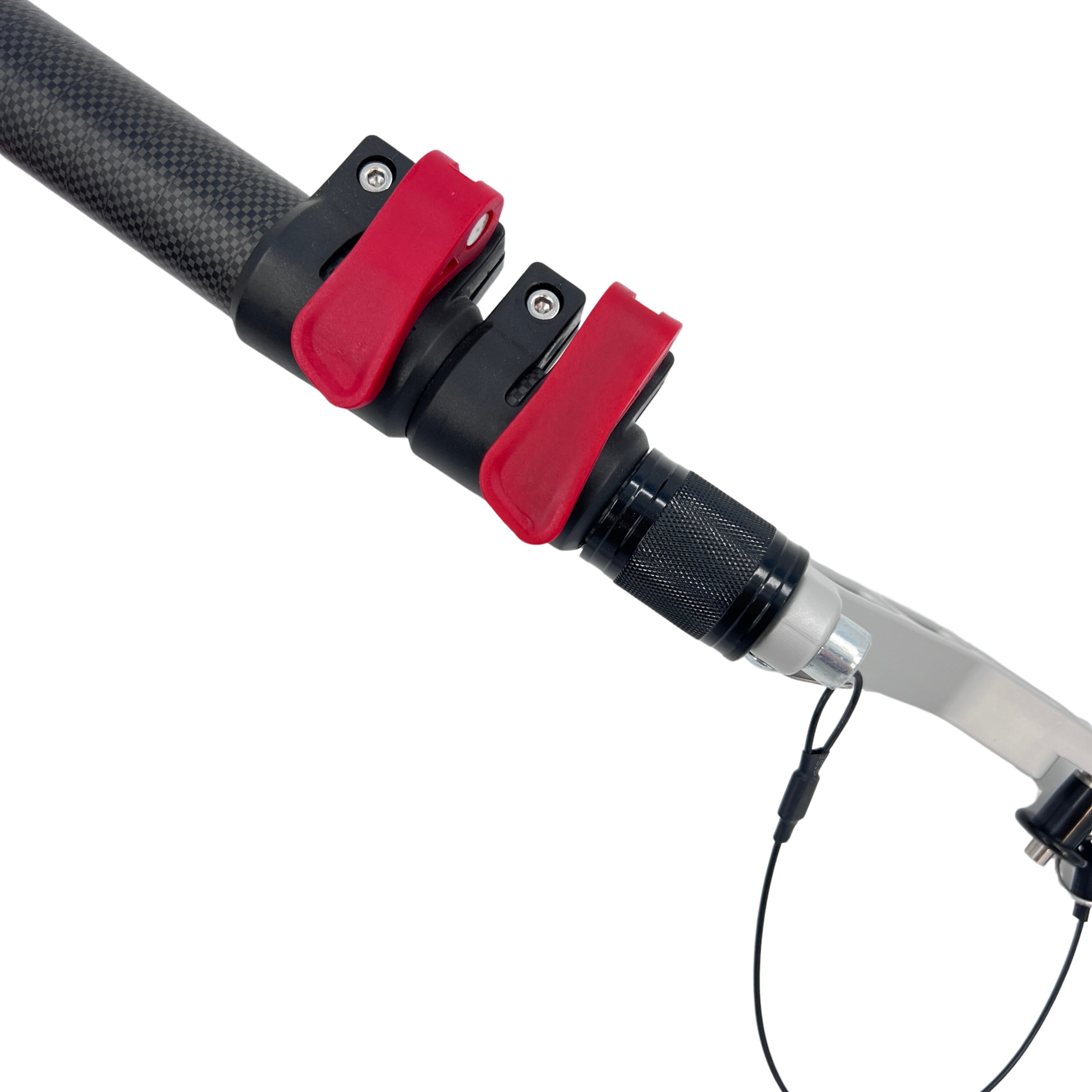

Laser Alignment Kit V2 (Elite Laser Alignment System)

Advanced Elite Laser Alignment System — the highest-precision laser alignment solution in the NP Parts range, exclusive to the ELITE package. Note: the NP Pro hub stand packages use a different, separate laser alignment system. The Elite Laser Alignment System is not compatible with PRO hub stands and offers superior performance for top-level motorsport use.

Fast, accurate, and calculation-free vehicle setup. Track width is set automatically — only manual centering is required.

• No calculations required during setup
• Green high-power 650 nm lasers for clear visibility

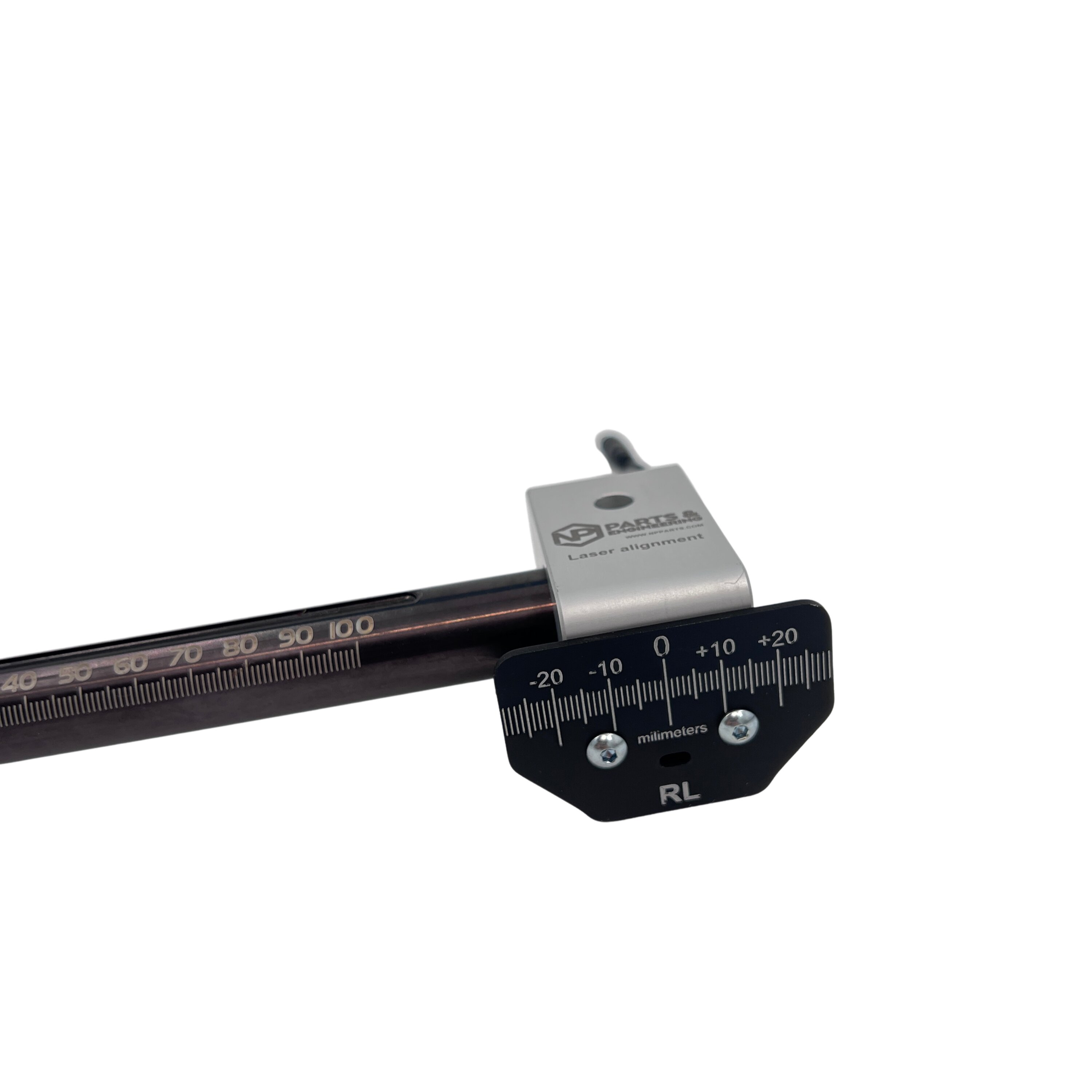

• Targets engraved in millimeters – readings can be converted to your preferred units in the EHS application
• Ability to check laser modules on the spot
• Assembled and calibrated in-house

Scales & Camber Measuring System

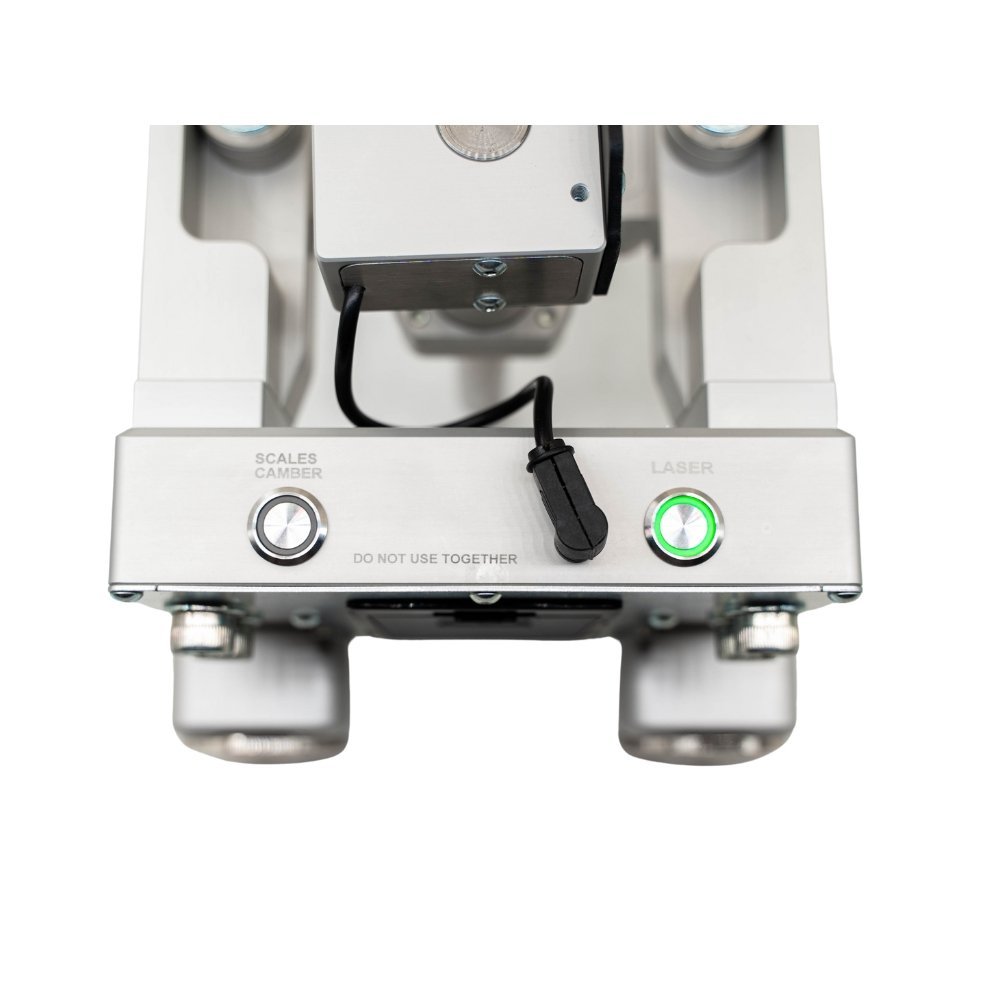

Integrated Bluetooth-connected scales and camber measurement system built directly into the hub stand design.

• Corner weight accuracy: 0.1% — Bluetooth connected, hub stand position does not affect readings
• Camber accuracy: 0.03% — built into the hub stand, no separate gauge required
• Wireless Bluetooth connectivity for streamlined workflow
• Reading stability — with our NP design hub stand position does not impact the readings of the weight, supporting consistent corner-weight results.

Dual Axis Angle Reader

Precision digital angle measurement tool used for base plate level fine tuning during suspension and chassis setup.

Laser Leveling Tool

Used to establish a perfectly level reference when setting up the vehicle, ensuring consistent and repeatable measurements across the entire setup process.

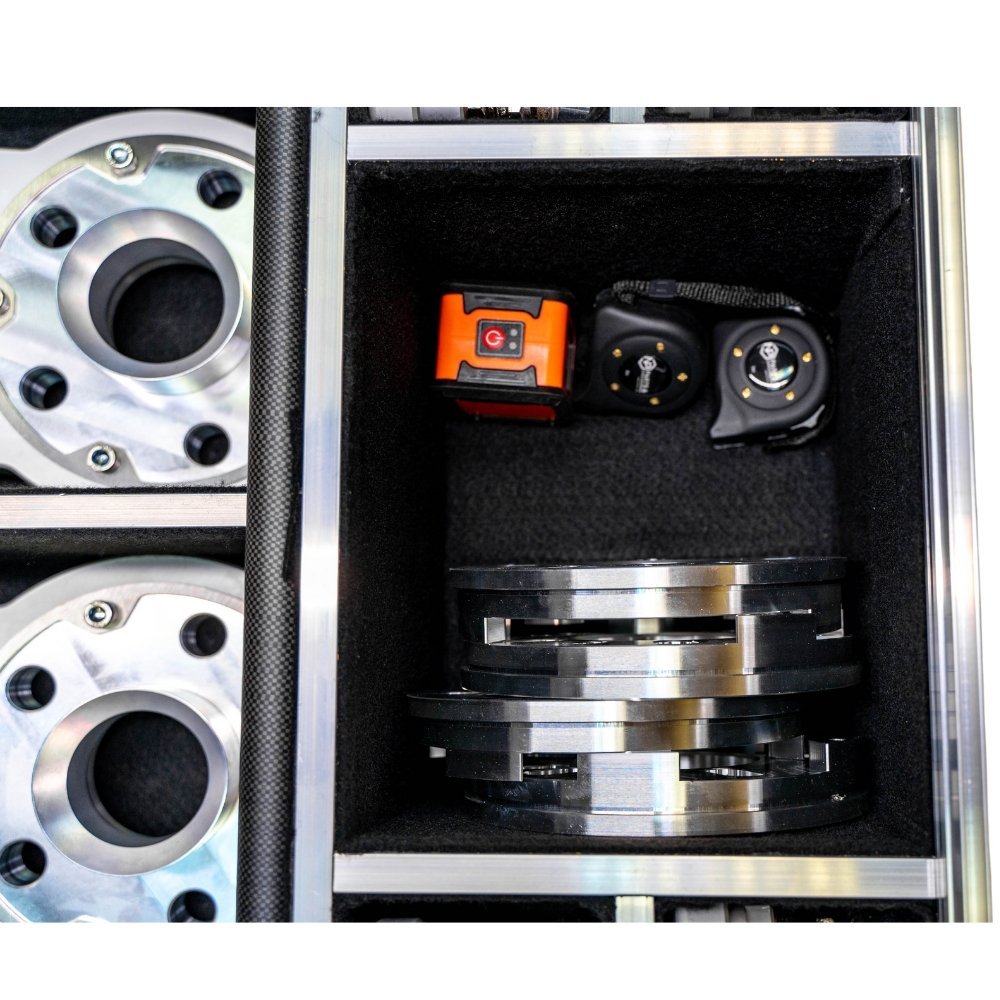

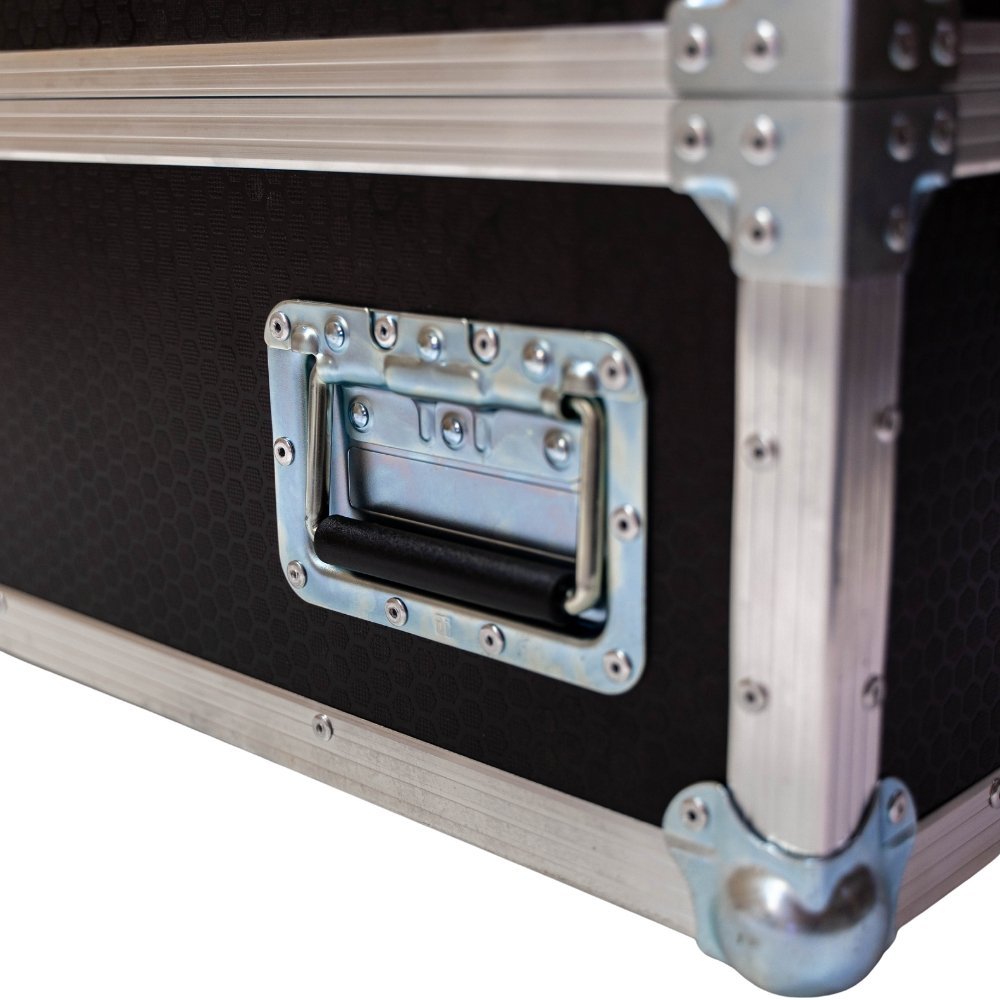

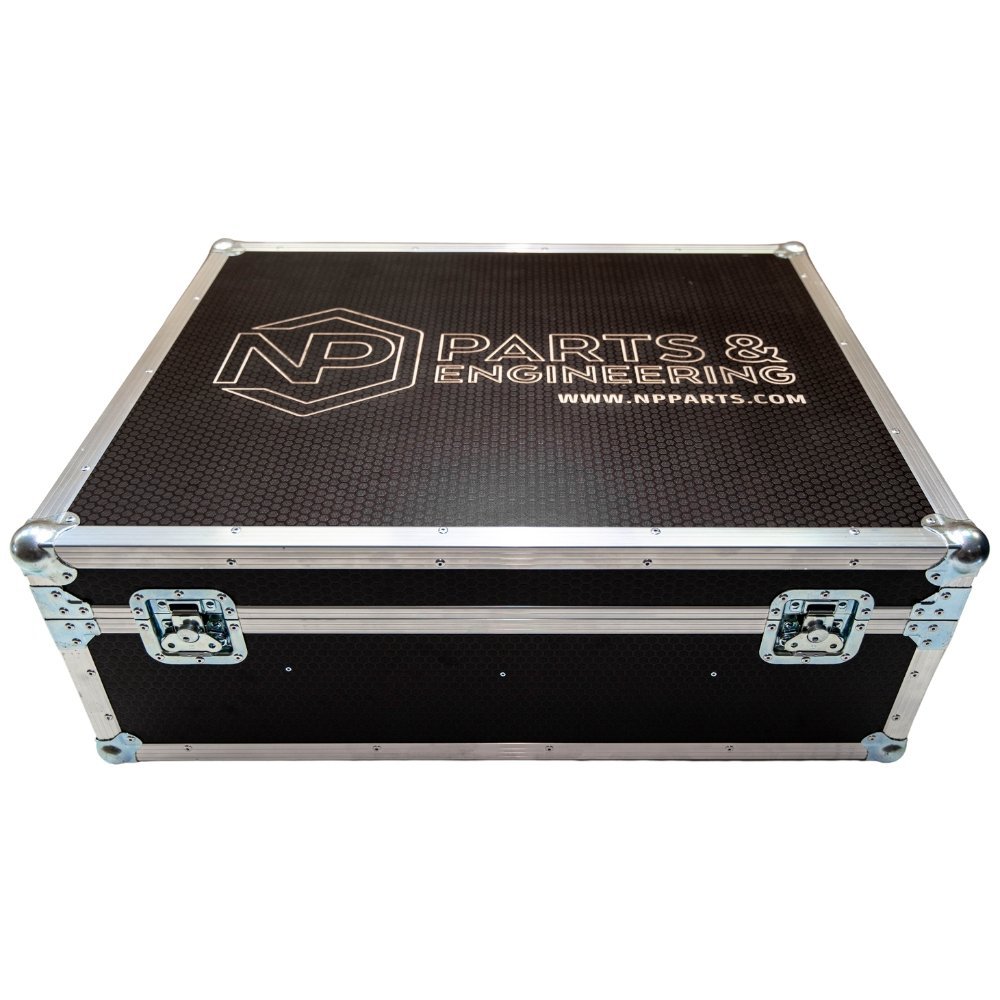

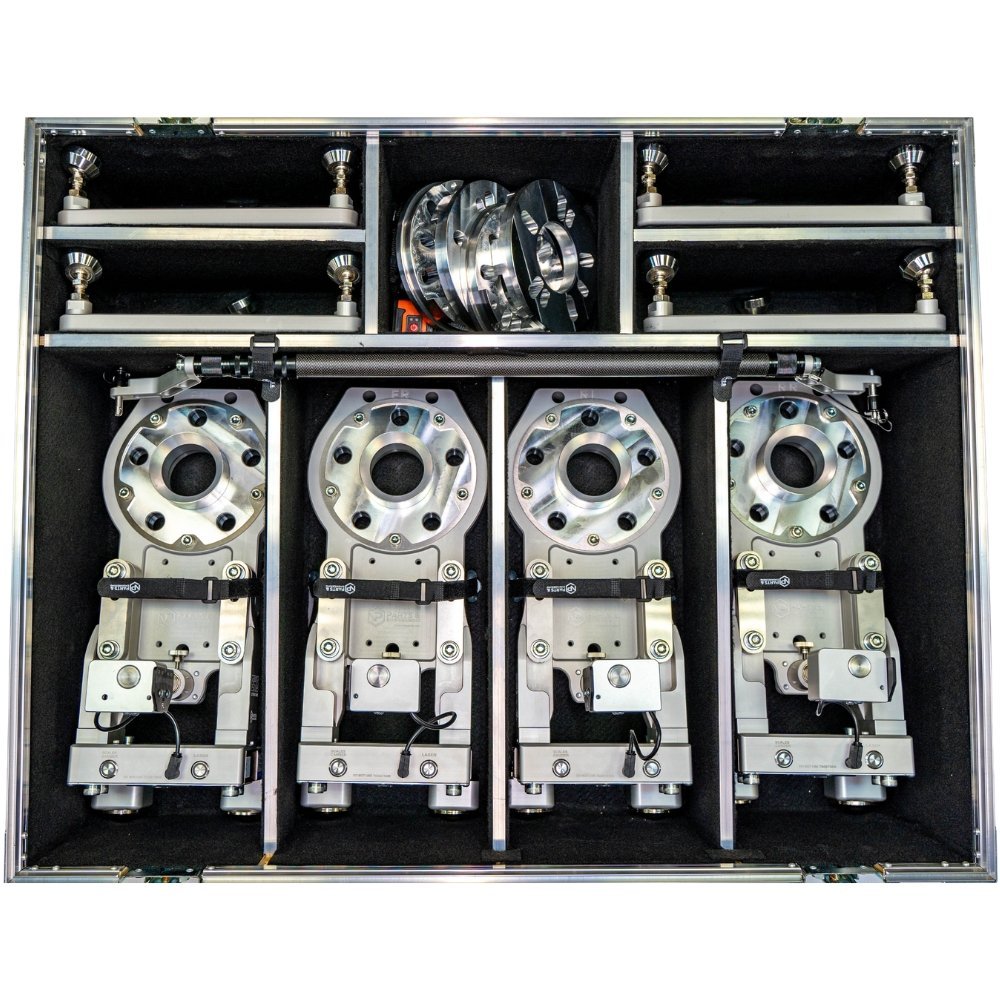

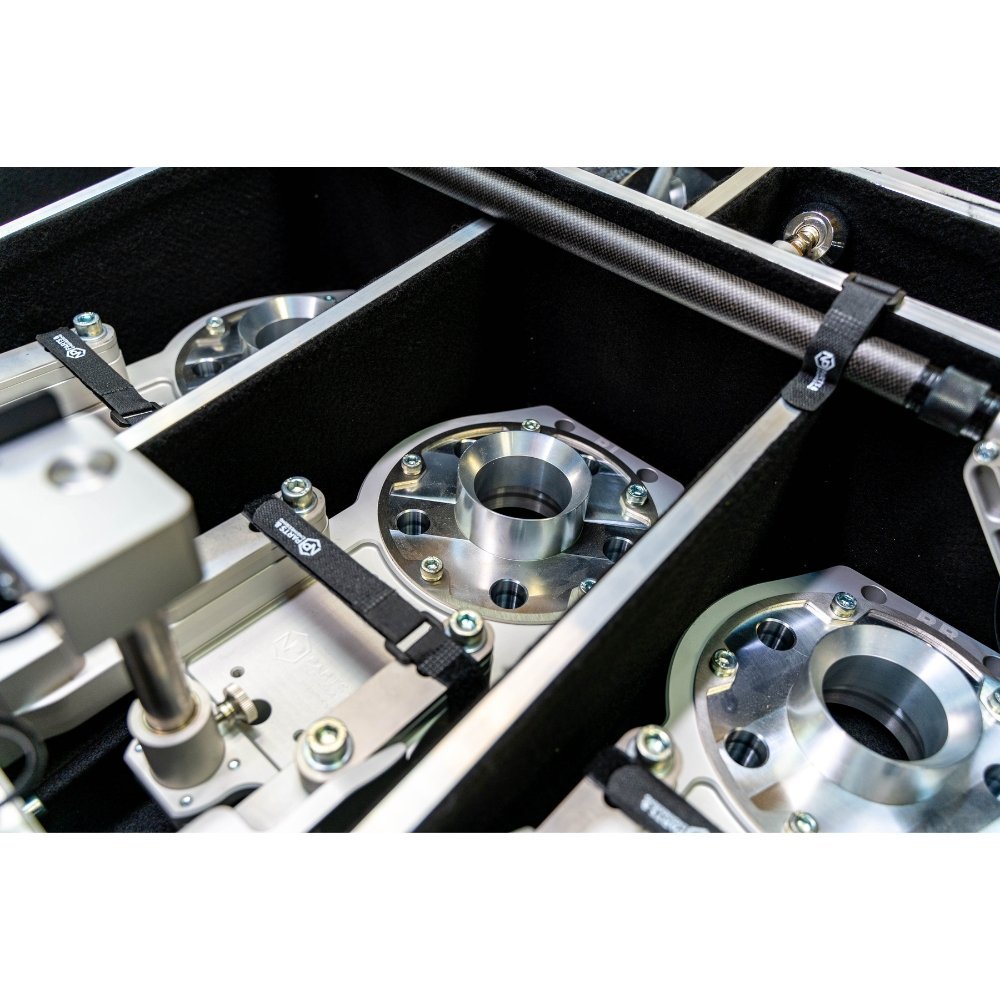

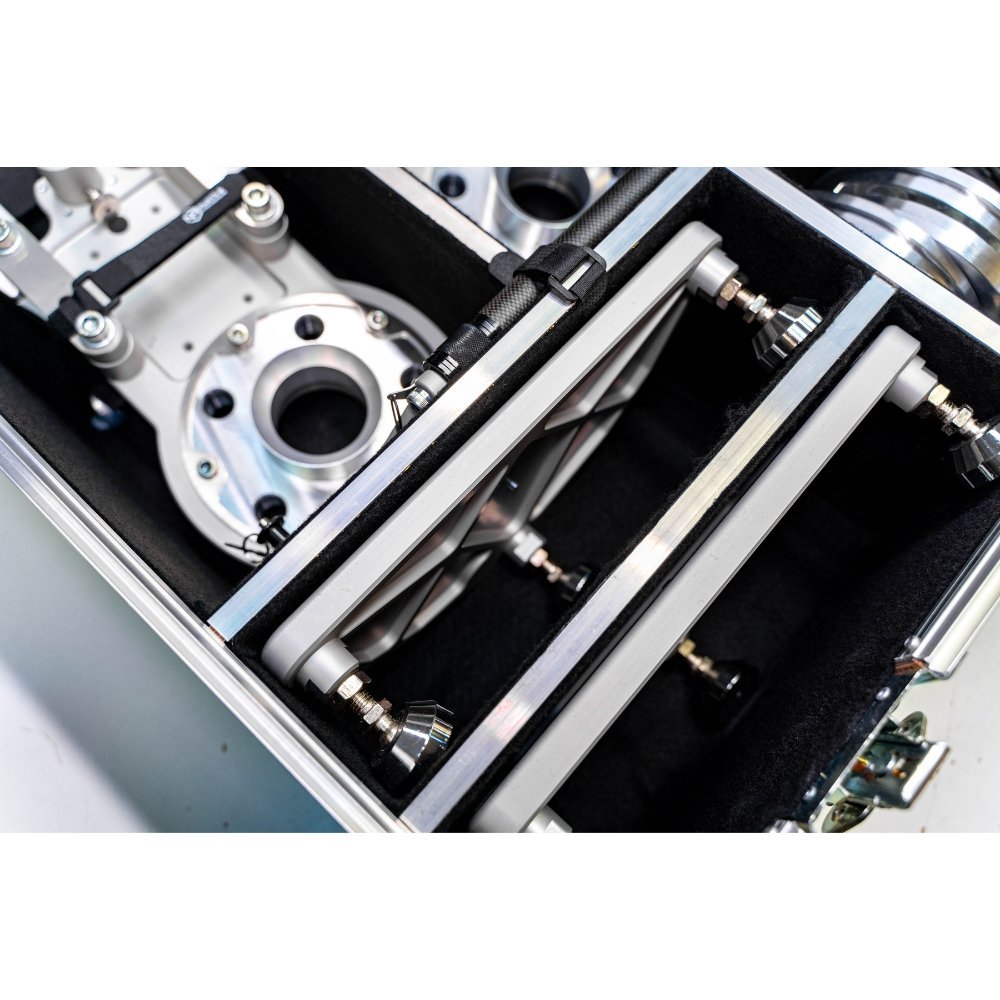

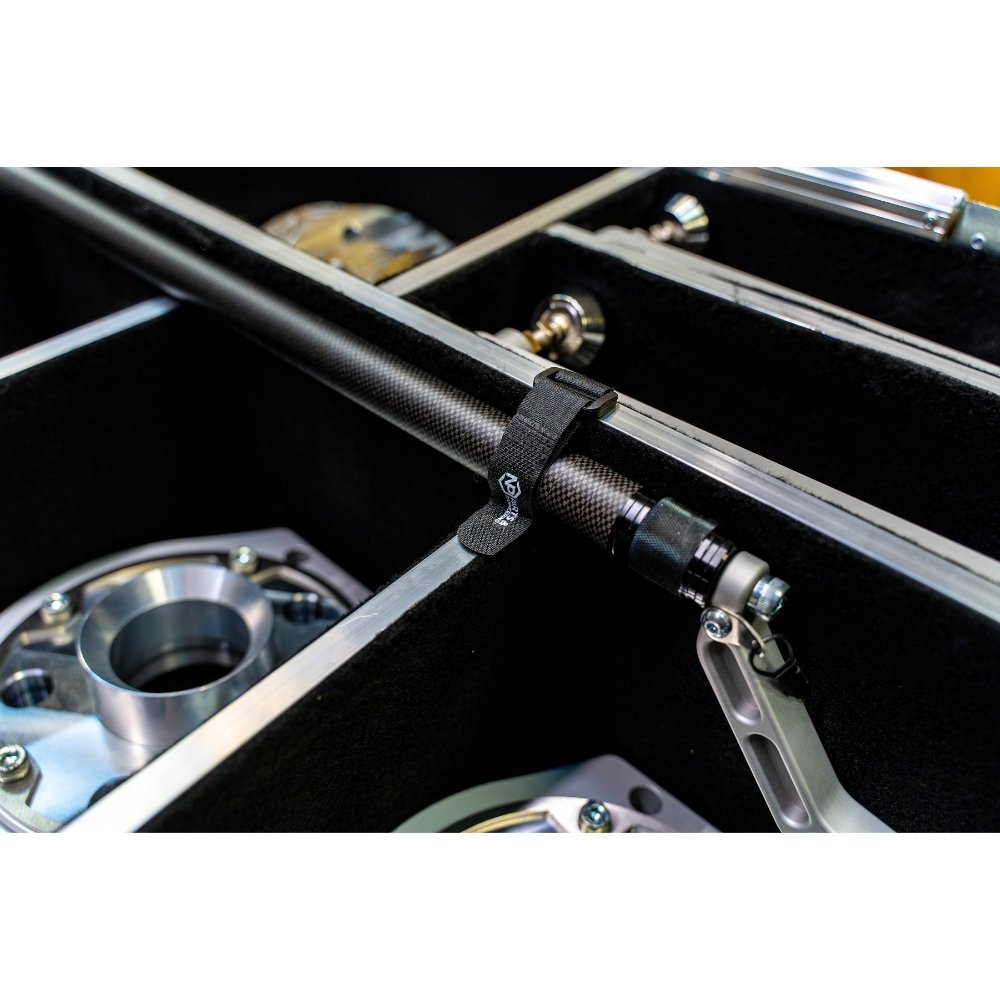

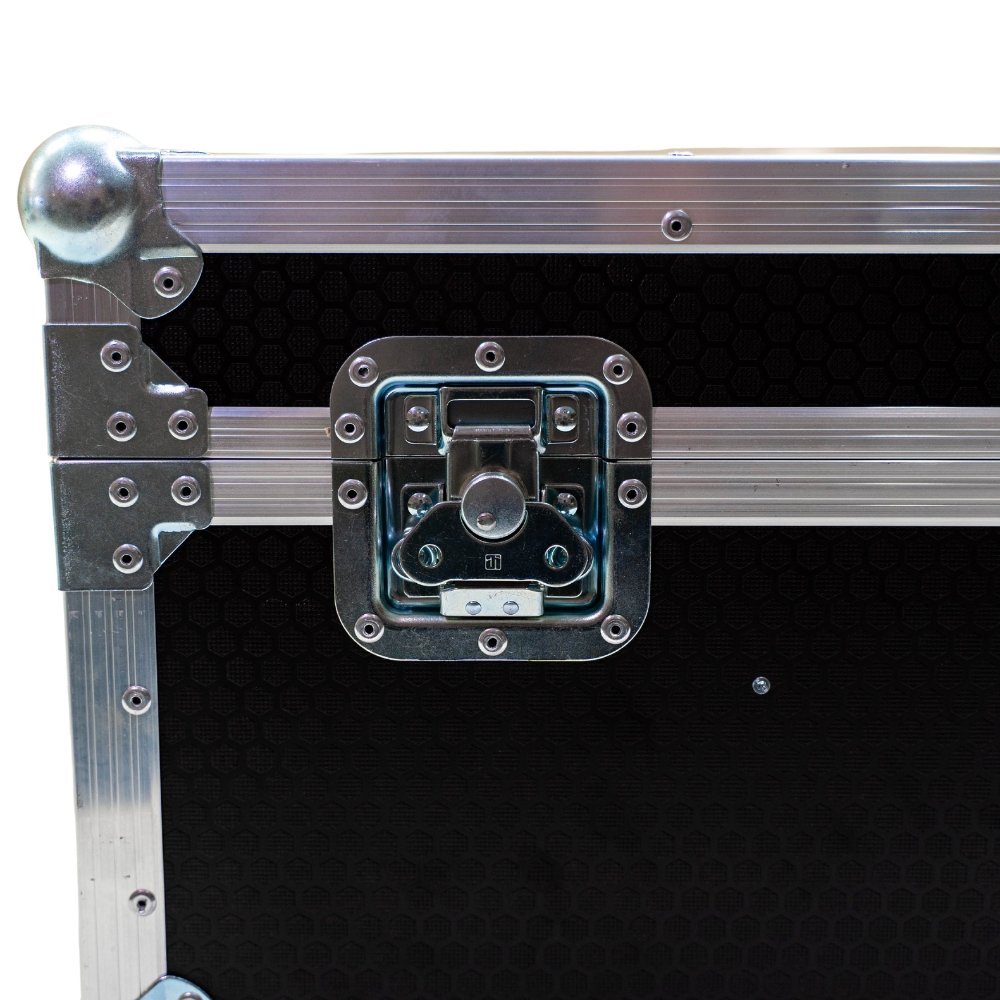

Hard Transportation Case

Heavy-duty transport solution designed to protect and organize all pit equipment.

• Stackable design
• Designed to store all required pit equipment
• Easy and safe transportation
• Case dimensions: 900 × 720 × 320 mm

Materials & Finish

• Material: 6082 T6 Aluminum
• Finish: Anodized – Silver

Manufacturing & Quality

All components are designed and machined in-house in Lithuania, ensuring full quality control, precision manufacturing, and professional motorsport-grade reliability.

Measurement Capabilities

• Corner weight measurement — Bluetooth-connected scales with 0.1% accuracy, hub stand position does not affect readings
• Camber measurement — built into the hub stand with 0.03% accuracy, no separate gauge required
• Toe measurement — using the Elite Laser Alignment System with 650 nm green lasers
• Caster measurement — using the dual-axis digital angle reader
• Ride height measurement — laser leveling tool and measuring tape

Intended Use

• Trackside and pit-lane vehicle setup for race teams.
• Performance workshops vehicle setup tool.
• Corner-weighting and balance checks using the integrated scales system.
• Camber measurement using integrated precise camber sensors.
• Laser alignment using the Elite Laser Alignment System for fast and repeatable wheel alignment checks.

Vehicle Compatibility

The NP Elite Car Setup Package is universal — compatible with all motorsport and performance vehicle categories, including:

• Circuit racing: GT3 (AMG GT3, Ferrari 296 GT3, Porsche 911 GT3, Lamborghini Huracan GT3, McLaren 720S GT3, Audi R8 LMS GT3, BMW M4 GT3, Aston Martin Vantage GT3), GT4, LMP, TCR, F3, F4
• Rally: full support for rally car geometry measurement and setup
• Cup cars: Porsche GT3 Cup, Ferrari 296 Challenge, and similar
• Street performance: high-performance road cars and track day vehicles
• Professional workshops: universal adapters available to cover a wide range of PCD and hub configurations

Universal adapter kits are available, making the ELITE system one of the most versatile hub stand solutions on the market — suitable for any team, workshop, or series.

Pricing & VAT

All prices are shown excluding VAT. VAT is applied at checkout based on your billing country.

TUTORIAL VIDEO

Why Choose the Elite Car Setup Package

Most teams combine tools from several suppliers and lose time making them work together. The Elite Car Setup Package is designed as one system, so stands, scales, plates and laser work together from day one.

• All-in-one – corner weights, camber and alignment.
• 500 kg per wheel safety rating.
• Made in Lithuania – machined and calibrated in-house.

How the Elite Car Setup Package Works

The car sits on hub stands, so tyres no longer affect the readings. The scales measure each corner, the camber system reads angles, and the laser kit sets toe. Read more about wheel alignment. Already own scales? See the Elite package without scales.

Who Is the Elite Car Setup Package For?

The Elite Car Setup Package is built for professional GT teams, race engineers and workshops that set up cars every week. The Elite Car Setup Package saves time at every event, because one crew member can measure corner weights, camber and toe without moving the car. If you want the highest precision in the NP Parts range, the Elite Car Setup Package is the right choice.

Elite Car Setup Package FAQ

What is included?

Elite hub stands, Bluetooth scales, camber measurement, Laser Alignment Kit V2 and Elite base plates.

Which cars is the Elite Car Setup Package for?

GT3 and other race cars – choose your model in the options.

Are prices shown with VAT?

No, all prices are excluding VAT.
