NP Pro Car setup package (Laser)
Price range: 2,980.00 € through 3,310.00 €
The NP Pro Car Setup Package (Laser) is a complete, portable suspension geometry system for professional motorsport use. CNC-machined from 6082-T6 aluminium in Lithuania, it includes hub stands with leveling base plates, a high-precision laser alignment kit, digital dual-axis angle reader, base leveling plate raisers, laser leveling tool, and an aluminium transport case. Supports toe, camber, caster, and ride height measurement. Adjustable height (35 mm) and wheel offset (+12 to –50). Compatible with brake discs up to 380 mm. Available in Custom (4–5 lug), Universal, and Centerlock from €2,980 excl. VAT.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NP Pro Car Setup Package (Laser)
The NP Pro Car Setup Package (Laser) is a complete, professional-grade suspension geometry measurement and alignment system built around CNC-machined hub stands, a high-precision laser alignment kit, and integrated measurement tools. Designed for race engineers and professional workshops, this package provides everything needed to measure and adjust toe, camber, caster, and ride height with consistent, repeatable accuracy. All components are precision-machined from 6082-T6 aluminium and assembled in Lithuania, EU.
The NP Pro Car Setup Package is suited to circuit racing teams, rally preparation specialists, and serious track-day operators who require workshop-level geometry accuracy without fixed alignment ramp infrastructure. The system is compact, fully portable, and housed in a dedicated aluminium transport case.
Key Features & Benefits
- CNC machined from 6082-T6 aluminium – high-strength, corrosion-resistant alloy chosen for precision machining tolerances and long service life in workshop environments
- High-precision laser alignment system – enables accurate toe measurement across the full axle using consistent optical reference points, reducing setup time and human error
- Digital dual-axis angle reader – provides simultaneous camber and caster measurement without additional tools or guesswork
- Adjustable height range of 35 mm – accommodates varying ride heights across different vehicle configurations and suspension setups
- Wheel offset adjustment from +12 to –50 – interchangeable mounting plates allow the NP Pro Car Setup Package to fit a wide range of wheel bolt patterns and offsets
- Load transfer bearings – reduce friction at the hub interface during measurements, ensuring accurate toe readings unaffected by lateral binding
- Compatible with brake discs up to 380 mm – fits without modification, covering the majority of circuit and rally-spec applications

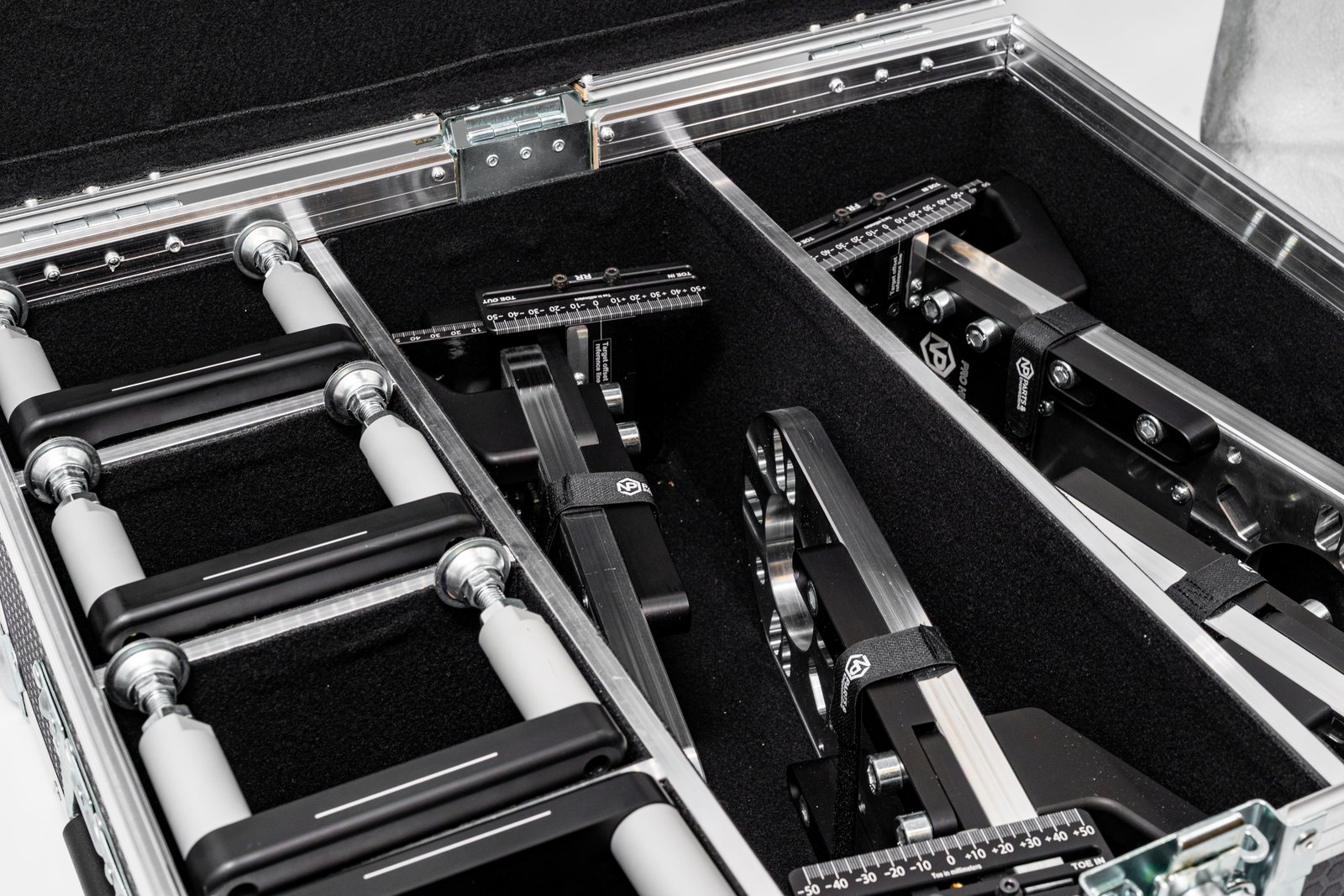

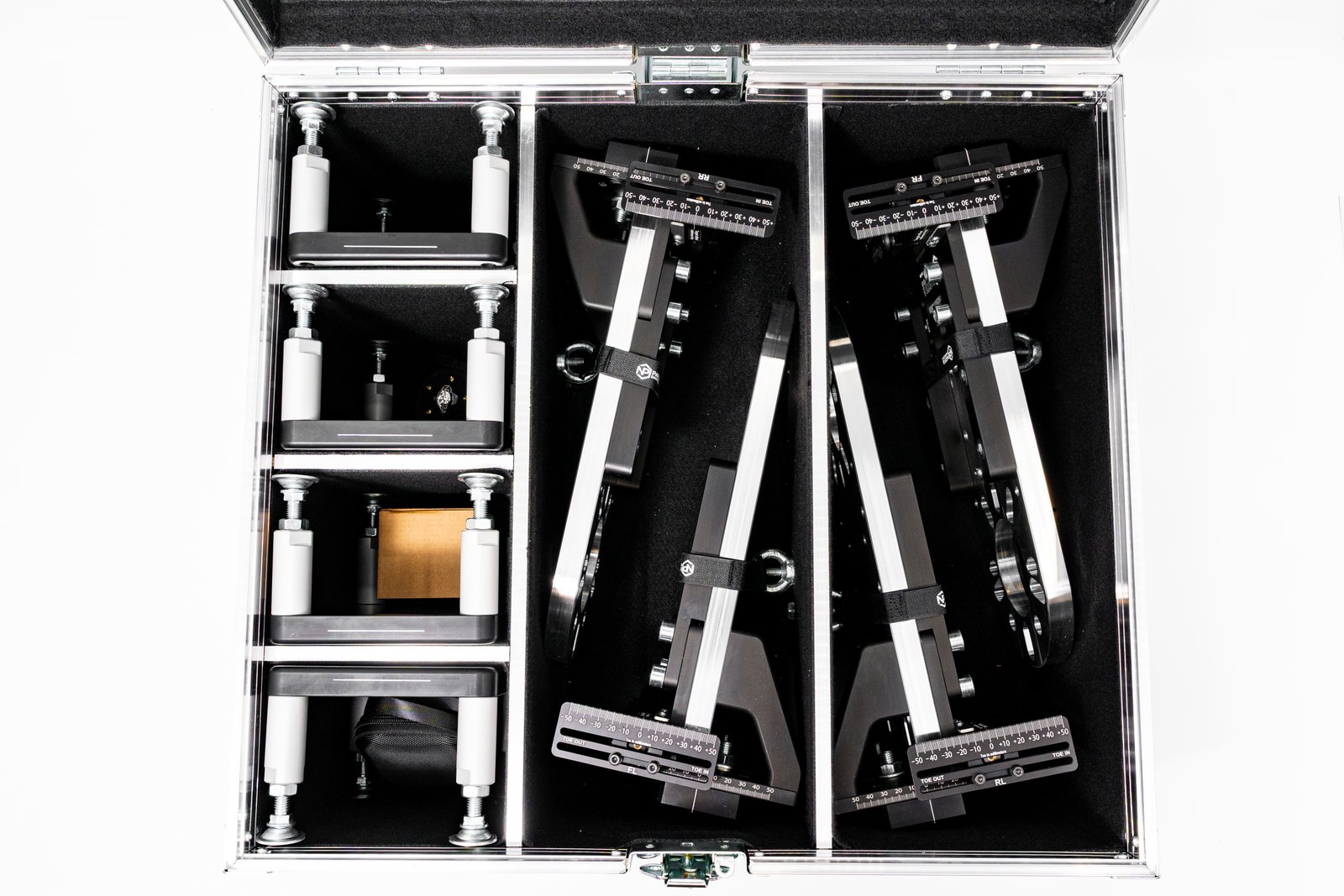

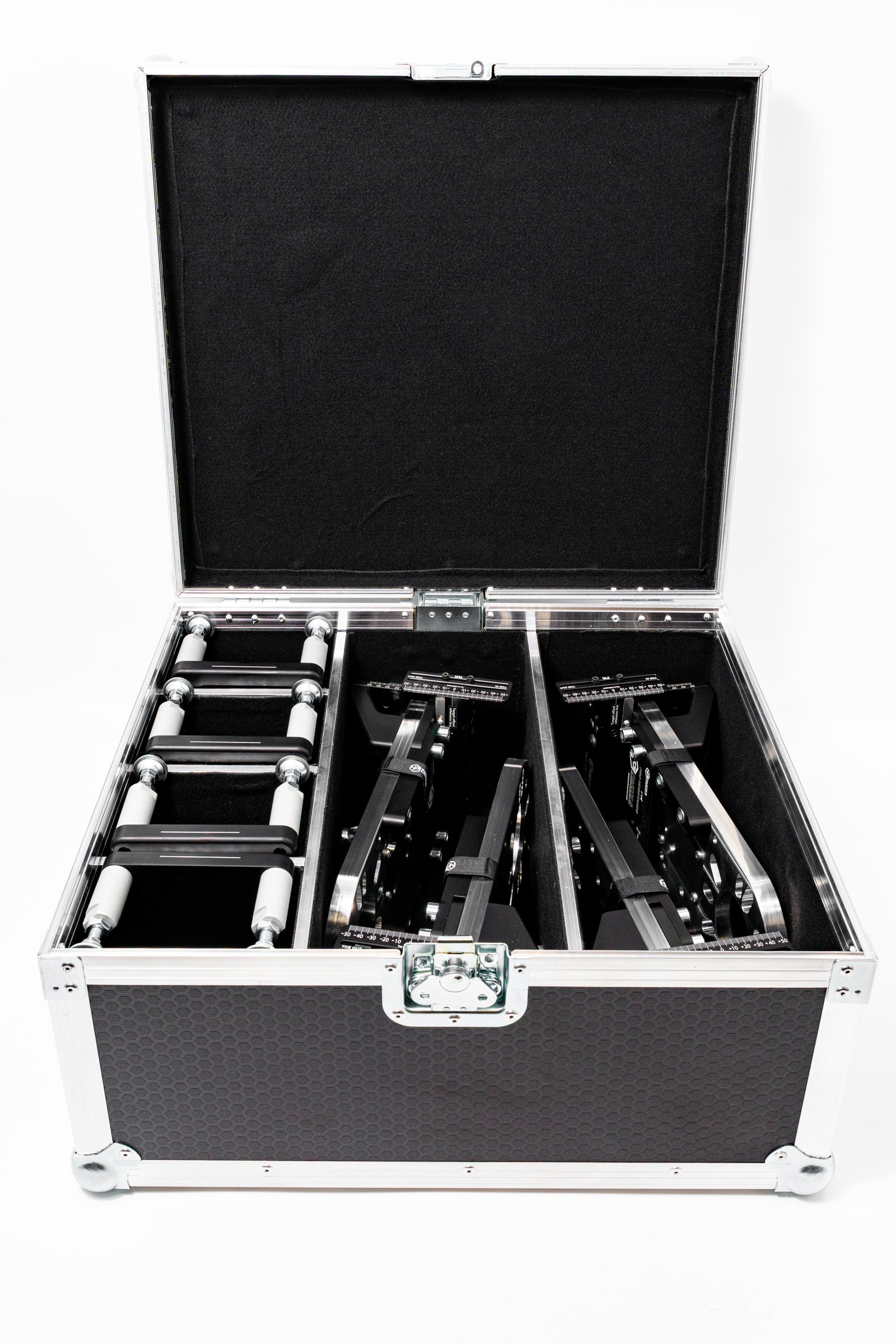

- Compact aluminium transport case with foam inserts – protects all components during transit and makes the system fully self-contained for trackside use
- Custom mounting plates available on request – extends compatibility to specialist or non-standard hub configurations
- Manufactured and assembled in the EU (Lithuania) – consistent quality control and traceability
Available Options & Pricing
The NP Pro Car Setup Package (Laser) is available in three configuration variants to match different hub and wheel mounting requirements.
- Custom (4–5 lug) – from €2,980
- Universal – from €3,110
- Centerlock – from €3,310
All prices are shown excluding VAT.
Kit Contents

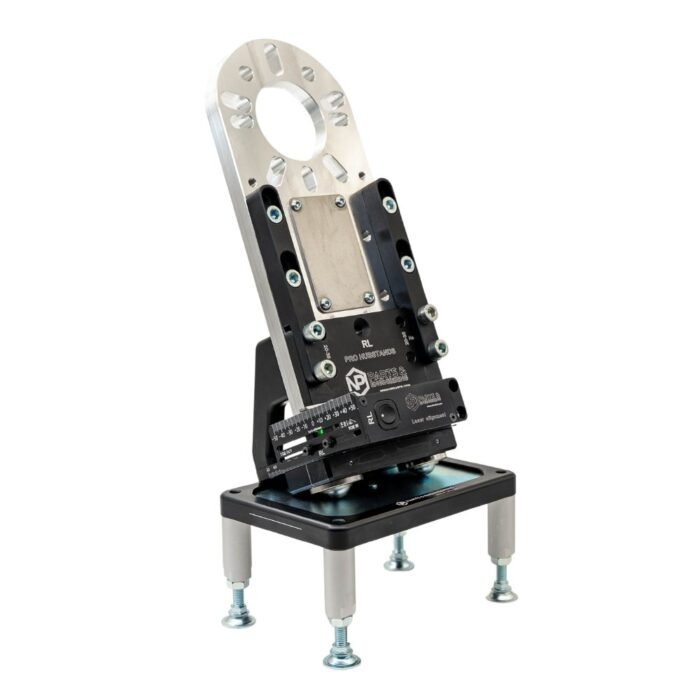

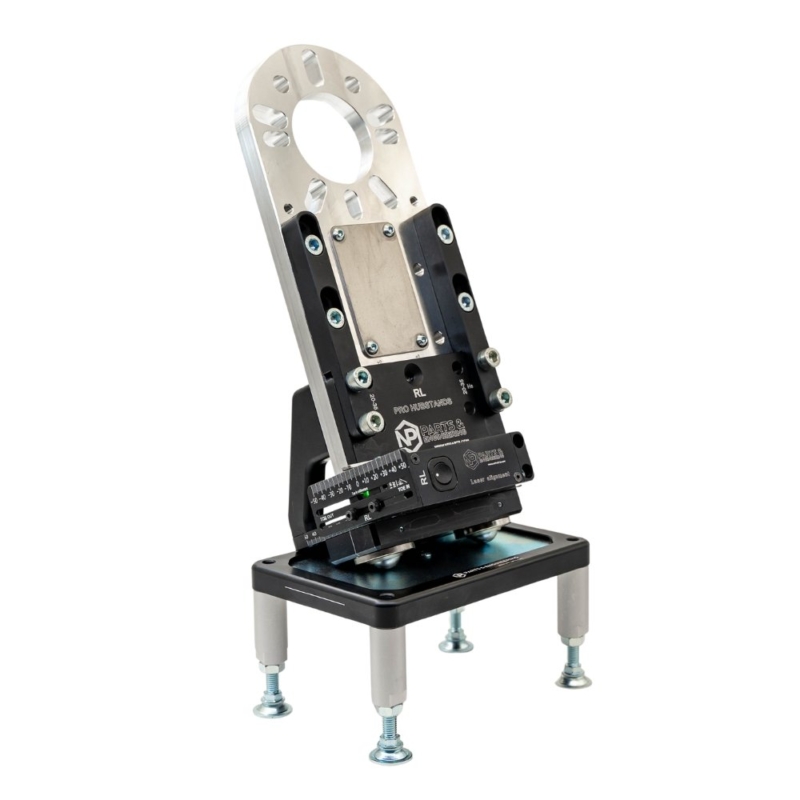

- Custom NP Pro hub stands with leveling base plates

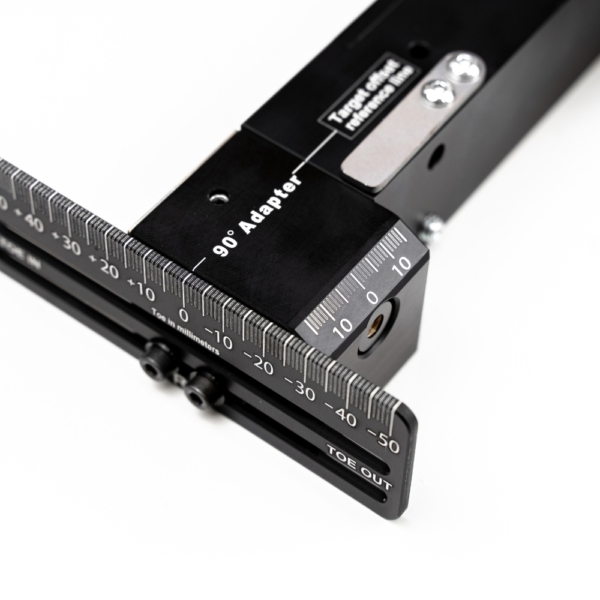

- NP Laser alignment kit
- Digital dual-axis angle reader

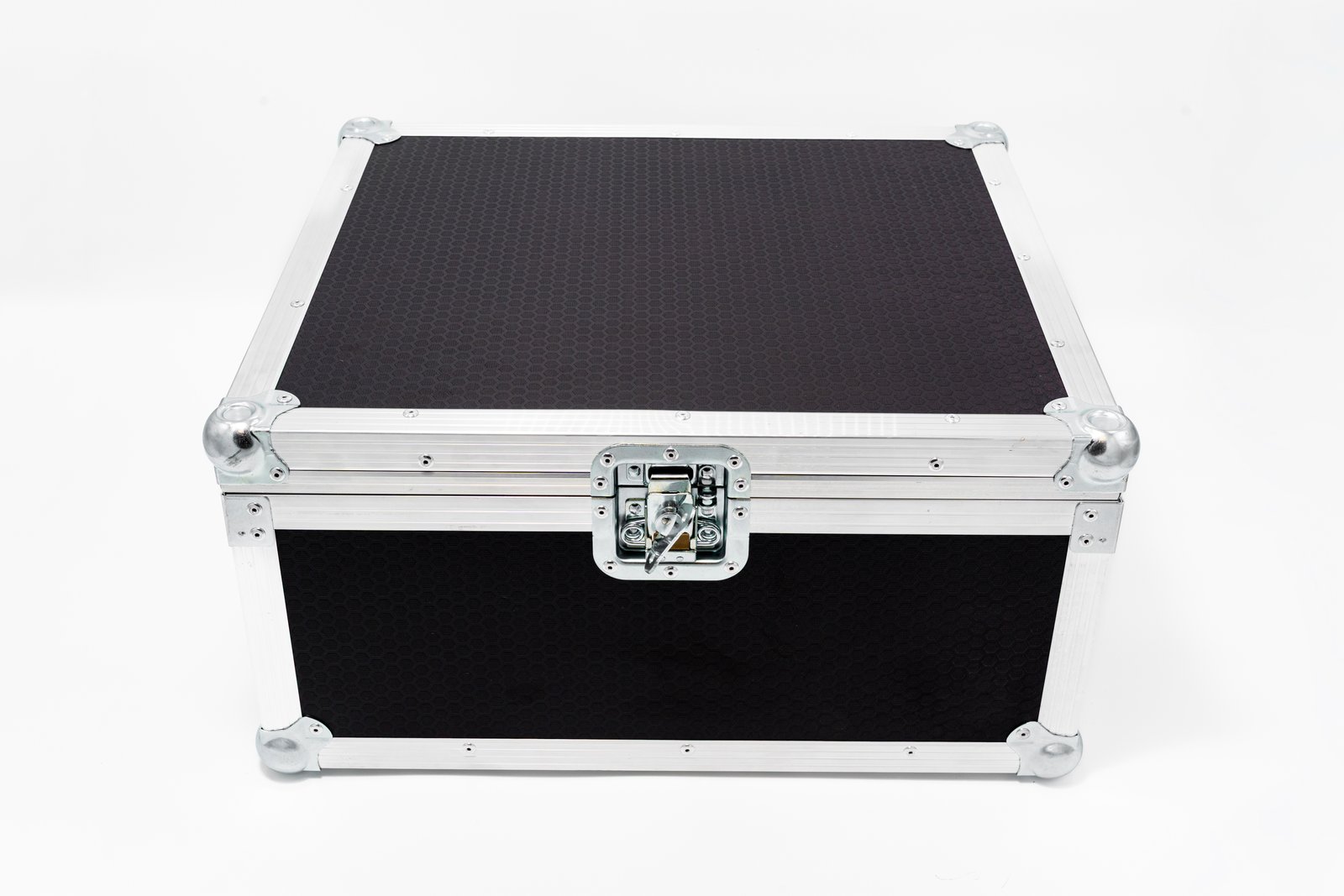

- Aluminium transport box with foam inserts
- Base leveling plate raisers
- Laser leveling tool
Measurement Capabilities
- Toe measurement
- Camber measurement
- Caster measurement
- Ride height measurement
Materials & Construction
- 6082-T6 aluminium alloy – the primary structural material across all hub stand components, selected for its strength-to-weight ratio, machinability, and resistance to corrosion in workshop and trackside conditions
- Load transfer bearings – precision rolling elements at the hub interface that eliminate lateral friction during toe measurement, ensuring readings reflect true suspension geometry
- Anodised finish – protective surface treatment that extends component life and maintains dimensional stability across temperature variations
Applications
- Pre-event and post-event suspension geometry checks for circuit racing
- Rally car preparation and geometry baseline setting
- Trackday vehicle setup and alignment verification
- Professional workshop alignment without fixed ramp infrastructure
- Corner weight and ride height baseline measurement
- Endurance racing team pit garage geometry management
Why This Car Setup Package Is Important
Accurate suspension geometry is fundamental to consistent, predictable handling — and small deviations in toe or camber settings have a measurable impact on tyre wear, lap time, and driver confidence. The NP Pro Car Setup Package (Laser) gives race engineers and workshop technicians the tools to measure and adjust suspension geometry to tight tolerances at any location, without dependence on fixed alignment equipment. For teams operating across multiple venues or with limited workshop facilities, a portable, precision system like this is not a luxury but a practical necessity.
Technical Information
- Product type: Professional car suspension geometry setup package
- Compatibility: Custom 4–5 lug, Universal, and Centerlock hub configurations; brake discs up to 380 mm diameter
- Height adjustment: 35 mm range
- Wheel offset adjustment: +12 to –50
- Materials: CNC-machined 6082-T6 aluminium, load transfer bearings
- Intended use: Motorsport and professional workshop suspension geometry measurement
- Origin: Manufactured and assembled in the EU (Lithuania)
- Condition: New
- Available configurations: Custom (4–5 lug), Universal, Centerlock
Pricing & VAT
All prices are shown excluding VAT.
For bulk orders or motorsport team inquiries, please contact us.
| Weight | 34 kg |
|---|---|
| Dimensions | 65 × 35 × 45 cm |
| Car-model |
CUSTOM (4-5 LUGS) ,UNIVERSAL ,CENTERLOCK |
