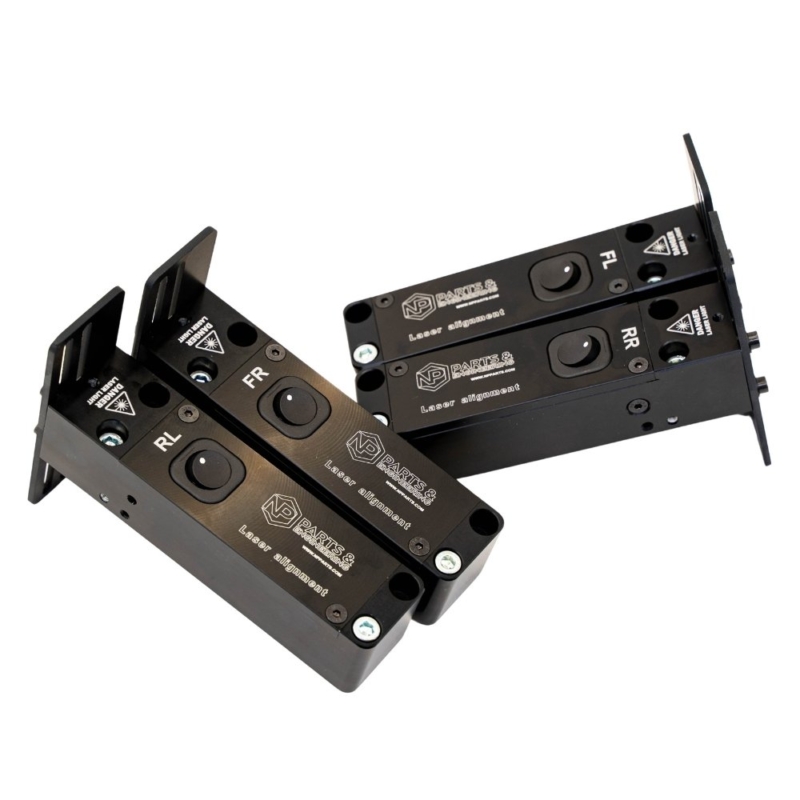

NP Laser Alignment Kit for Hub Stands

The NP Laser Alignment Kit is a precision laser-based toe alignment system designed for use with NP Hub Stands to deliver faster, more accurate suspension geometry measurement compared to conventional string alignment methods. Using the vehicle’s wheelbase as the measurement baseline rather than short 500–700 mm rulers, the NP laser system measures toe angle across 2,500+ mm of distance, achieving approximately 1 mm accuracy in a repeatable, setup-independent workflow.

Developed and long-tested before release, the NP Laser Alignment Kit uses CNC-machined laser housings with calibrated laser modules, custom engraved targets, and a logical setup process that eliminates the mounting frames and human error sources inherent in string-based alignment. It also naturally ensures correct thrust angle as part of the alignment process.

Key Features & Benefits

• Long-baseline toe measurement – measures across 2,500+ mm of wheelbase distance compared to 500–700 mm in string setups, providing fundamentally higher angular measurement accuracy
• Approximately 1 mm accuracy – outperforms string alignment accuracy claims of 0.5 mm over short ruler distances once the improved baseline geometry is factored in
• CNC-machined laser housings – precision-machined housings ensure consistent laser positioning and angle relative to the hub stand mounting surface
• Calibrated laser modules – each laser module is assembled and calibrated in-house, with on-site verification capability to confirm module accuracy
• Custom engraved targets – purpose-designed alignment targets with engraved reference marks for repeatable, unambiguous toe reading
• Thrust angle correction included – the measurement method naturally verifies and corrects thrust angle as part of the standard alignment procedure
• Compact and portable – no large perimeter frames required; the kit mounts directly to the hub stands and is easy to transport and store
• Fast setup process – mount lasers, measure laser width, set target offset — alignment is ready and changes are visible in real time on the targets during suspension adjustment

Available Options & Pricing

• NP Laser Alignment Kit – €820

All prices are shown excluding VAT.

Why Laser Alignment Is Superior to String Alignment

• Precision: String alignment measures over short ruler lengths (500–700 mm), where small physical errors in string placement and ruler positioning compound. The NP laser system measures over 2,500+ mm of wheelbase distance, making the same physical offset represent a much smaller angular error.
• Ease of use: Mounting and tensioning a string alignment setup introduces multiple variables. Laser alignment requires only mounting the lasers, setting the target offset, and reading directly — with live feedback as suspension adjustments are made.
• Compactness: String frames extend around the vehicle perimeter and are vulnerable to accidental disturbance. The NP laser kit is contained, stiff, and significantly easier to use in tight workshop spaces.
• Thrust angle: The laser method inherently verifies thrust angle alignment as part of the procedure, something string setups require additional steps to confirm.

Materials & Construction

• CNC-machined laser housings – precision-machined to hold laser modules at consistent, calibrated angles relative to the hub stand interface
• Calibrated laser modules – assembled and verified in-house with on-site re-calibration capability
• Custom engraved targets – precisely marked reference targets for clear, unambiguous alignment reading

Applications

• Toe alignment measurement for circuit and rally vehicles
• Pre-event geometry verification during team setup
• Accurate wheel alignment in professional motorsport workshops
• Thrust angle checking and correction during geometry preparation

Technical Information

• Product type: Laser toe alignment kit for hub stands
• Measurement method: Laser-based, long-baseline toe measurement
• Measurement baseline: Vehicle wheelbase (2,500+ mm typical)
• Accuracy: Approximately 1 mm
• Compatibility: NP Hub Stand systems
• SKU: NP PHS LA KIT
• Condition: New

Pricing & VAT

All prices are shown excluding VAT.

For bulk orders or motorsport team inquiries, please contact us.
