NP Elite Hub stands
3,990.00 €
The NP Elite Hub Stands are a complete professional motorsport suspension geometry system. CNC-machined for maximum precision, with 500 kg/wheel safety rating, Bluetooth corner weight scales (0.1% accuracy), integrated camber measurement (0.03% accuracy), Laser Alignment Kit V2, Elite Base Plates, and hard transport case. Height 325–365 mm, offset +15 to –60. €3,990 excl. VAT.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
NP Elite Hub Stands

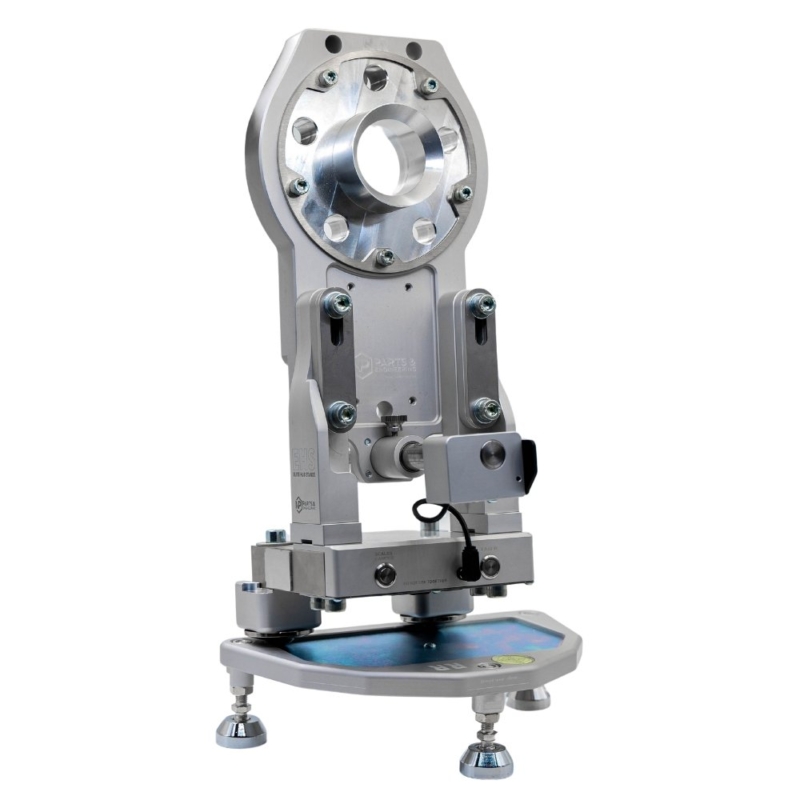

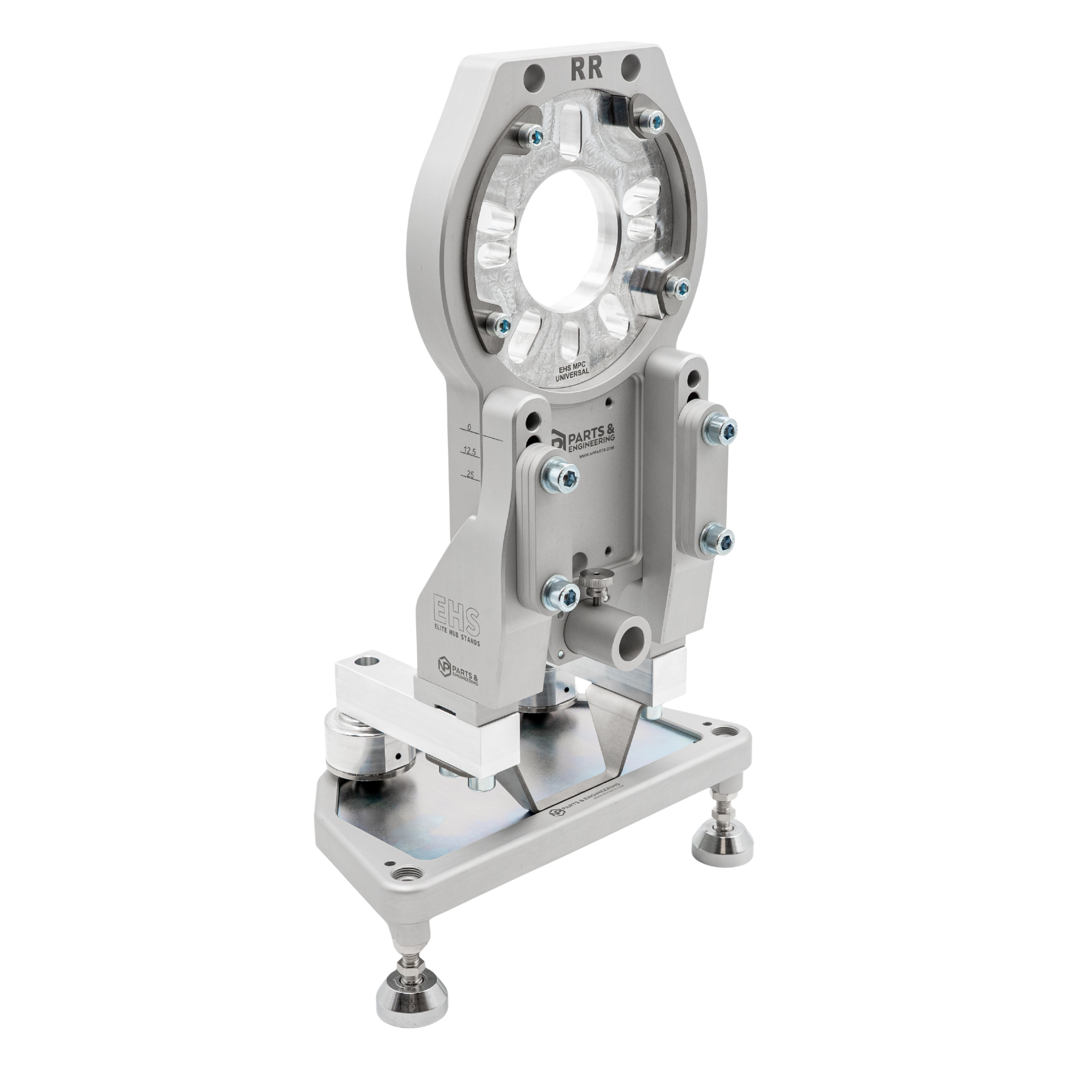

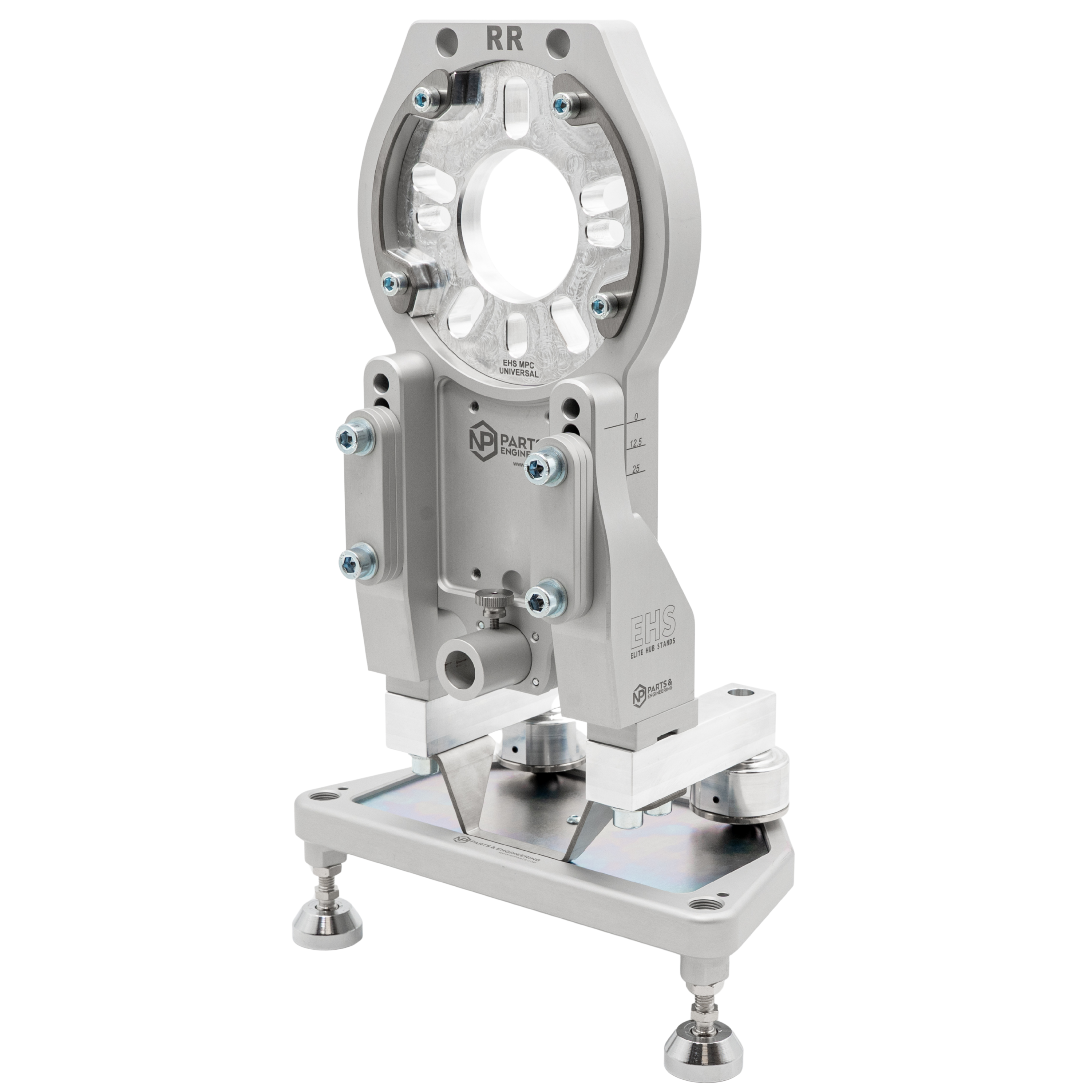

The NP Elite Hub Stands are a professional-grade motorsport suspension geometry system engineered for precision alignment, weight measurement, and camber analysis. Designed and CNC-machined for maximum dimensional accuracy, the Elite Hub Stand system integrates a laser alignment kit, bluetooth-connected scales, and camber measuring capability into a single, portable pit equipment platform. With a 500 kg per wheel safety rating and a height-adjustable, offset-adaptable design, these hub stands are built for the demands of competitive motorsport.
NP Elite Hub Stands are used by professional racing teams, preparation specialists, and motorsport engineers who require reliable, repeatable geometry data in pit garage and workshop conditions. The complete system includes Elite Base Plates, Laser Alignment Kit V2, integrated Bluetooth scales, and a hard transportation case.
Key Features & Benefits
- CNC machined for maximum precision – every component is machined to close tolerances, ensuring geometry readings are accurate and repeatable across sessions and venues
- Height (tyre size) adjustability: 325–365 mm – accommodates a broad range of vehicle ride heights and tyre profiles without requiring separate stands

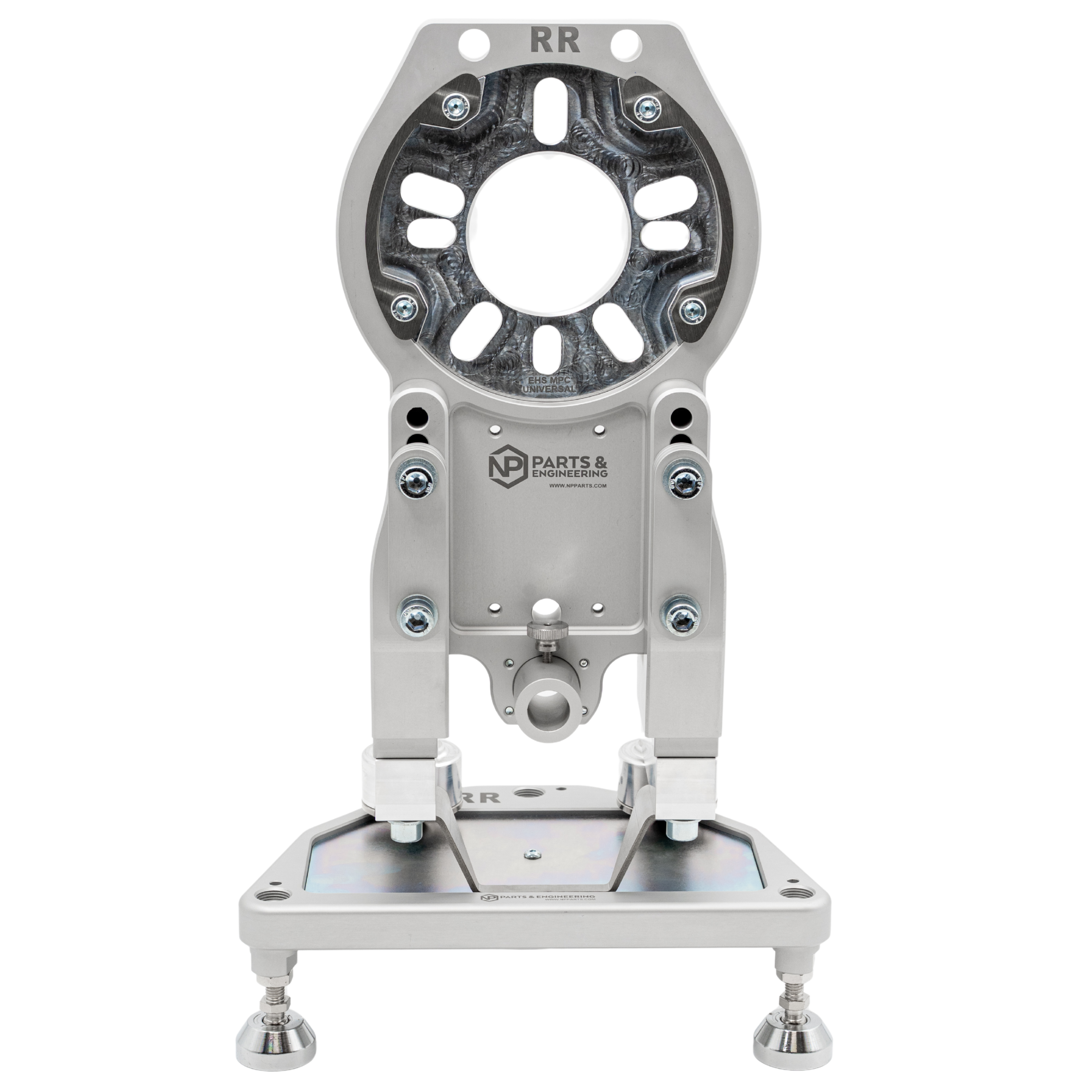

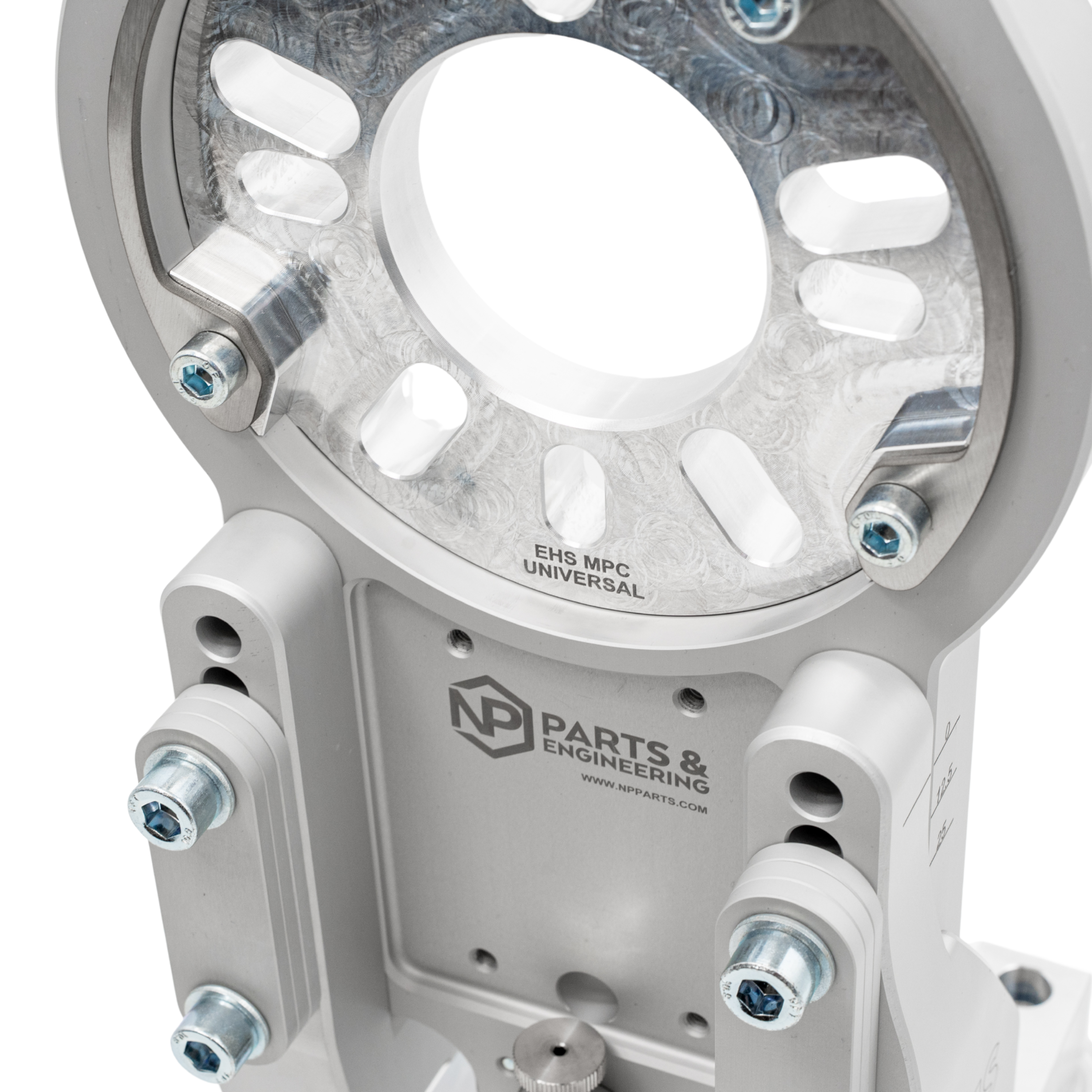

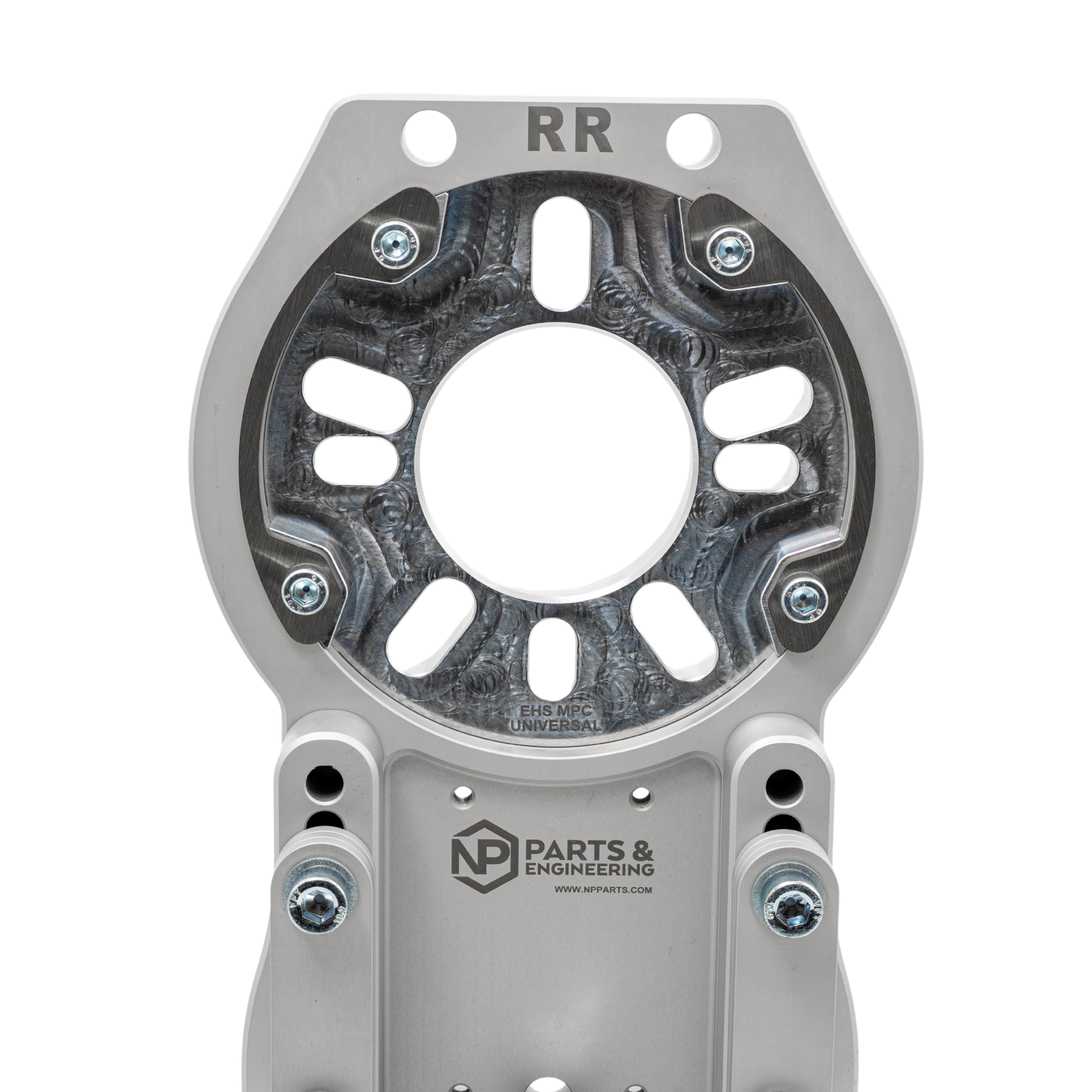

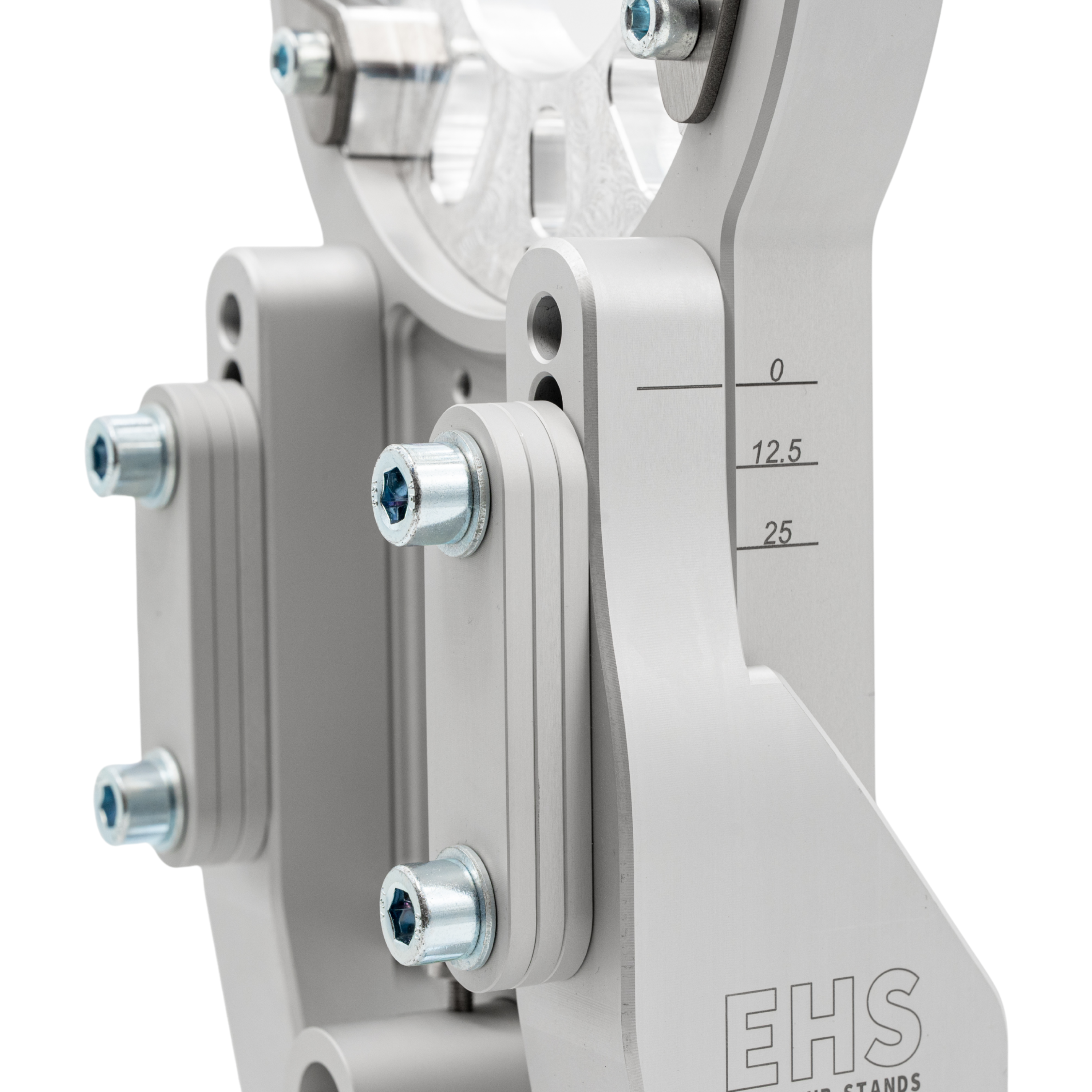

- Offset (ET) adjustable range: +15 to –60 – interchangeable mounting plate design adapts to a wide range of wheel offsets and bolt patterns
- Load transfer bearings – precision rolling elements at the hub interface eliminate lateral friction during toe measurement, ensuring readings reflect true suspension geometry
- 500 kg per wheel safety rating – engineered to safely support even the heaviest circuit and GT-class competition vehicles
- Integrated Bluetooth scales – 0.1% accuracy corner weight measurement with wireless connectivity, hub stand position does not affect weight readings
- Integrated camber measurement – 0.03% accuracy camber reading built directly into the hub stand design, eliminating the need for separate measurement tools
- Laser Alignment Kit V2 included – uses track width bars and 650 nm green lasers with custom engraved targets for fast, simple toe measurement without complex calculation

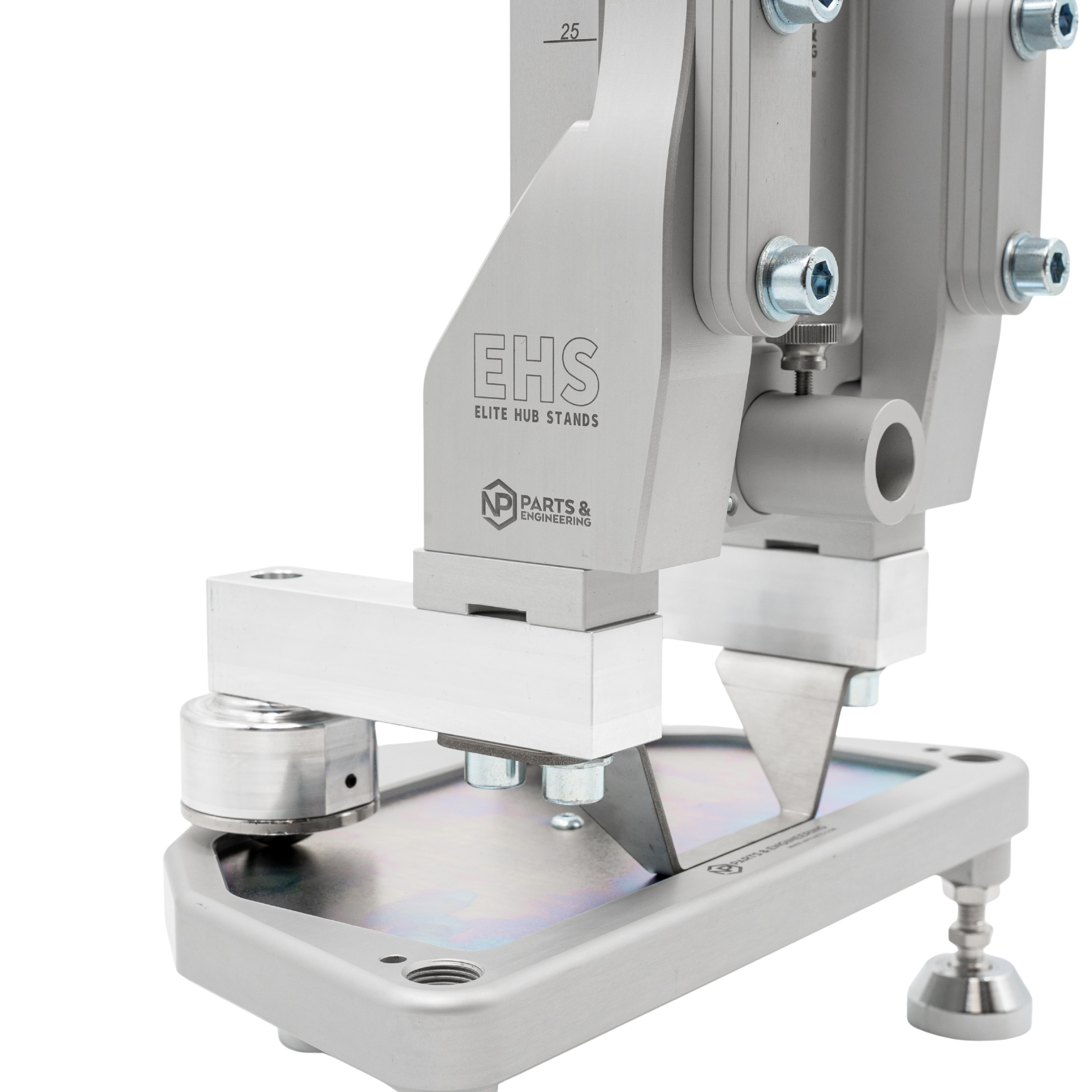

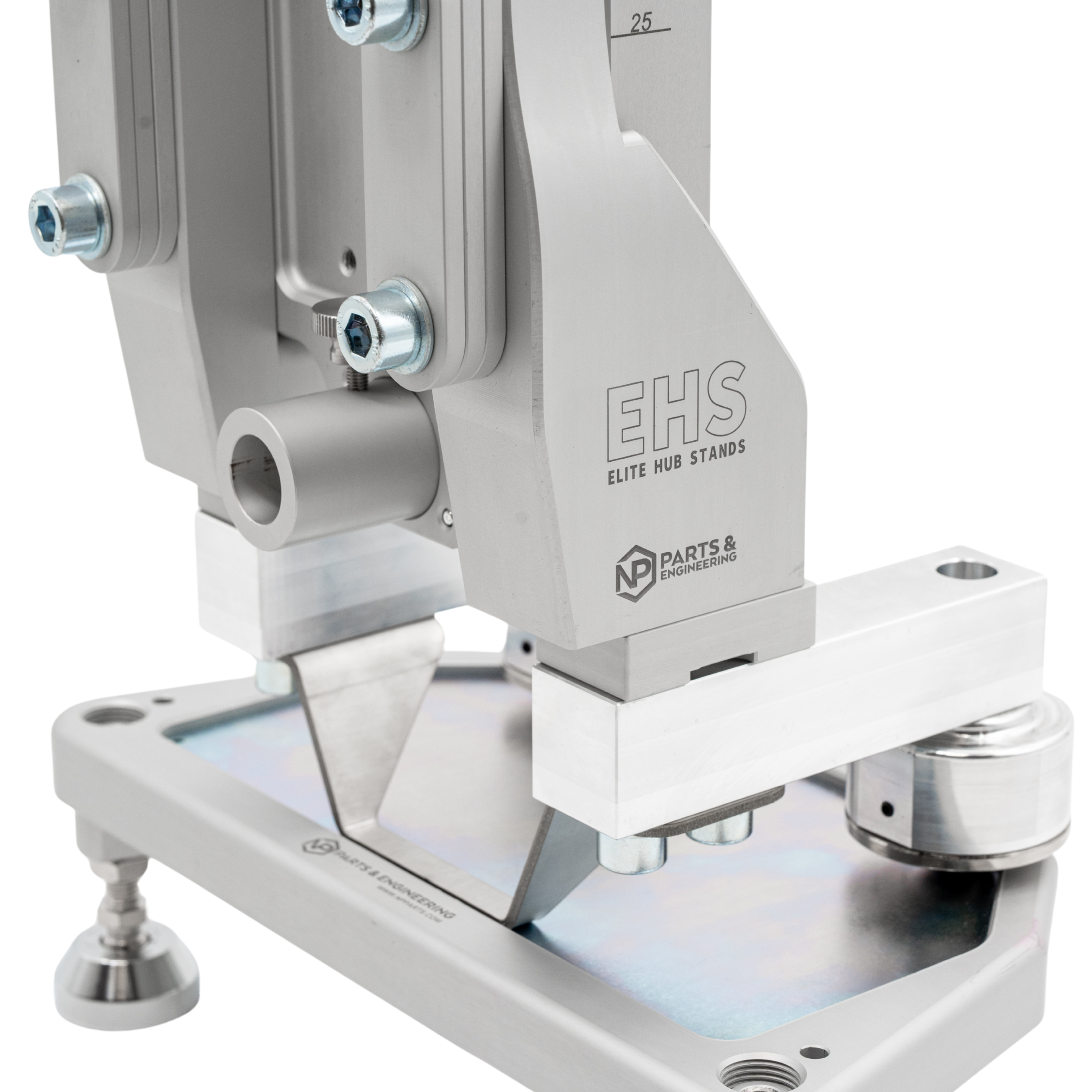

- Elite Base Plates with level bubble – height adjustability from 50 to 145 mm, Hardox steel inserts for long-term durability, integrated bubble level for accurate floor compensation
- Stackable hard transport case: 900 × 720 × 320 mm – designed to store all system components for safe transport and organised pit garage storage
Available Options & Pricing
The NP Elite Hub Stands system is available as a complete package including all listed components.
- NP Elite Hub Stands full system – €3,990
All prices are shown excluding VAT.
System Contents
- NP Elite Hub Stands (pair)
- NP Elite Base Leveling Plates
- NP Laser Alignment Kit V2
- Integrated Bluetooth scales and camber measurement system
- Hard transport case (900 × 720 × 320 mm)
Materials & Construction
- CNC-machined aluminium – primary structural material for hub stand bodies, selected for precision machinability and resistance to workshop and trackside conditions
- Hardox steel inserts (base plates) – wear-resistant Hardox inserts in the base plate contact zones ensure long-term dimensional stability across repeated use cycles
- 650 nm green laser modules – assembled and calibrated in-house for laser alignment kit, with on-site verification capability
- Load transfer bearings – precision rolling elements at the hub interface for accurate, friction-free toe measurement
Measurement Capabilities
- Corner weight measurement (Bluetooth scales, 0.1% accuracy)
- Camber measurement (integrated, 0.03% accuracy)
- Toe measurement (Laser Alignment Kit V2)
- Ride height measurement
- Caster measurement (with angle reader)
Applications
- Complete vehicle geometry setup before circuit events
- Corner weight balancing for race and sprint cars
- GT, touring car, and prototype class pit equipment
- Professional motorsport preparation workshop setup
- Rally car geometry baseline and post-stage verification
- Endurance racing pit garage geometry management
Why These Hub Stands Are Important
Precise suspension geometry and accurate corner weight distribution are two of the most impactful variables a race engineer can control. The NP Elite Hub Stands provide both in a single, integrated system — combining Bluetooth corner weight scales accurate to 0.1%, camber measurement to 0.03%, and laser-guided toe alignment in a portable, transportable package. For teams where every tenth of a second counts, reliable geometry data and consistent setup procedures are a competitive necessity.
Technical Information
- Product type: Professional motorsport hub stand suspension geometry system
- Hub stand height range: 325–365 mm
- Offset (ET) range: +15 to –60
- Safety rating: 500 kg per wheel
- Scale accuracy: 0.1%
- Camber accuracy: 0.03%
- Base plate height range: 50–145 mm
- Transport case dimensions: 900 × 720 × 320 mm
- Materials: CNC-machined aluminium, Hardox steel inserts, 650 nm laser modules
- Connectivity: Bluetooth (scales and camber)
- SKU: NP EHS
- Condition: New
Pricing & VAT
All prices are shown excluding VAT.
For bulk orders or motorsport team inquiries, please contact us.
| Weight | 90 kg |
|---|---|
| Dimensions | 80 × 80 × 65 cm |
| PCD, Center Bore |
Universal ,4×100 52.1 ,4×100 54.1 ,4×100 56.1 ,4×100 56.5 ,4×100 57.1 ,5×100 54.1 ,5×100 56.1 ,5×100 57.1 ,5×112 57.0 ,5×112 57.1 ,5×112 66.5 ,5×112 66.6 ,5×114.3 56.1 ,5×114.3 59.6 ,5×114.3 60.1 ,5×114.3 64.1 ,5×114.3 66.1 ,5×114.3 67.1 ,5×114.3 68.1 ,5×114.3 70.1 ,5×114.3 70.5 ,5×120 72.5 ,5×120 74.1 ,5×130 71.6 |
