NP Pro Car setup package (Laser)

NP Pro Car Setup Package (Laser)

The NP Pro Car Setup Package (Laser) is a complete, professional-grade suspension geometry measurement and alignment system built around CNC-machined hub stands, a high-precision laser alignment kit, and integrated measurement tools. Designed for race engineers and professional workshops, this package provides everything needed to measure and adjust toe, camber, caster, and ride height with consistent, repeatable accuracy. All components are precision-machined from 6082-T6 aluminium and assembled in Lithuania, EU.

The NP Pro Car Setup Package is suited to circuit racing teams, rally preparation specialists, and serious track-day operators who require workshop-level geometry accuracy without fixed alignment ramp infrastructure. The system is compact, fully portable, and housed in a dedicated hard case.

Key Features & Benefits

• CNC machined from 6082-T6 aluminium – high-strength, corrosion-resistant alloy chosen for precision machining tolerances and long service life in workshop environments
• High-precision laser alignment system (NP Pro Laser) – enables accurate toe measurement across the full axle using consistent optical reference points, reducing setup time and human error. Note: the NP Pro laser alignment system is a separate product from the Elite Laser Alignment System, which is exclusive to the NP Elite package.
• Digital dual-axis angle reader – provides simultaneous camber and caster measurement without additional tools or guesswork
• Adjustable height range from 325 to 355 mm (radius) – simulates tyre radius to accommodate varying ride heights across different vehicle configurations and suspension setups
• Offset adjustment from +12 to –50 – interchangeable mounting plates allow the NP Pro Car Setup Package to fit a wide range of bolt patterns and offsets
• Load transfer bearings – reduce friction at the hub interface during measurements, ensuring accurate toe readings unaffected by lateral binding
• Compatible with brake discs up to 380 mm – fits without modification, covering the majority of circuit and rally-spec applications
• Compact hard case – protects all components during transit and makes the system fully self-contained for trackside use
• Custom mounting plates available on request – extends compatibility to specialist or non-standard hub configurations
• Manufactured and assembled in the EU (Lithuania) – consistent quality control and traceability

Available Options & Pricing

The NP Pro Car Setup Package (Laser) is available in three configuration variants to match different hub and wheel mounting requirements.

• Universal – from  €2,980
• Custom (4–5 lug) – from €3,190
• Centerlock – from €3,310

All prices are shown excluding VAT.

Kit Contents

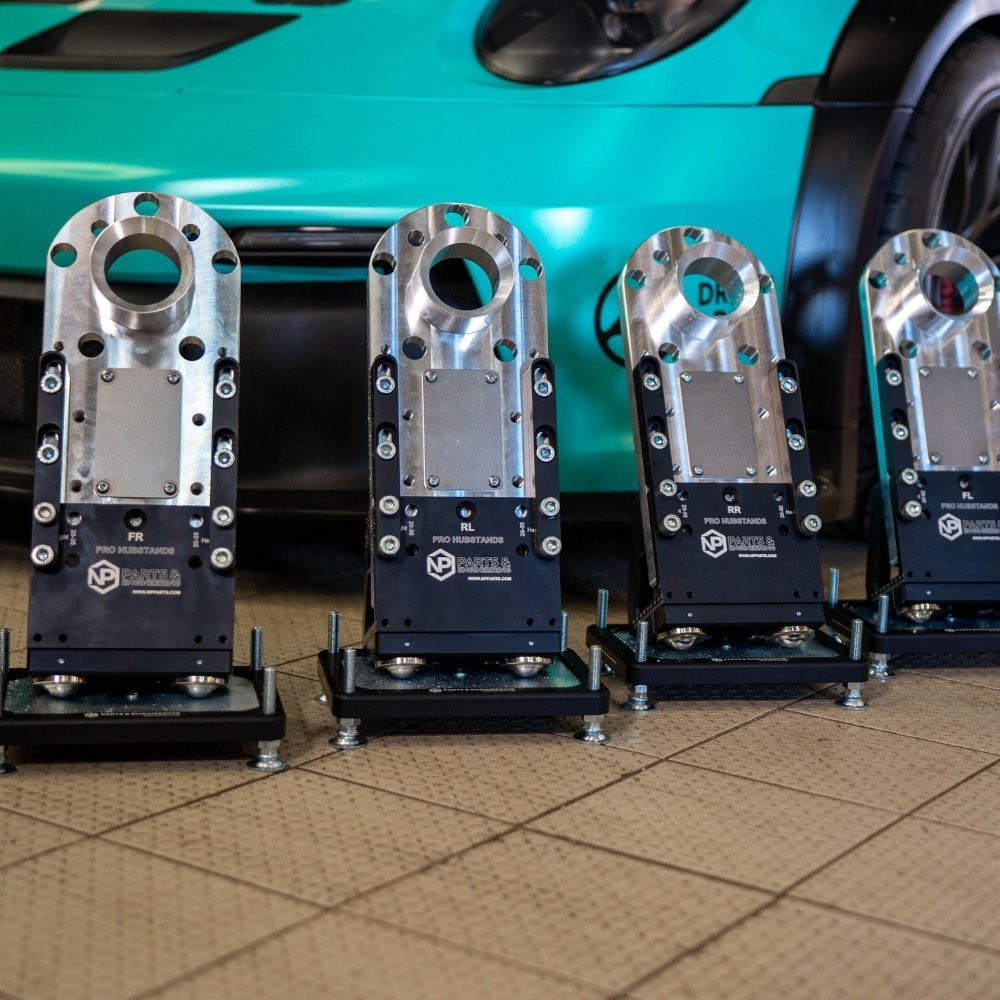

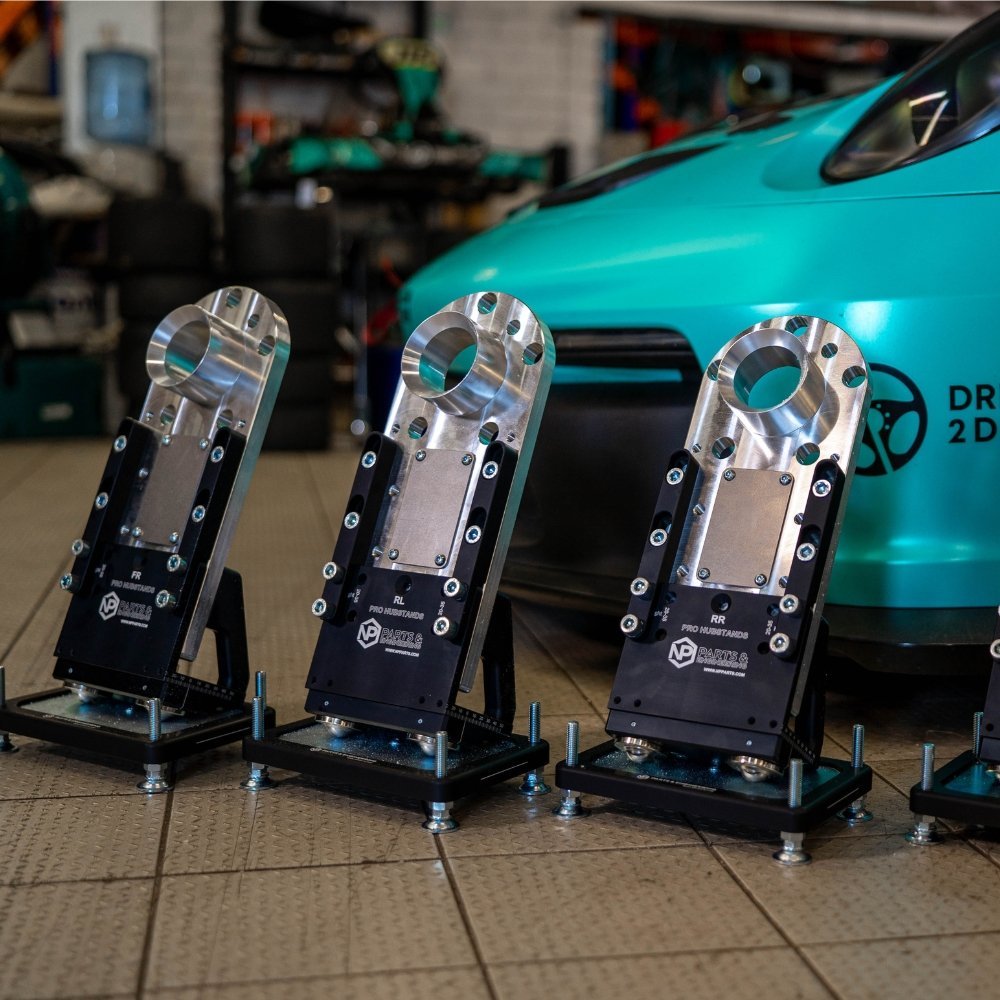

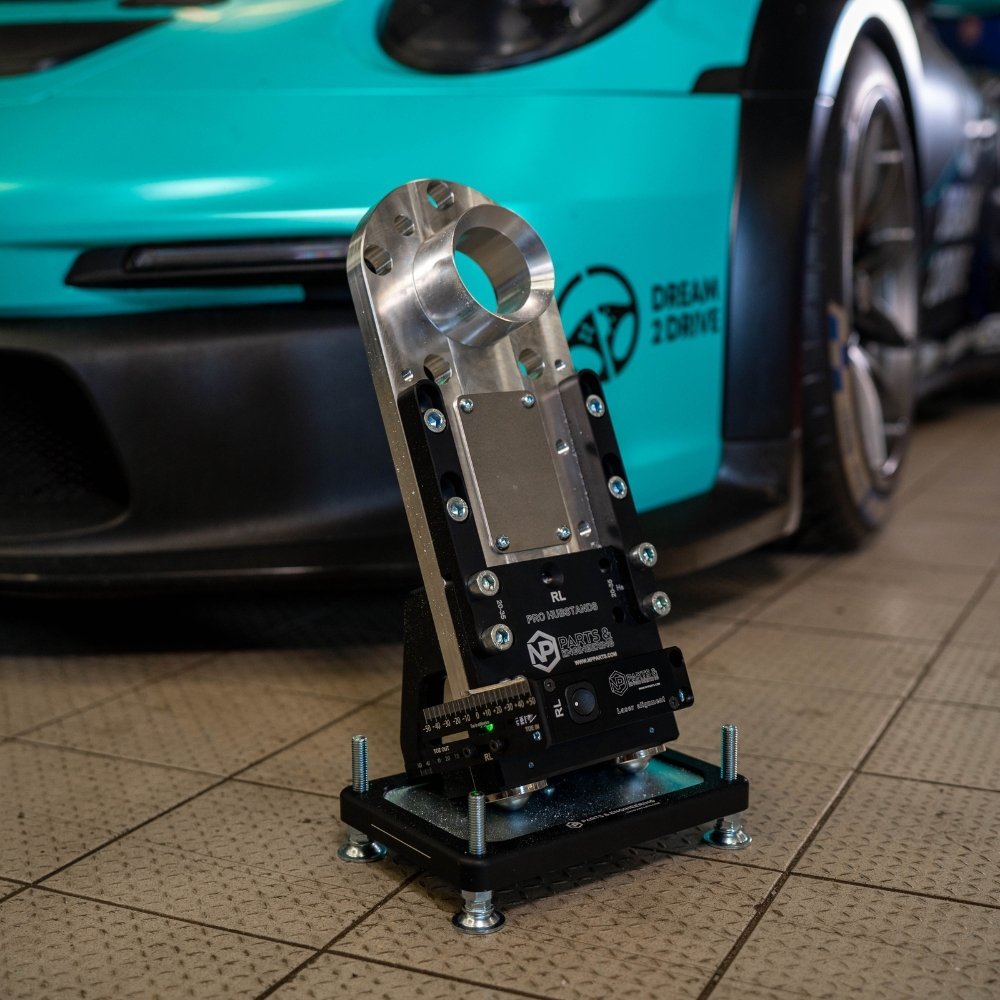

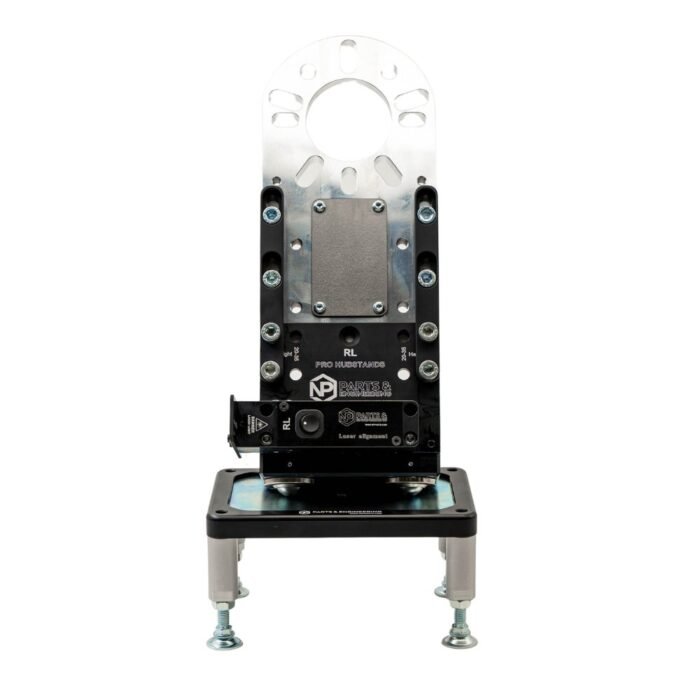

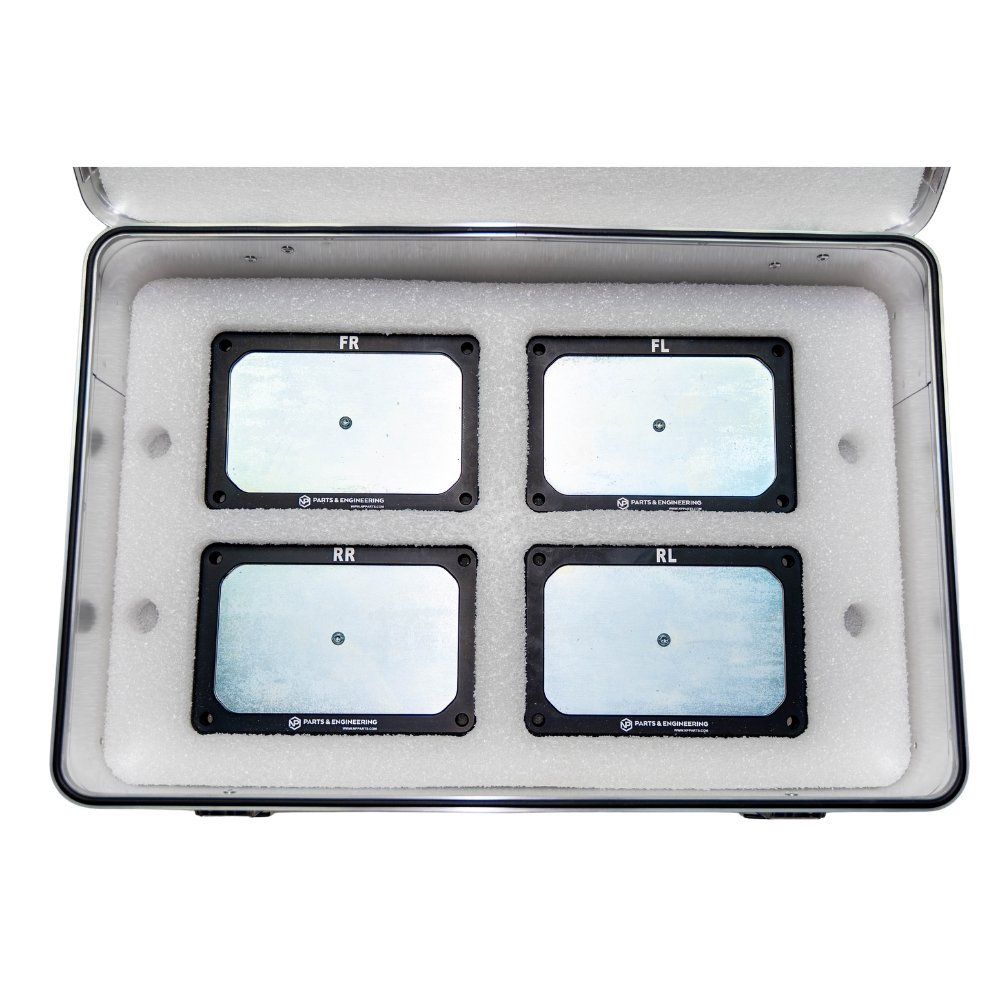

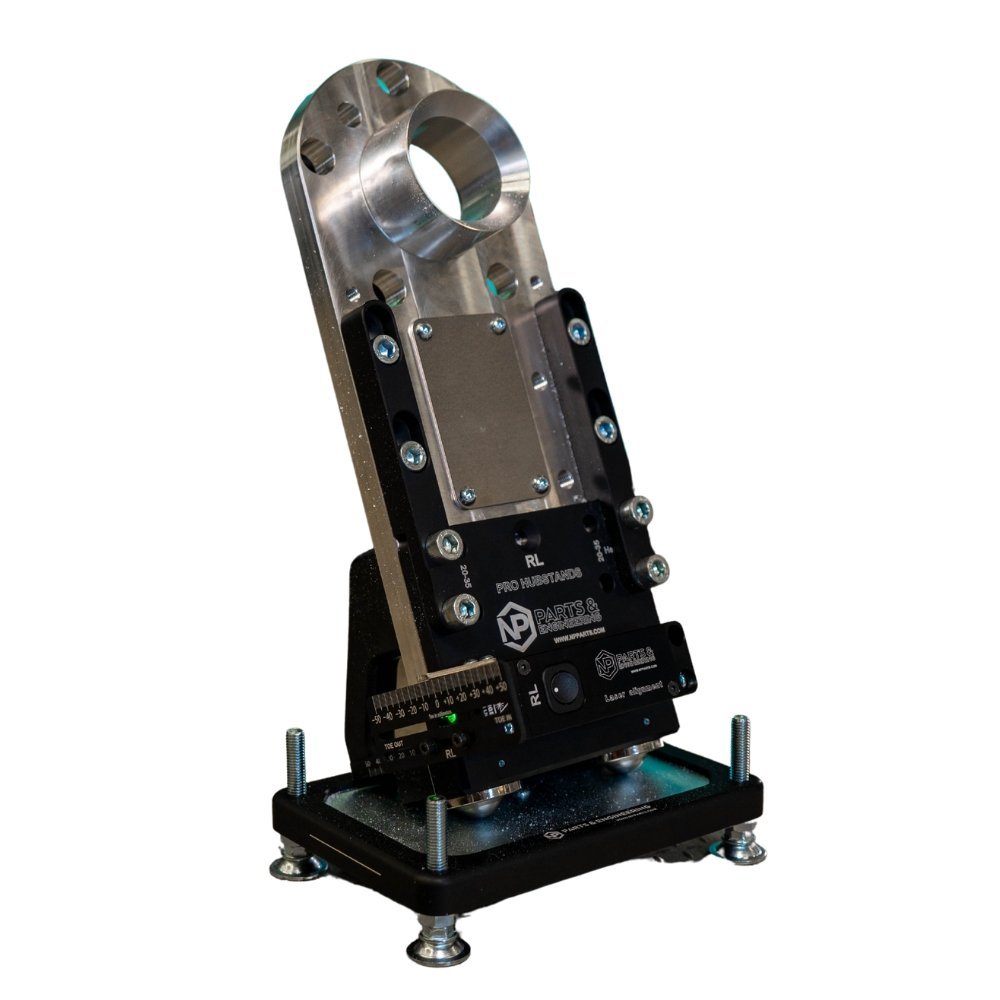

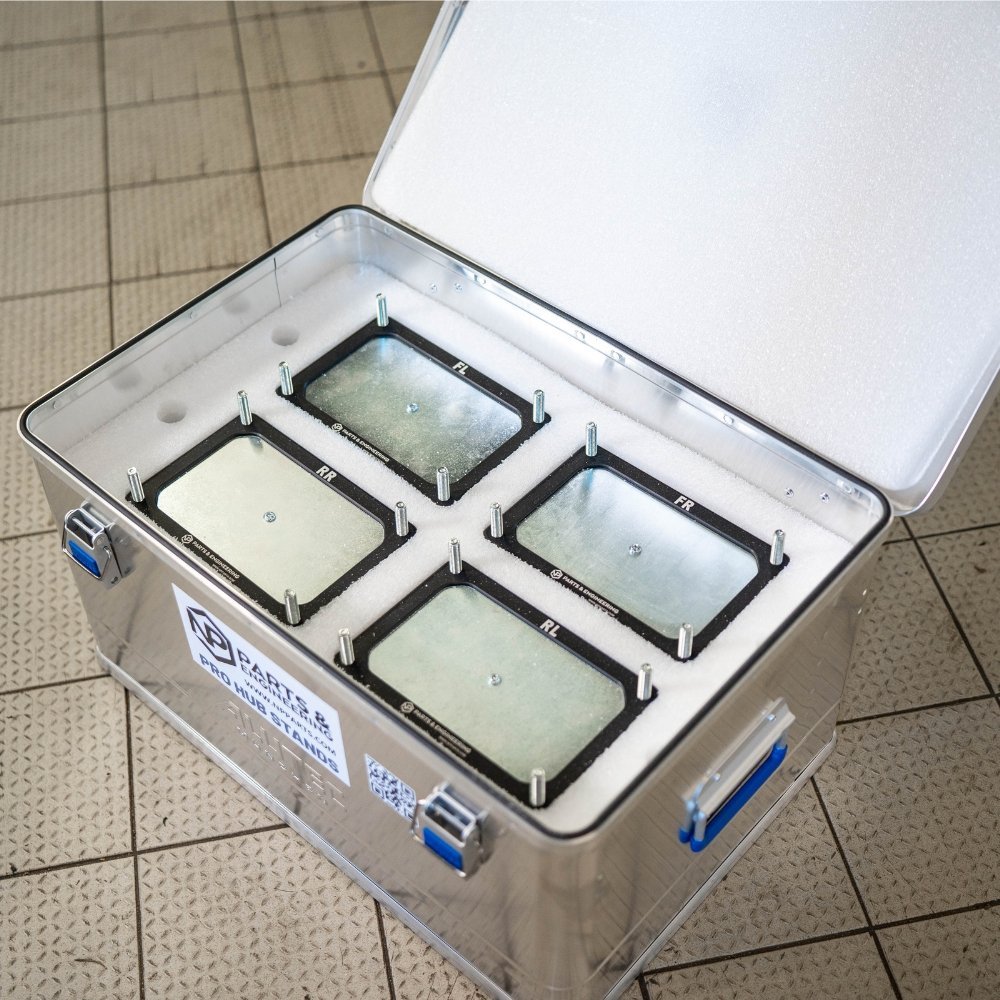

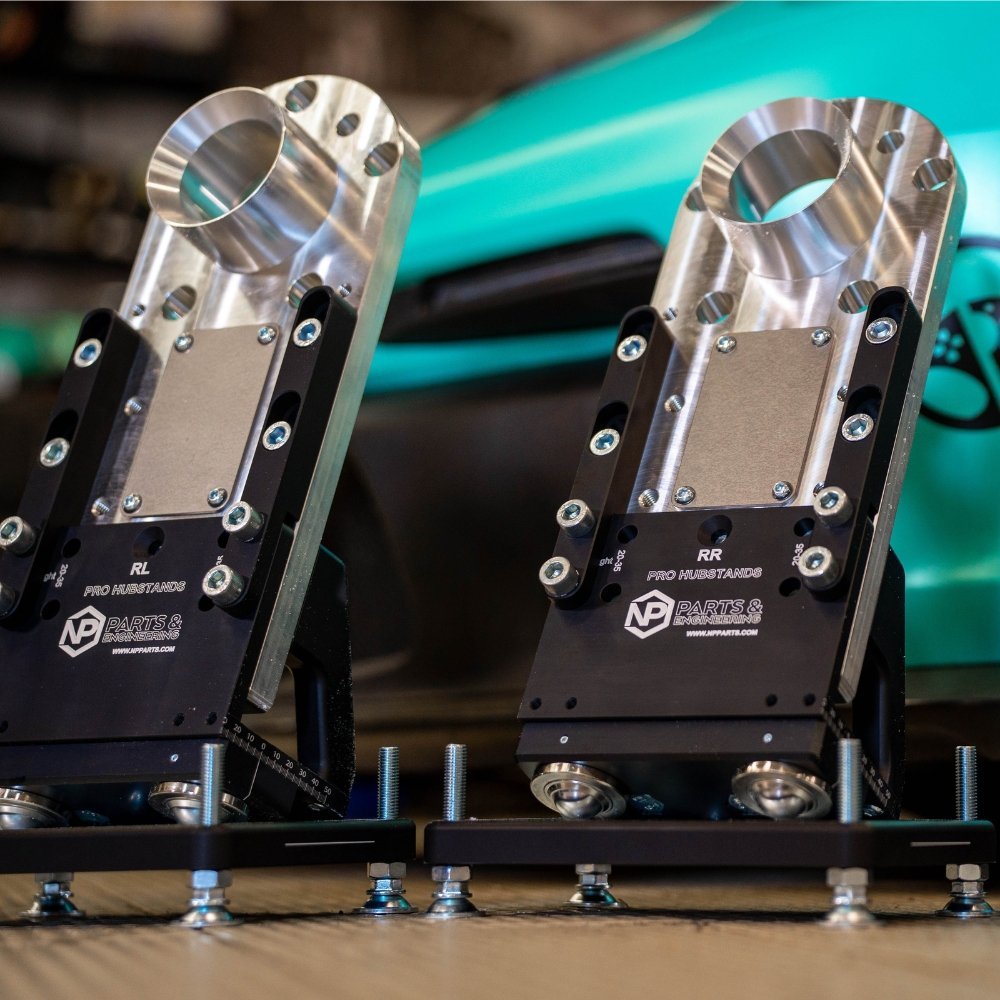

• NP Pro hub stands with leveling base plates

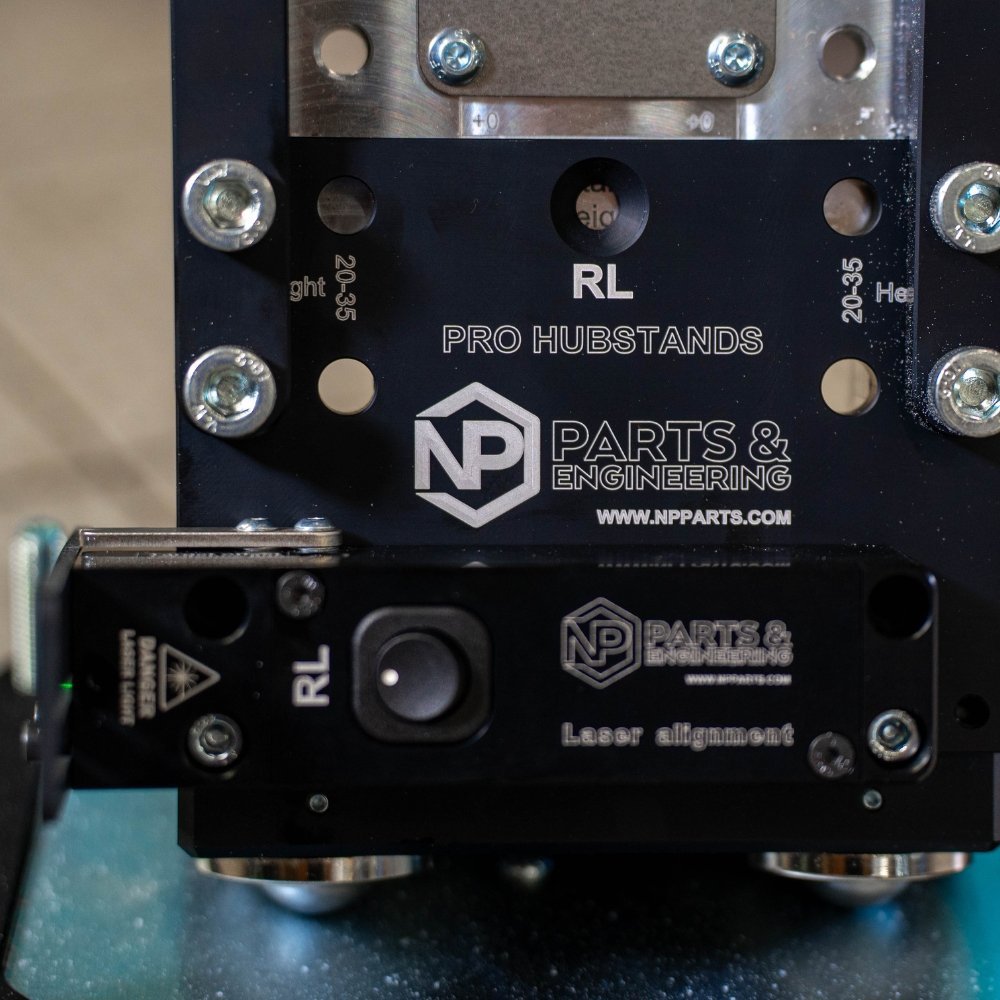

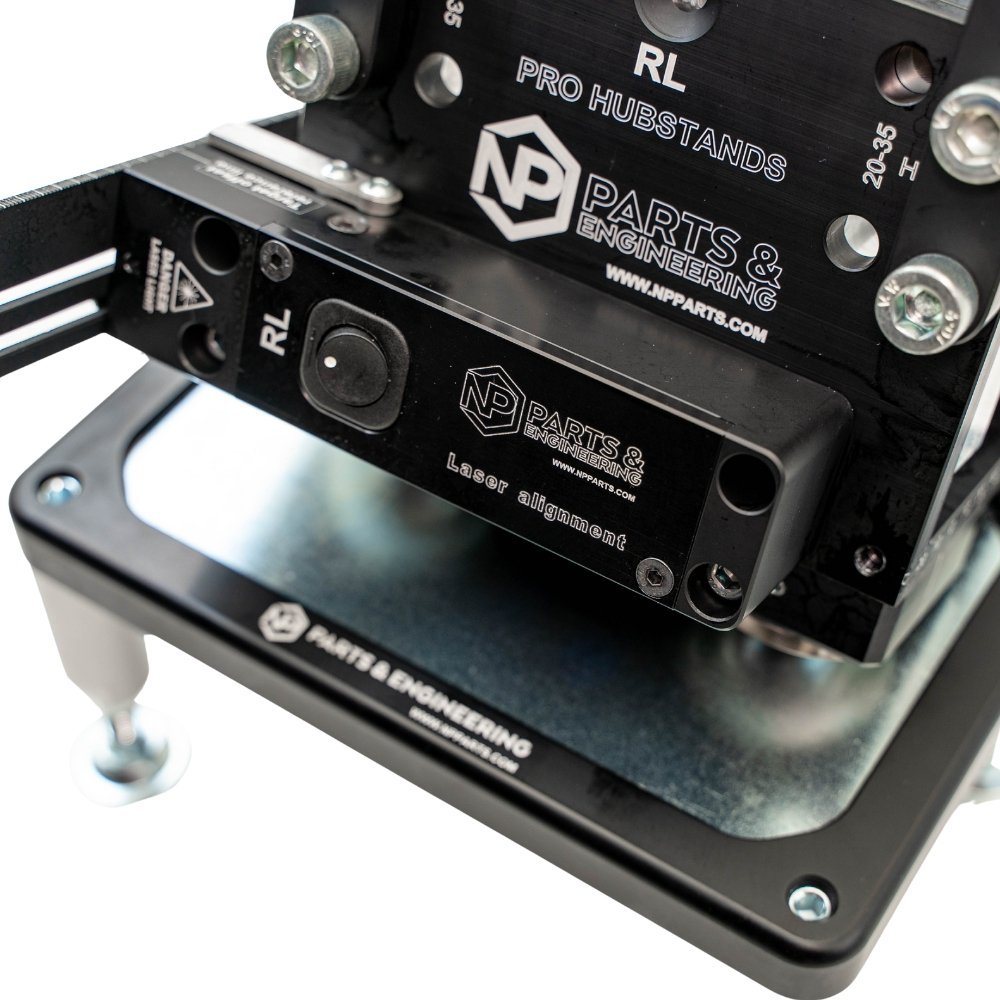

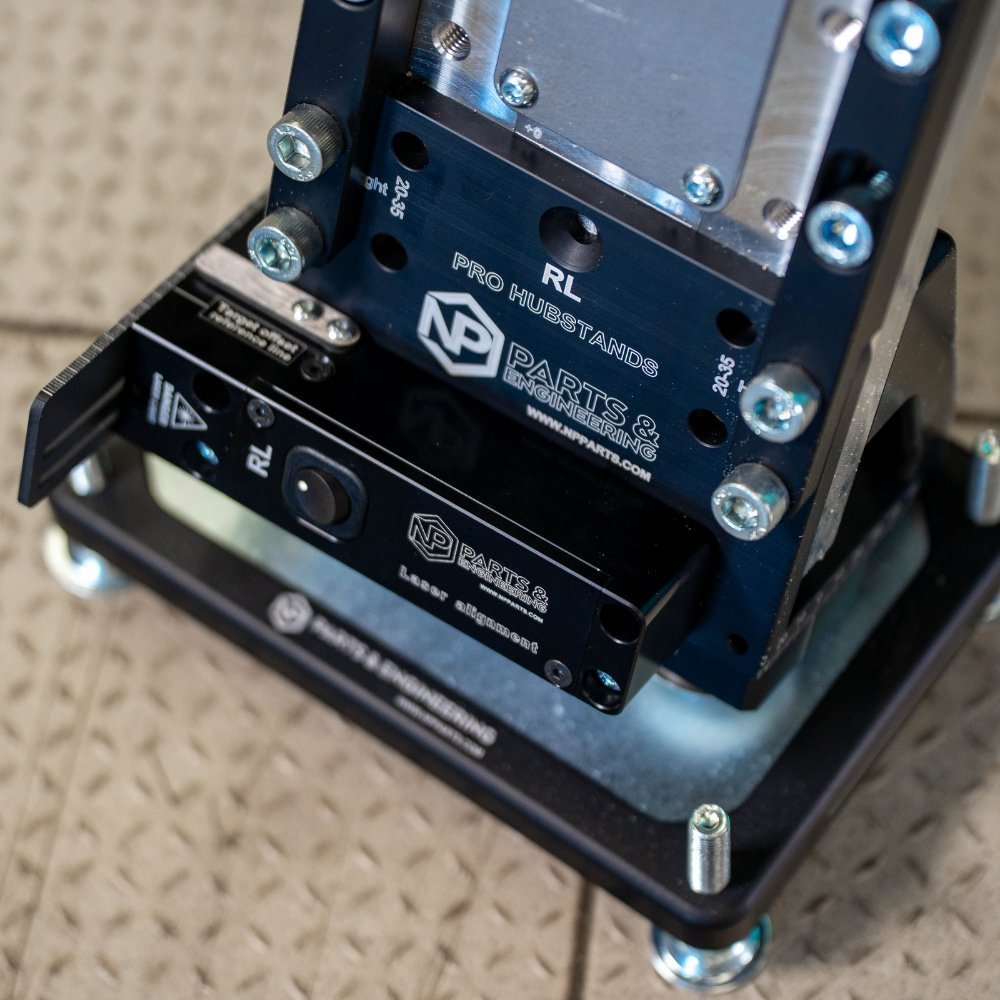

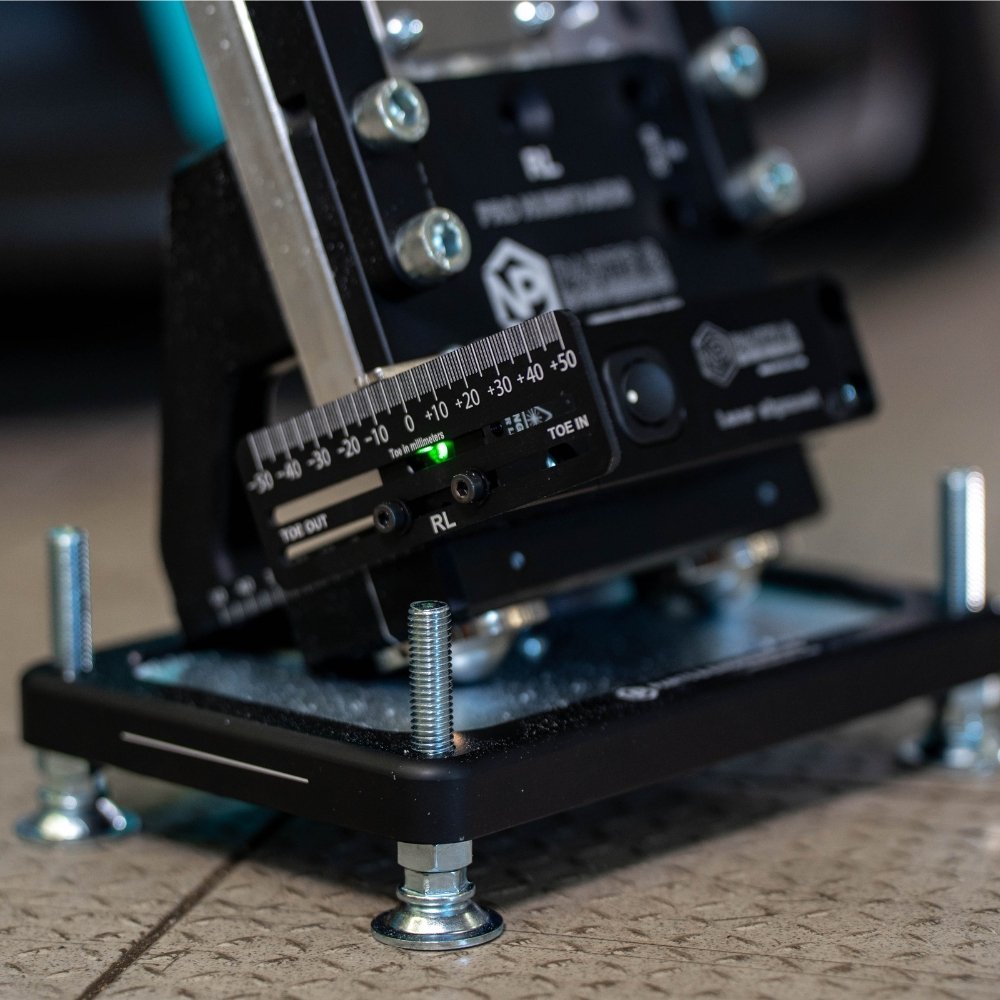

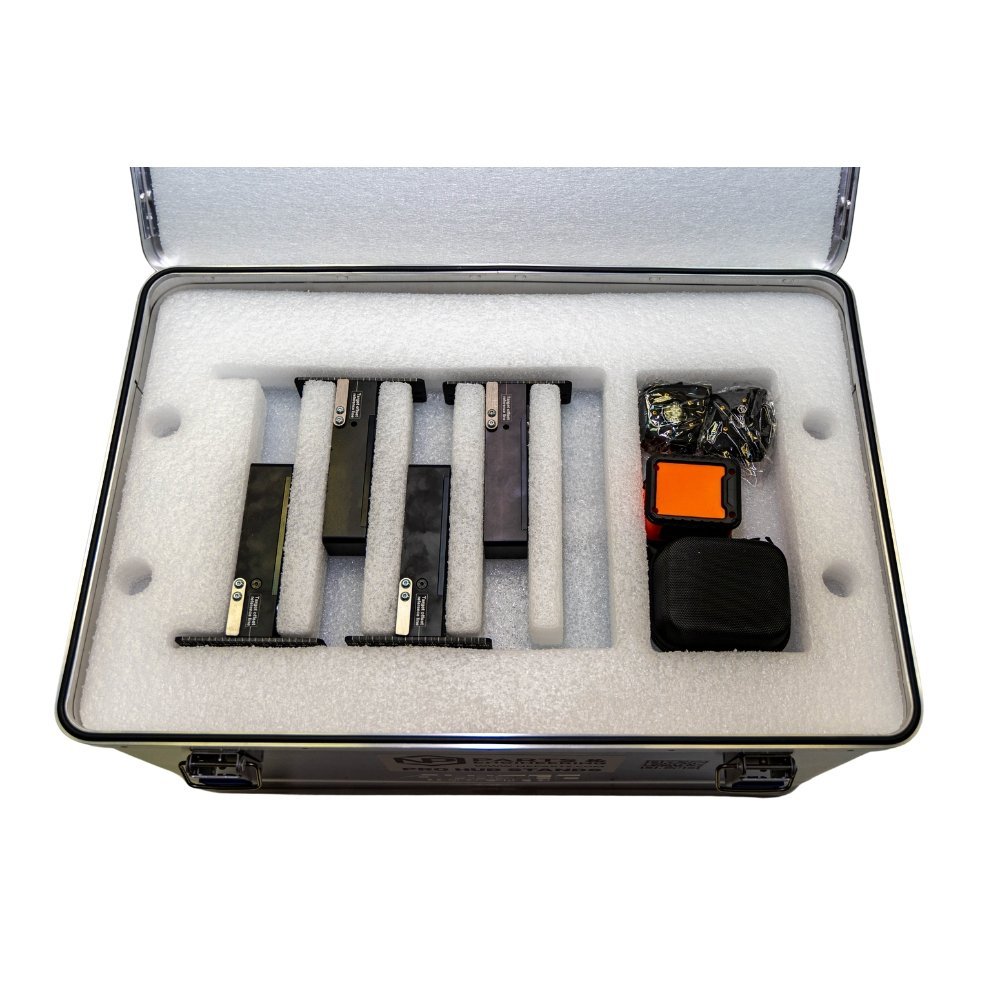

• NP Laser alignment kit
• Digital dual-axis angle reader

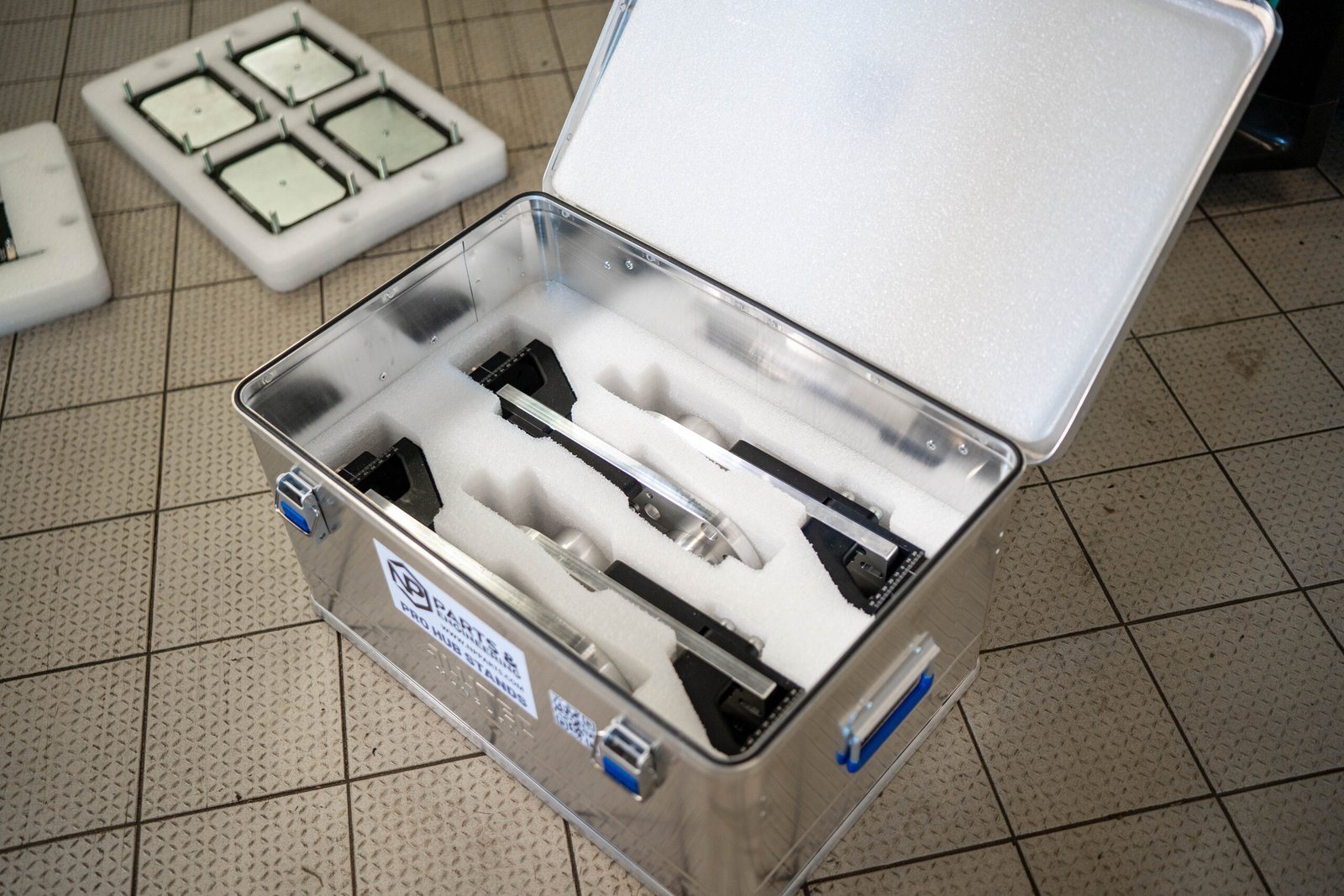

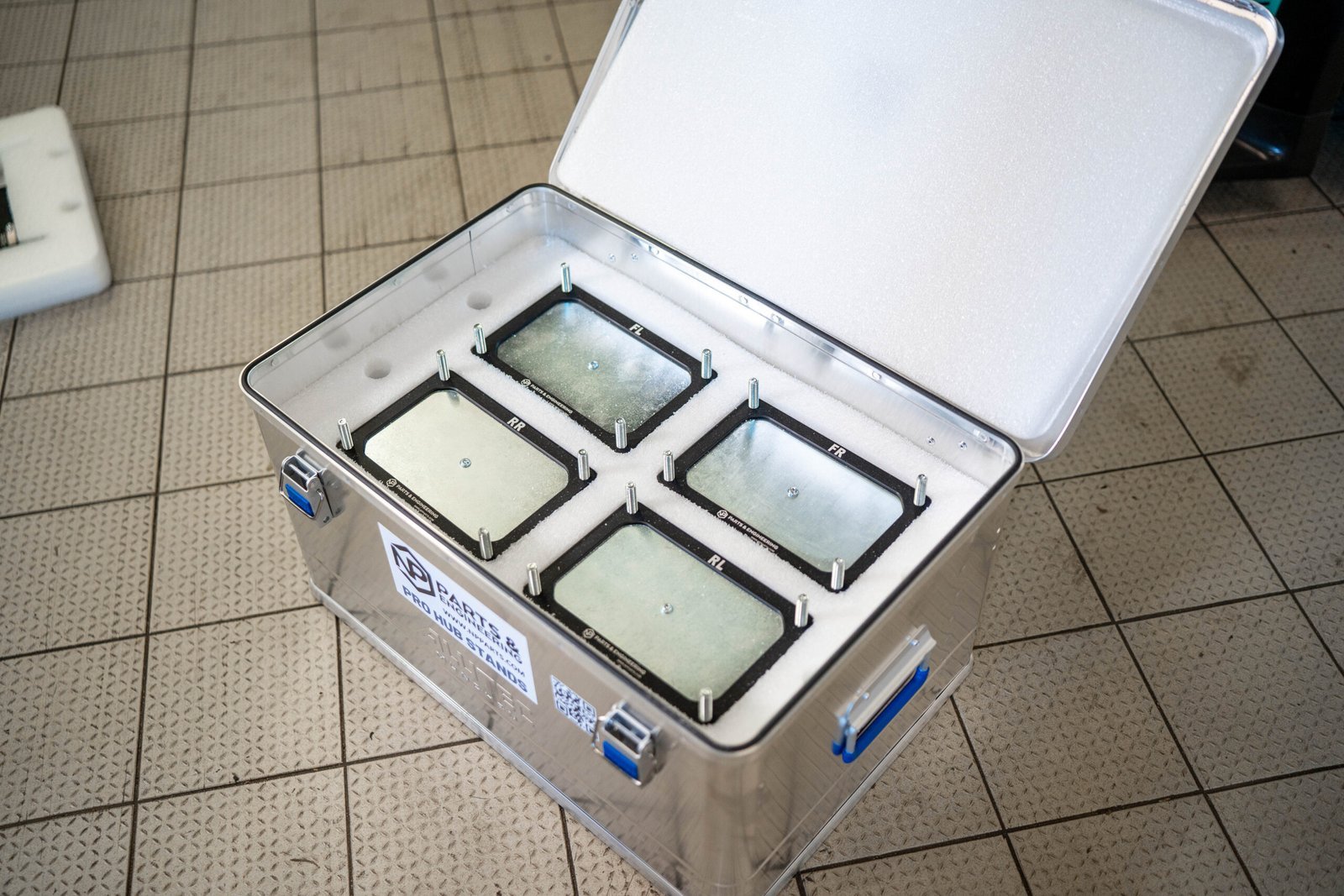

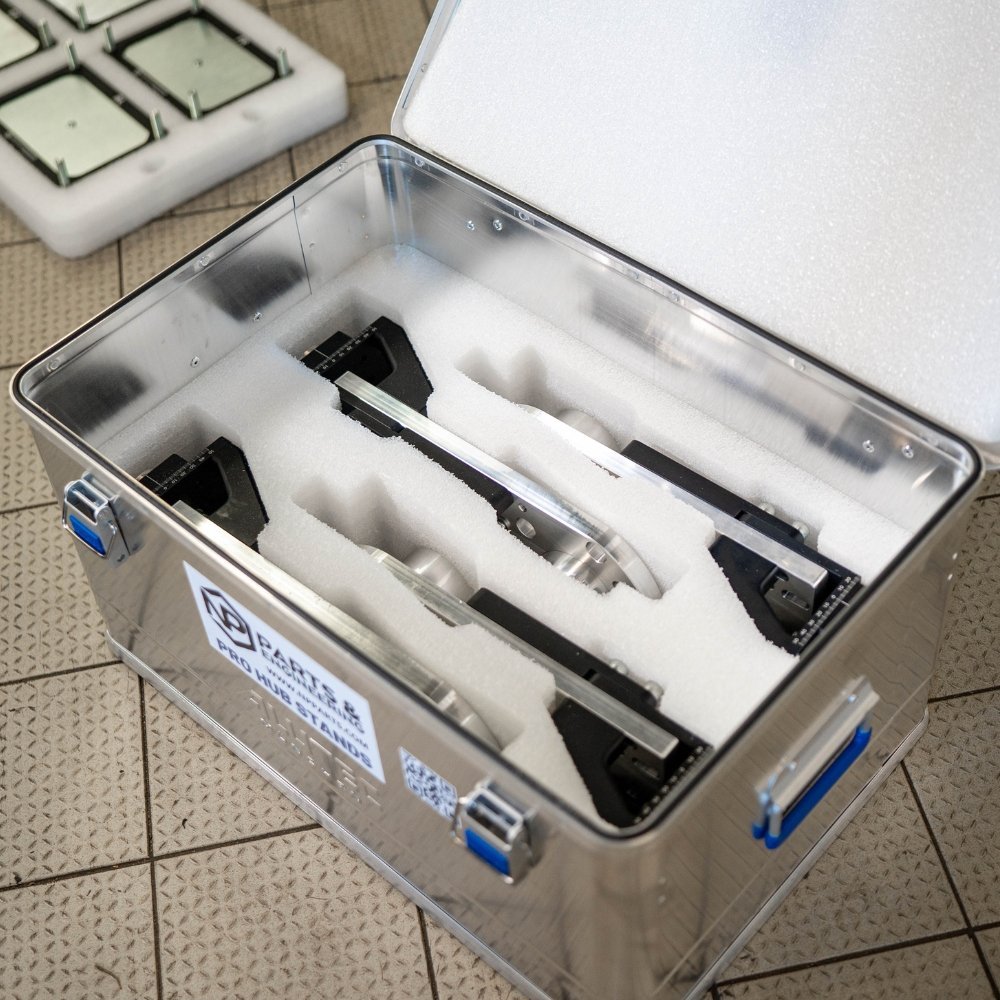

• Hard transportation case

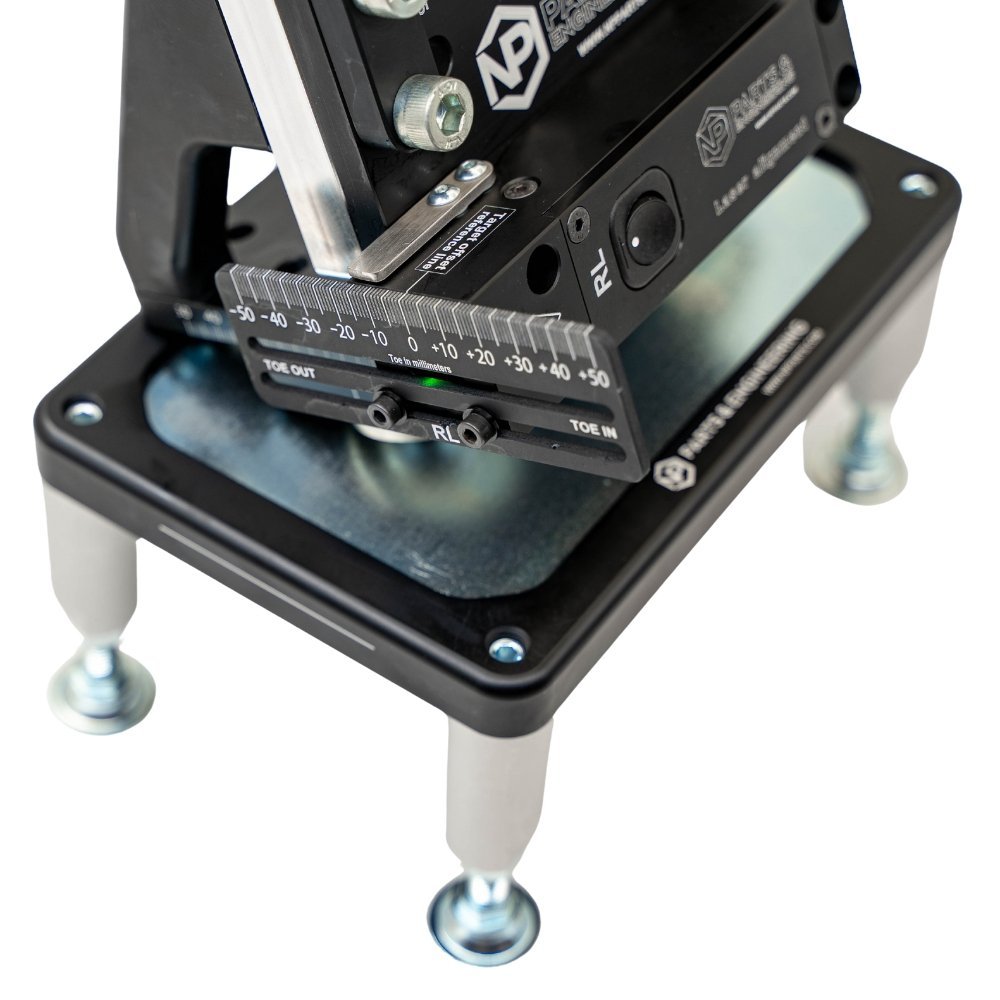

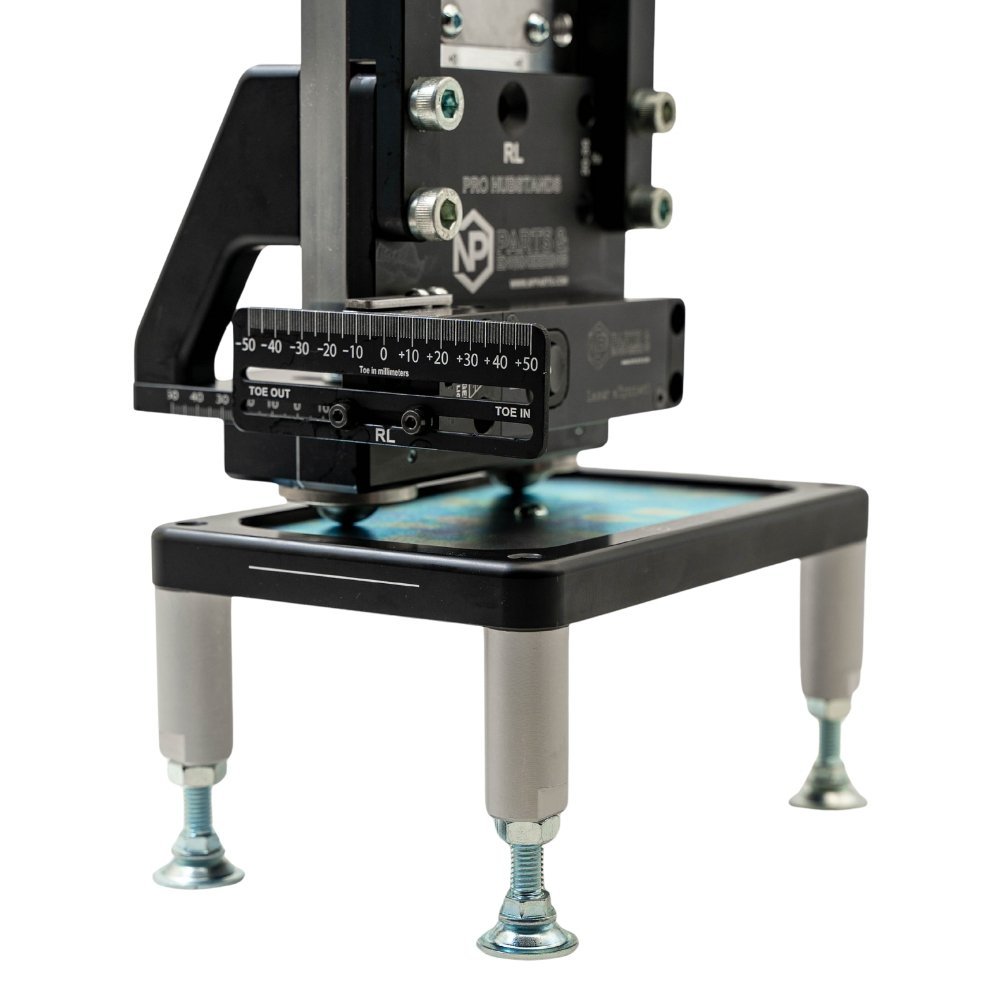

• Base leveling plate raisers
• Laser leveling tool

Measurement Capabilities

• Toe measurement
• Camber measurement
• Caster measurement
• Ride height measurement

Materials & Construction

• 6082-T6 aluminium alloy – the primary structural material across all hub stand components, selected for its strength-to-weight ratio, machinability, and resistance to corrosion in workshop and trackside conditions
• Load transfer bearings – precision rolling elements at the hub interface that eliminate lateral friction during toe measurement, ensuring readings reflect true suspension geometry
• Anodised finish – protective surface treatment that extends component life and maintains dimensional stability across temperature variations

Applications

• Pre-event and post-event suspension geometry checks for circuit racing
• Rally car preparation and geometry baseline setting
• Trackday vehicle setup and alignment verification
• Professional workshop alignment without fixed ramp infrastructure
• Corner weight and ride height baseline measurement
• Endurance racing team pit garage geometry management

NP Pro vs. NP Elite

The NP Pro Car Setup Package (Laser) is a professional-grade system that covers all core suspension geometry measurements. For teams requiring the highest level of performance and integration, the NP Elite Car Setup Package is the top-of-the-line option. The Elite package adds integrated Bluetooth corner weight scales, integrated camber measurement built into the hub stand, and the exclusive Elite Laser Alignment System — a different, more advanced laser product not available with the NP Pro. The NP Pro uses its own laser alignment kit, which is a separate system.

Why This Car Setup Package Is Important

Accurate suspension geometry is fundamental to consistent, predictable handling — and small deviations in toe or camber settings have a measurable impact on tyre wear, lap time, and driver confidence. The NP Pro Car Setup Package (Laser) gives race engineers and workshop technicians the tools to measure and adjust suspension geometry to tight tolerances at any location, without dependence on fixed alignment equipment. For teams operating across multiple venues or with limited workshop facilities, a portable, precision system like this is not a luxury but a practical necessity.

Technical Information

• Product type: Professional car suspension geometry setup package
• Compatibility: Custom 4–5 lug, Universal, and Centerlock hub configurations; brake discs up to 380 mm diameter
• Height adjustment: 325 to 355 mm (radius)
• Offset adjustment: +12 to –50
• Materials: CNC-machined 6082-T6 aluminium, load transfer bearings
• Intended use: Motorsport and professional workshop suspension geometry measurement
• Origin: Manufactured and assembled in the EU (Lithuania)
• Condition: New
• Available configurations: Custom (4–5 lug), Universal, Centerlock

Pricing & VAT

All prices are shown excluding VAT.

For bulk orders or motorsport team inquiries, please contact us.
