NP Alignment plates

NP Alignment Plates

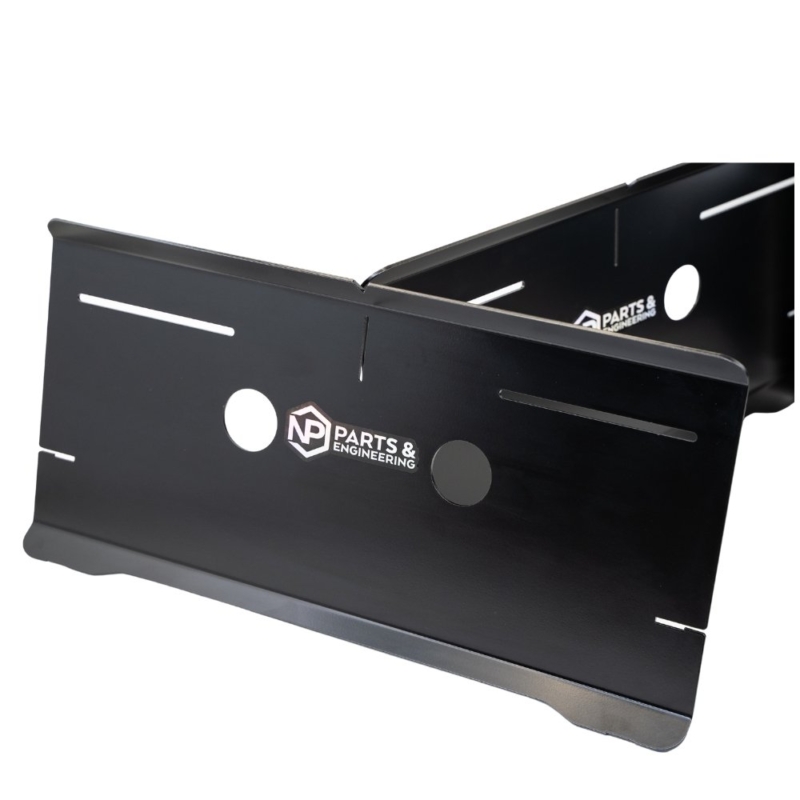

NP Alignment Plates are purpose-designed aluminium measurement aids used to assess and verify vehicle axle alignment during suspension geometry setup. Supplied as a matched pair, these plates provide a repeatable, flat reference surface that supports accurate string alignment, laser alignment, and ride height measurement procedures. Made from aluminium with a durable powder-coat finish, NP Alignment Plates are a practical addition to any motorsport garage or professional workshop geometry setup toolkit.

Alignment plates are placed under the vehicle’s tyres or wheels during geometry work to provide a consistent, level surface reference. This is particularly important when working on uneven floors, ensuring that camber, toe, and ride height measurements reflect the actual suspension geometry rather than floor surface variation.

Key Features & Benefits

• Aluminium construction – lightweight and corrosion-resistant, suitable for regular workshop use without degradation over time
• Powder-coated black finish – durable surface treatment that protects against chips, scratches, and workshop chemical exposure
• Supplied as a set of 2 – covers both sides of an axle for symmetrical alignment measurement in a single setup
• Flat reference surface – provides a consistent, level base that supports accurate geometry readings regardless of floor surface condition
• Compatible with string and laser alignment methods – works as a standardised measurement platform with both string-line and laser-based toe measurement systems

Available Options & Pricing

• NP Alignment Plates (set of 2) – €78.50

All prices are shown excluding VAT.

Materials & Construction

• Aluminium – lightweight structural material providing a rigid, flat surface for measurement accuracy
• Powder-coat black finish – protective surface coating for long-term durability in workshop conditions

Applications

• Axle alignment measurement during motorsport geometry setup
• Floor compensation reference during hub stand and string alignment procedures
• Ride height measurement baseline surface
• Professional workshop alignment work on uneven floors
• Trackside geometry verification for circuit and rally preparation

Why Alignment Plates Are Important

Reliable suspension geometry measurement depends on consistency. Placing a vehicle on an uneven or textured floor surface introduces measurement error that can invalidate camber and ride height readings. Alignment plates provide a controlled, flat interface under the tyre contact patch, ensuring that geometry measurements are taken from a consistent reference plane. This is especially valuable in temporary workshop settings, garages with damaged or uneven floors, and trackside environments where floor quality cannot be guaranteed.

Technical Information

• Product type: Vehicle alignment measurement plates
• Material: Aluminium
• Finish: Powder-coated black
• Supplied as: Set of 2
• Intended use: Axle alignment and suspension geometry measurement
• SKU: NP TP
• Condition: New

Pricing & VAT

All prices are shown excluding VAT.

For bulk orders or motorsport team inquiries, please contact us.
