LITE HUB STANDS

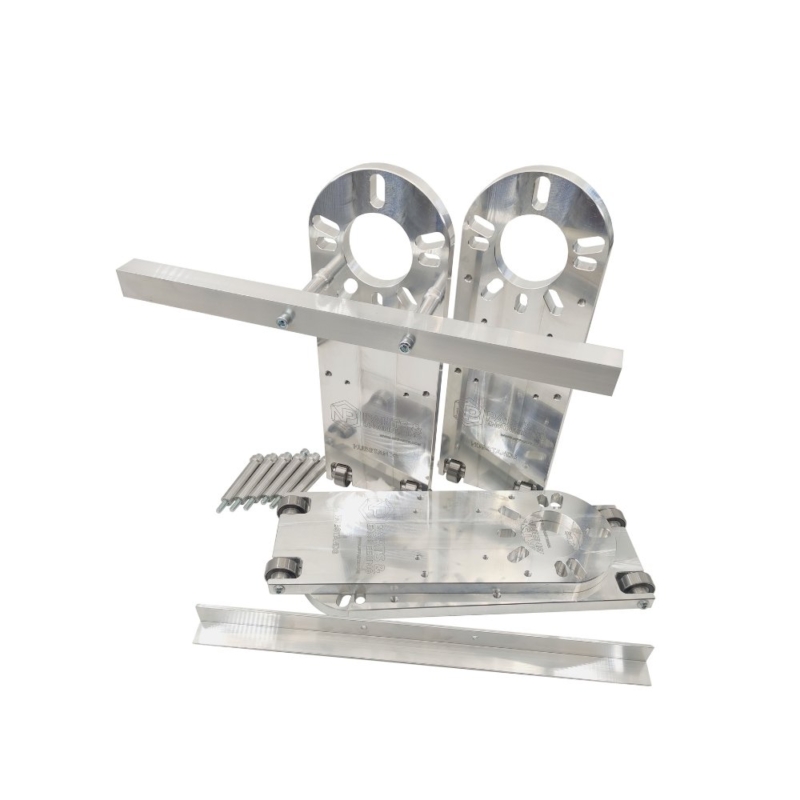

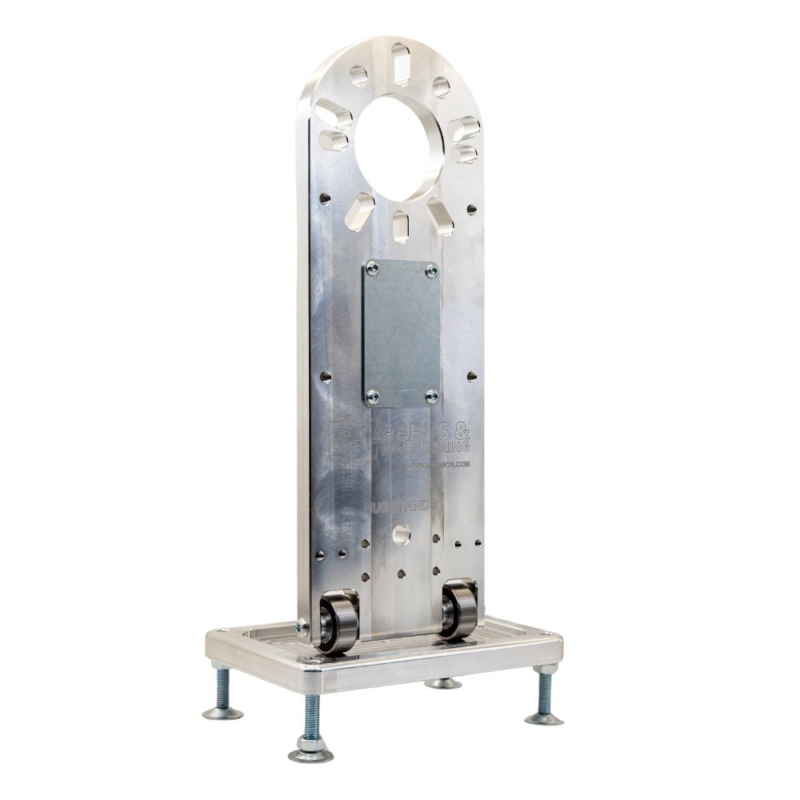

The Lite Hub Stand System is an amateur-grade suspension setup and measurement system designed for simplicity, accuracy, and ease of use. Engineered primarily for string alignment setups, with the option to upgrade by adding laser alignment modules separately. Featuring a non-adjustable design with a universal mounting pattern compatible with all 4 and 5-hole PCDs ranging from 98 to 130. Like all our products, it is designed, CNC machined, and assembled in-house at NP Parts in Lithuania. A reliable and cost-effective solution for enthusiasts, workshops, and amateur racing teams.

DESIGNED AND MACHINED IN LITHUANIA! πŸ‡±πŸ‡Ή

All Measurements With One System

Camber/Caster (With additional tool)

NP Lite Hub stands – Universal PCD full kit - NP Lite Hub stands - Universal PCD full kit | NPParts

Toe Measurement

Camber/Caster

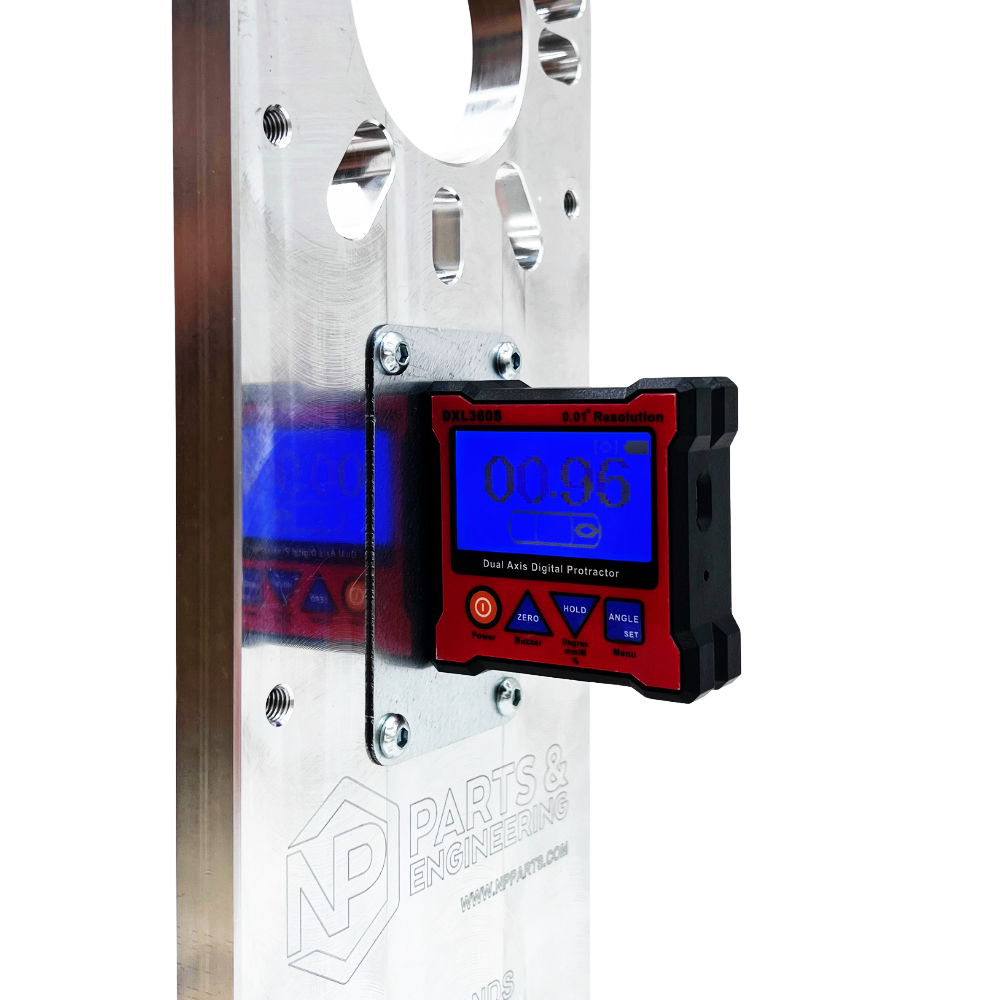

Camber and caster are related suspension angles measured using the digital dual-axis angle reader, available separately as an optional accessory.

Caster Measuring Formula

Procedure:

  1. Turn the wheel 15Β° to the left of center and record the camber reading.
  2. Turn the wheel 15Β° to the right of center and record the camber reading.
  3. Caster = (right reading βˆ’ left reading) Γ— 2

Example

Left: βˆ’1.0Β°, Right: +0.5Β° β†’ (0.5 βˆ’ (βˆ’1.0)) Γ— 2 = 3.0Β° caster

Toe Measurement

NP Lite Hub stands – Universal PCD full kit - NP Lite Hub stands - Universal PCD full kit | NPParts

TOE measurement is performed using the string alignment method, with alignment offsets included in the hub stand kit for accurate setup. A laser alignment system is also available separately as an optional upgrade.

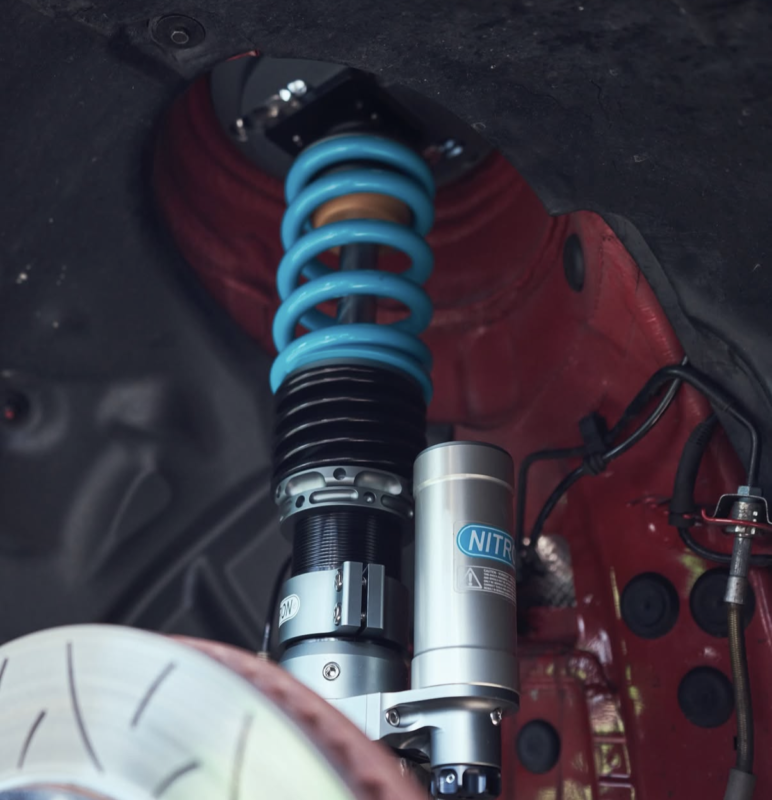

Suspension Adjustment

Suspension adjustments are easily accessible with the vehicle positioned on hub stands, as the wheels are removed and do not obstruct access.

This allows faster and more precise coilover adjustments as well as accurate suspension geometry setup.

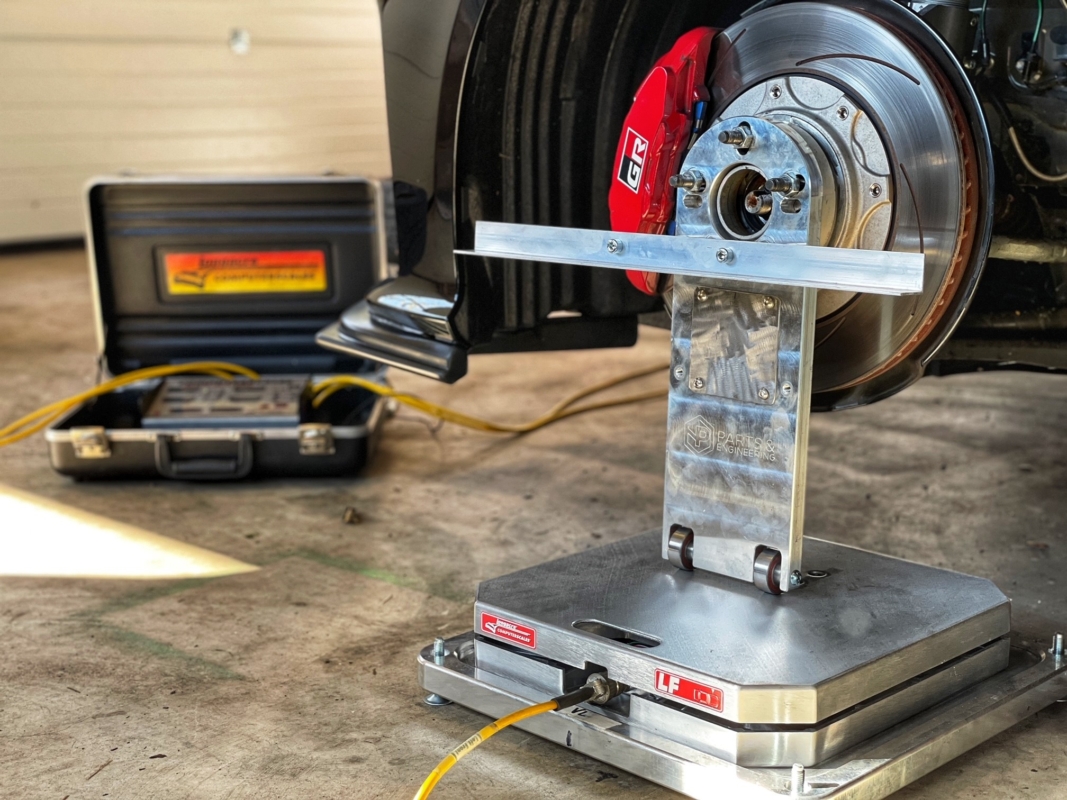

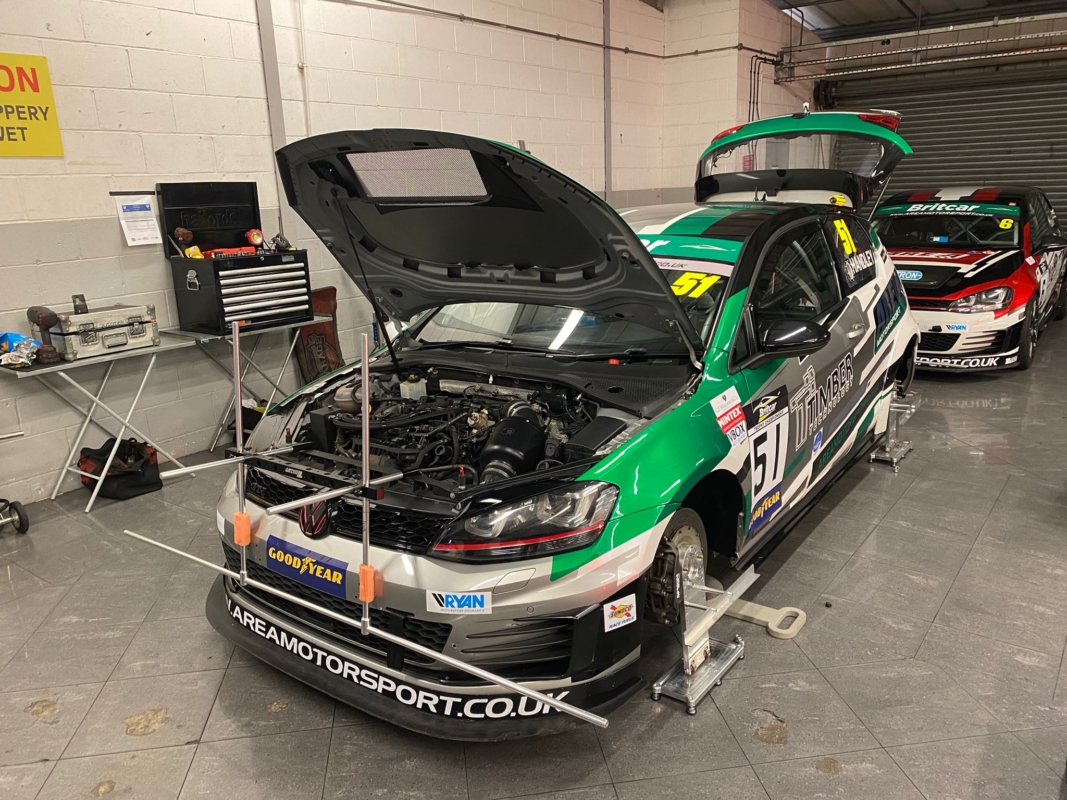

Client pictures and feedback

β˜…β˜…β˜…β˜…β˜…

Perfect setup solution for our Supra. Super accurate, easy to use, and the quality is outstanding

– Marco

β˜…β˜…β˜…β˜…β˜…

β€œThe Lite Hubstands are the perfect tool for both my home garage and the workshop. I can do all my suspension work and easily measure toe with great accuracy. Simple, effective, and an amazing tool for the price.”

β€” Kyle
