ELITE HUB STANDS

NP Elite hub stand system next to a Porsche 911 GT2 RS Clubsport race car in the workshop

Elite Hub Stand System is a professional-grade suspension setup and measurement system. Designed for maximum workflow efficiency and precision. Like all our products, it is designed, CNC machined, assembled and calibrated in-house at NP Parts in Lithuania. Trusted by many TOP teams and growing in popularity. As a race car alignment system, it combines corner weight and alignment setup in one workflow.

DESIGNED AND MACHINED IN LITHUANIA! 🇱🇹

All Measurements With One Race Car Alignment System

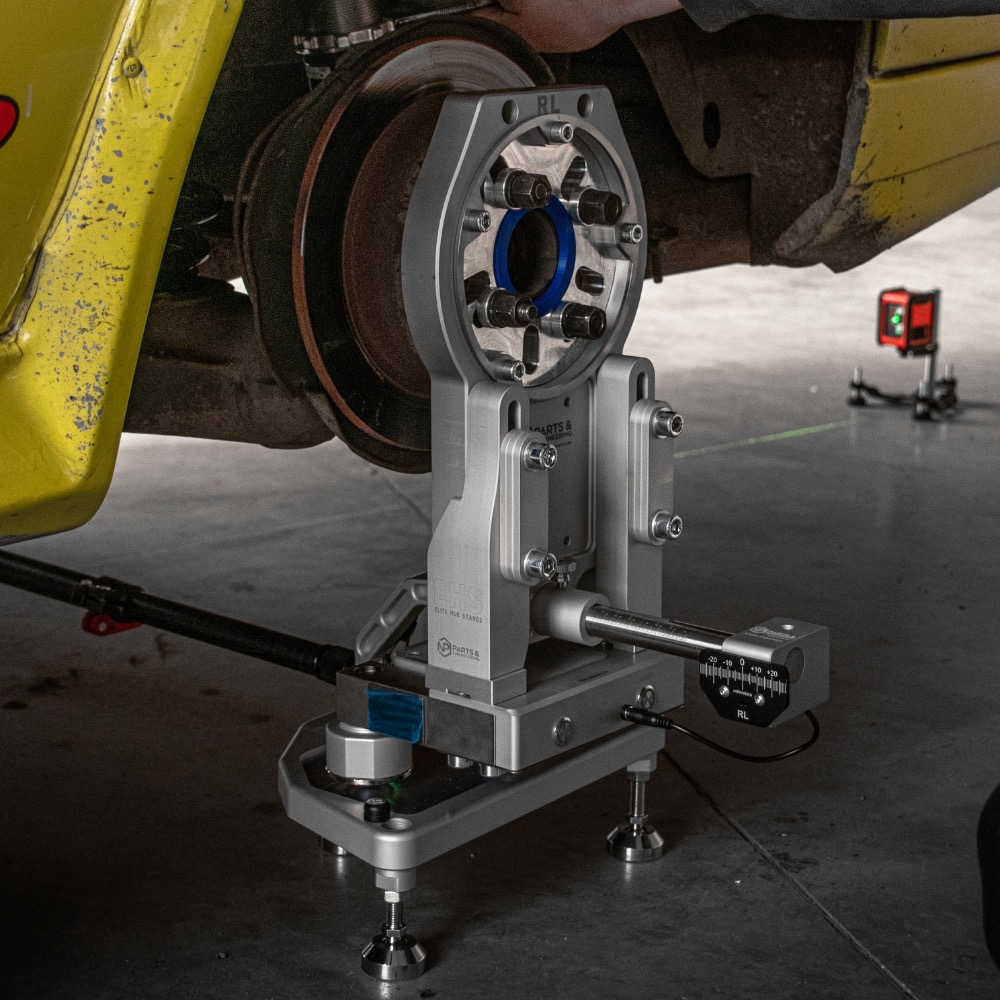

Elite hub stand mounted on a wheel hub with camber sensor and laser alignment module

Camber/Caster

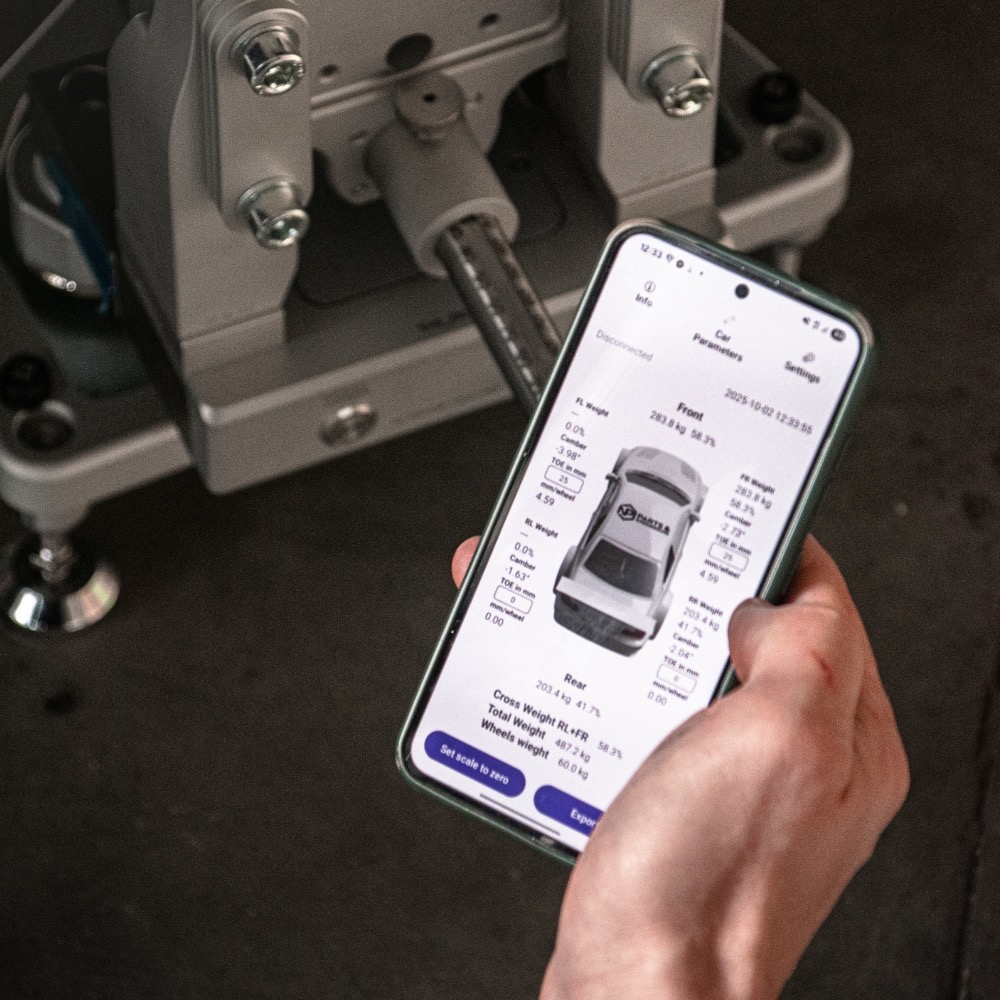

Corner weights from the Elite hub stand load cells shown in the NP Parts app on a phone

Corner Weight

Ride height measurement with a laser line projected onto a measuring tape under the car

Ride Height Measurement

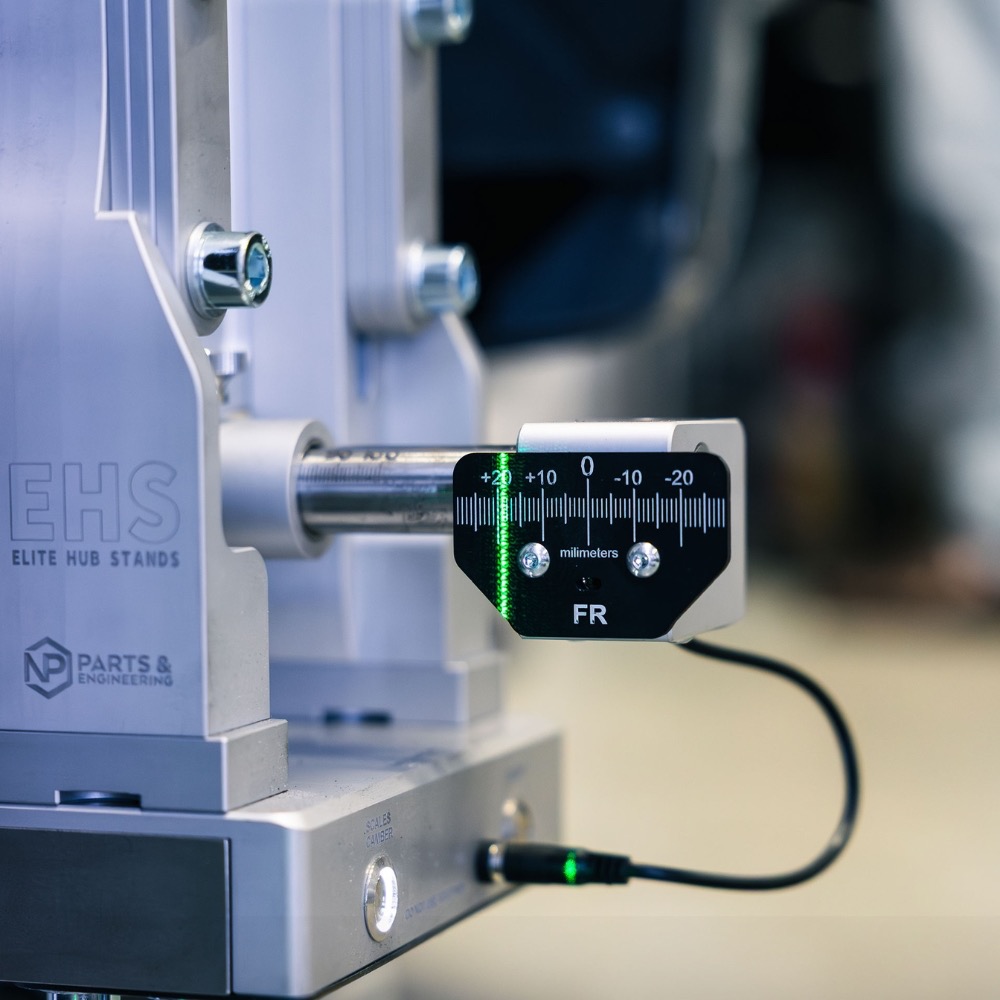

Elite hub stand laser alignment module showing the toe reading on a millimetre scale

Toe Measurement

Camber/Caster

Elite hub stand mounted on a wheel hub with camber sensor and laser alignment module

Camber and caster are related and are measured using the camber sensor included in the EHS Electronics Package together with the digital dual-axis angle reader.

Camber values are shown individually for each wheel in the application.

Caster Measuring Formula

Procedure:

  1. Turn the wheel 15° to the left of center and record the camber reading.
  2. Turn the wheel 15° to the right of center and record the camber reading.
  3. Caster = (right reading − left reading) × 2

Example

Left: −1.0°, Right: +0.5° → (0.5 − (−1.0)) × 2 = 3.0° caster

Corner Weight

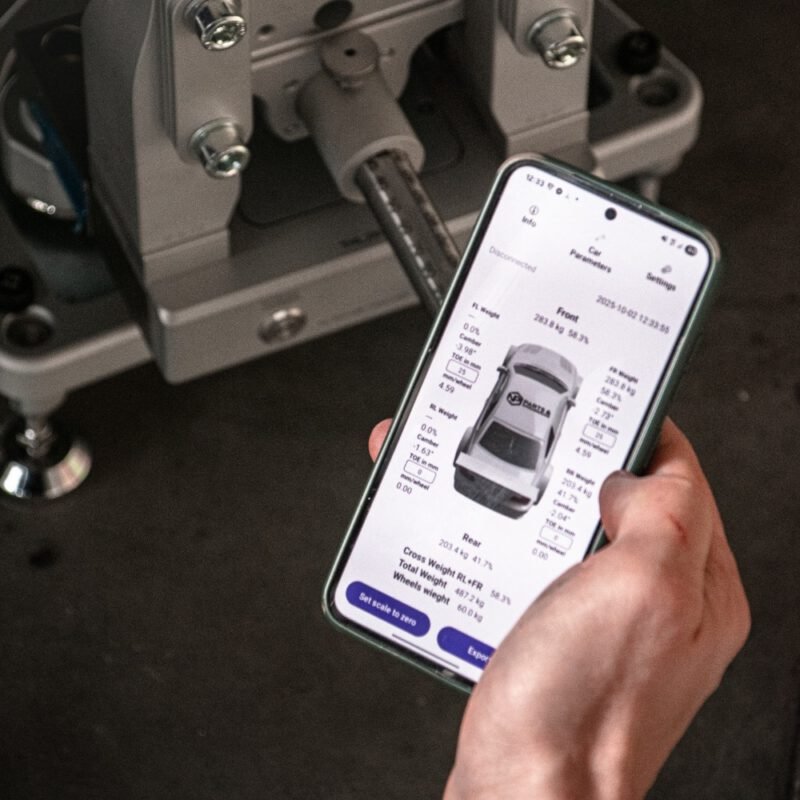

Corner weights from the Elite hub stand load cells shown in the NP Parts app on a phone

Corner weight is measured using load cells integrated into the electronics package of each hub stand, with all data displayed directly on a phone or tablet.

The measurements are independent of the position of the base leveling plates, as the system reads the load directly through the hub stands and compensates for temperature variations, ensuring high accuracy.

The software displays individual corner weights, cross weight and axle weights, and also allows the use of wheel weights instead of hub stand weights.

User calibration is available when matching scrutineering requirements is necessary.

Ride Height Measurement

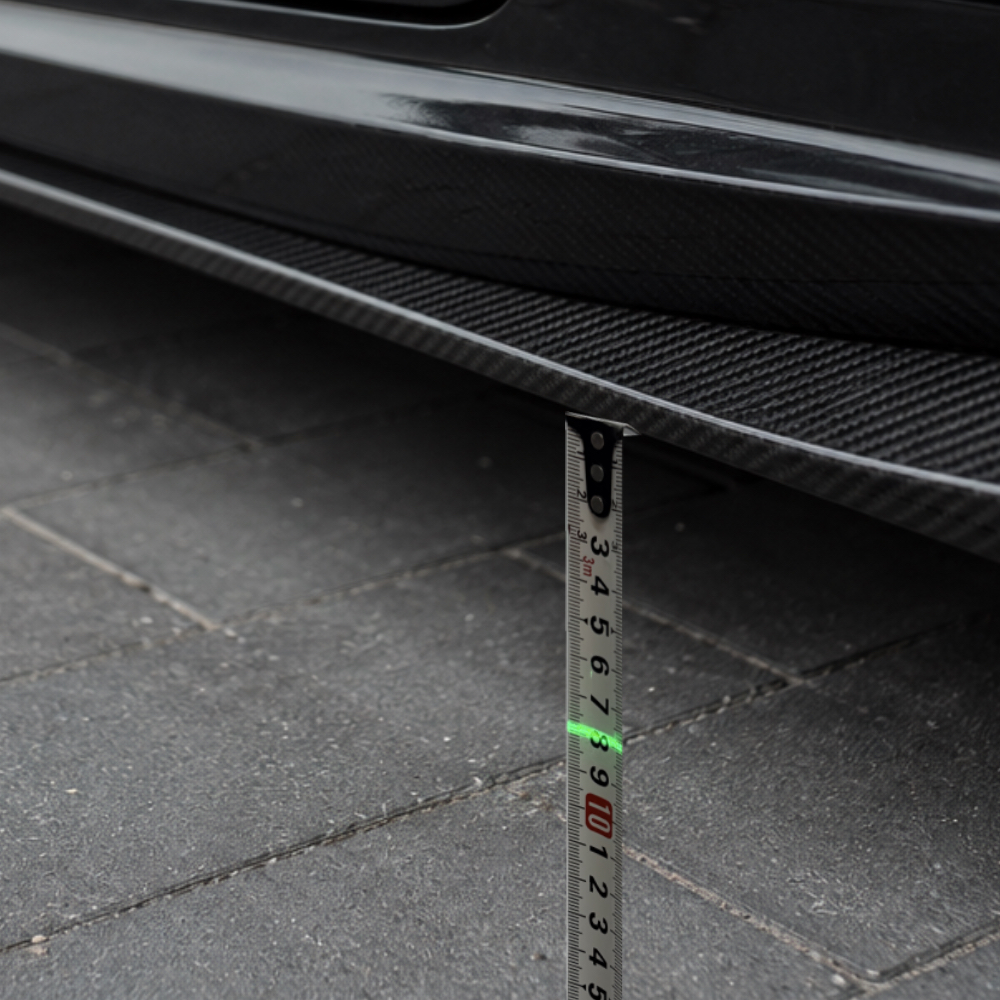

Ride height measurement with a laser line projected onto a measuring tape under the car

Ride height is measured using two tools included in the kit: a laser leveling tool with stand and a measuring tape.

After the hub stand base plates are leveled, the laser leveling tool is lowered by 10 millimeters on its stand, and the measurement is taken from the vehicle floor.

The laser line projected onto the measuring tape indicates the ride height value.

Toe Measurement

Elite hub stand laser alignment module showing the toe reading on a millimetre scale

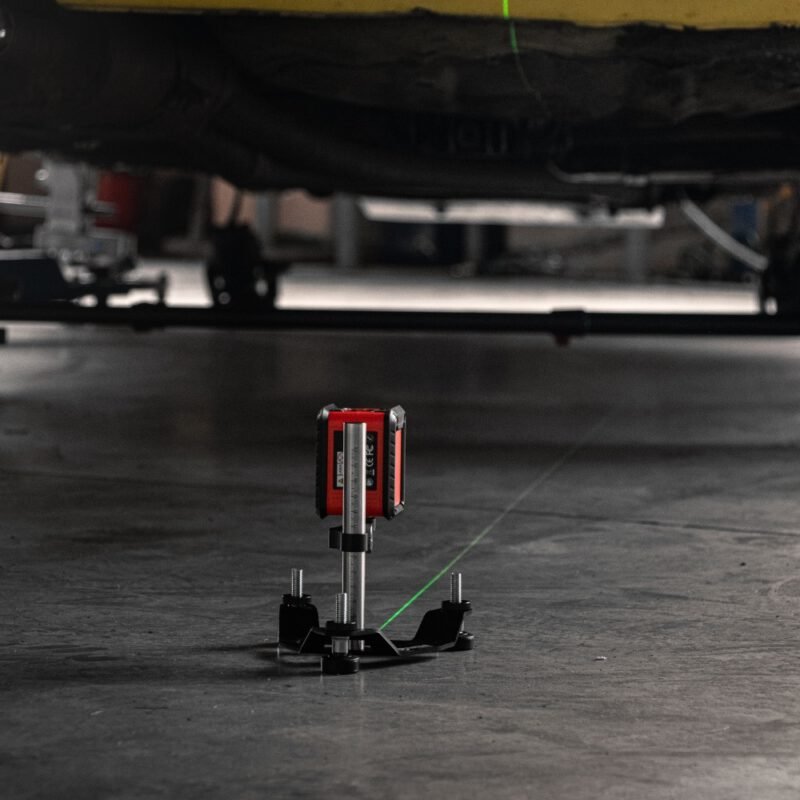

Toe measurement is performed using the Elite Laser Alignment System, which is designed for fast and accurate setup.

Once the vehicle is positioned on the hub stands, the track-width bar is attached to both laser modules and locked to maintain a fixed length, then the system is centered on the hub stands and the laser modules are secured in place.

Without unlocking the track-width bar, the system is moved to the opposite axle and the process is repeated.

After setup, the laser alignment system is activated and measurements are read directly from the laser targets, with toe values calculated in the EHS software in the preferred units (mm per wheel or degrees).

All setup data can be exported in PDF or XML format for documentation and analysis.

Suspension Adjustment

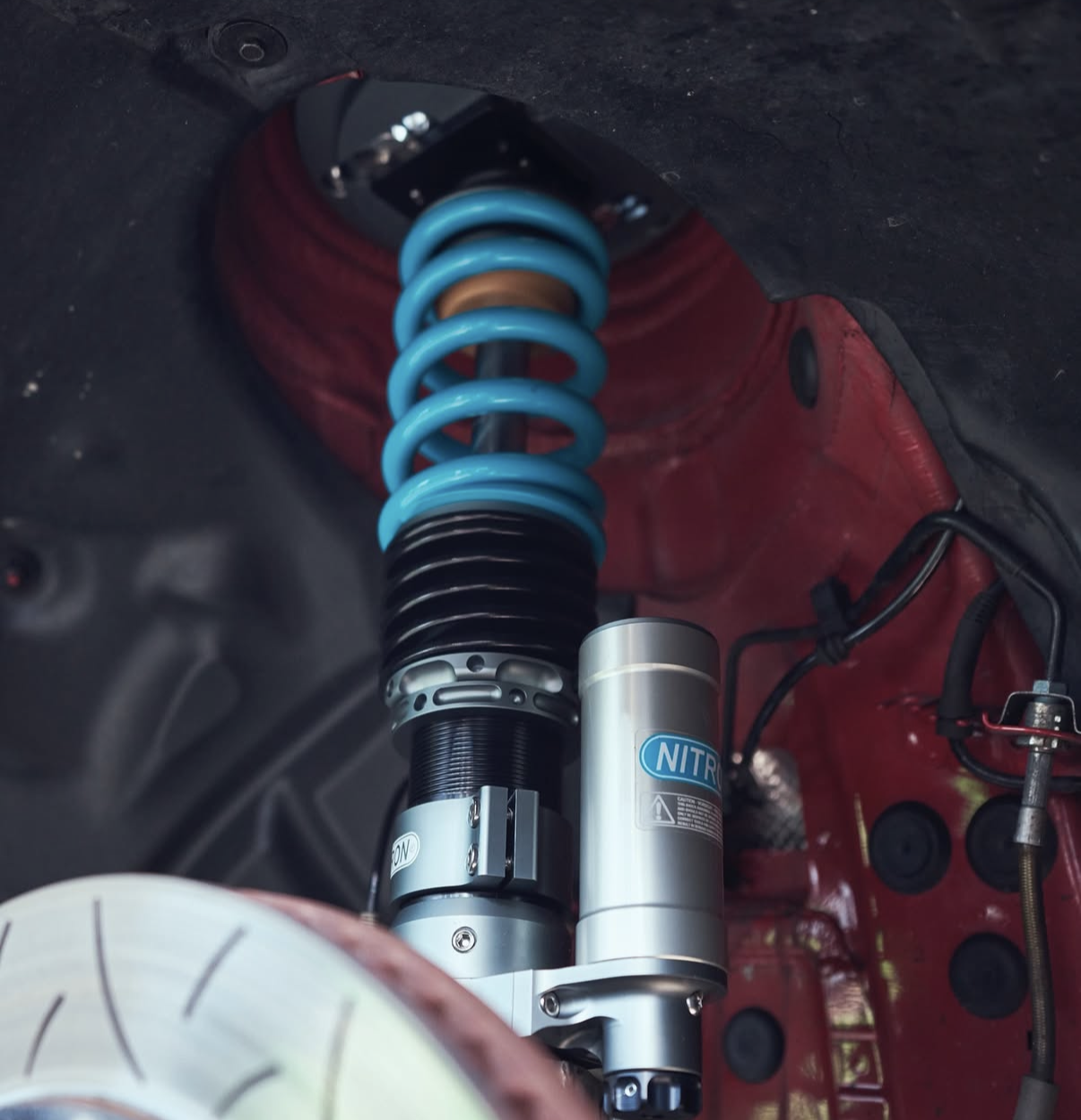

Coilover suspension adjustment on a race car during hub stand setup

Suspension adjustments are easily accessible with the vehicle positioned on hub stands, as the wheels are removed and do not obstruct access.

This allows faster and more precise coilover adjustments as well as accurate suspension geometry setup.

Mounting Solutions

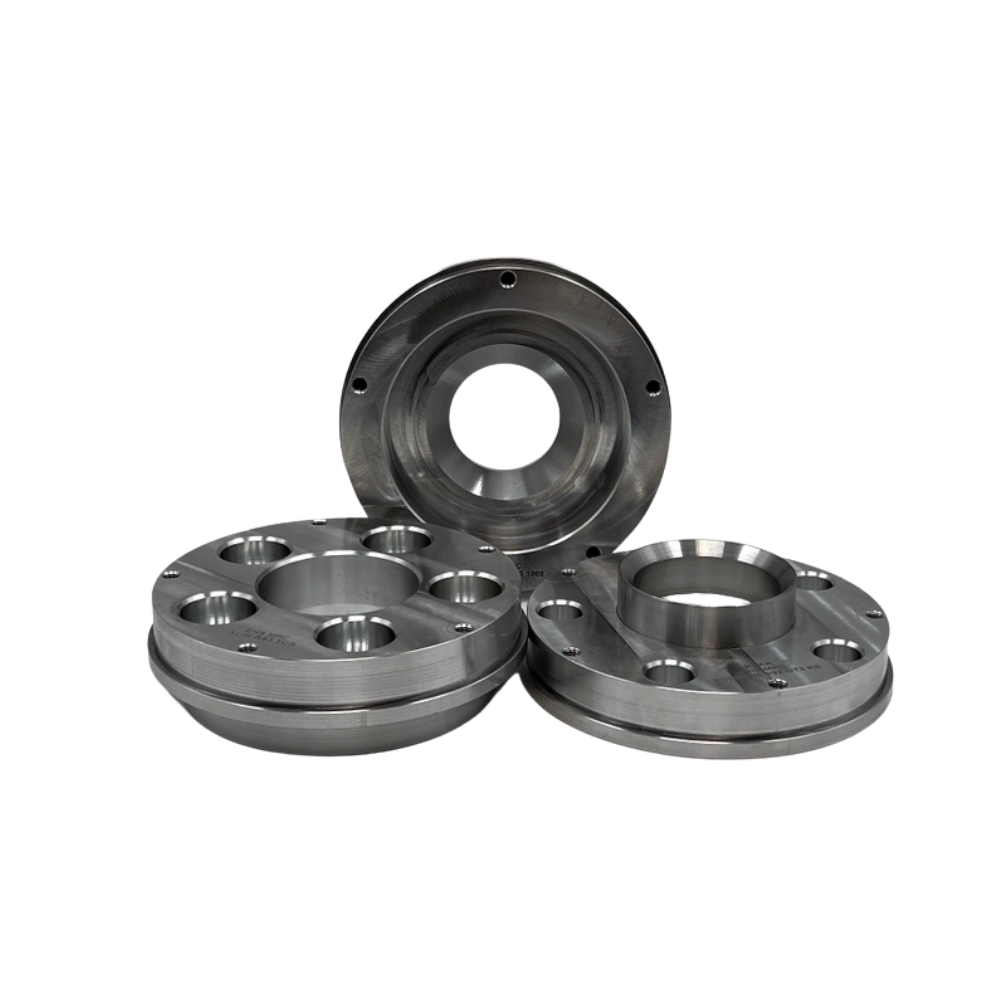

CNC machined Elite hub stand mounting adapters for different wheel hubs

The system can be adapted to suit any application.

Mounting plates are available for: specific 4- and 5-lug PCDs, universal mounting plates covering PCDs from 98 to 130 for all 4- and 5-lug configurations, as well as centerlock mounting plates.

Custom solutions can also be developed to meet specific customer requirements.

Application

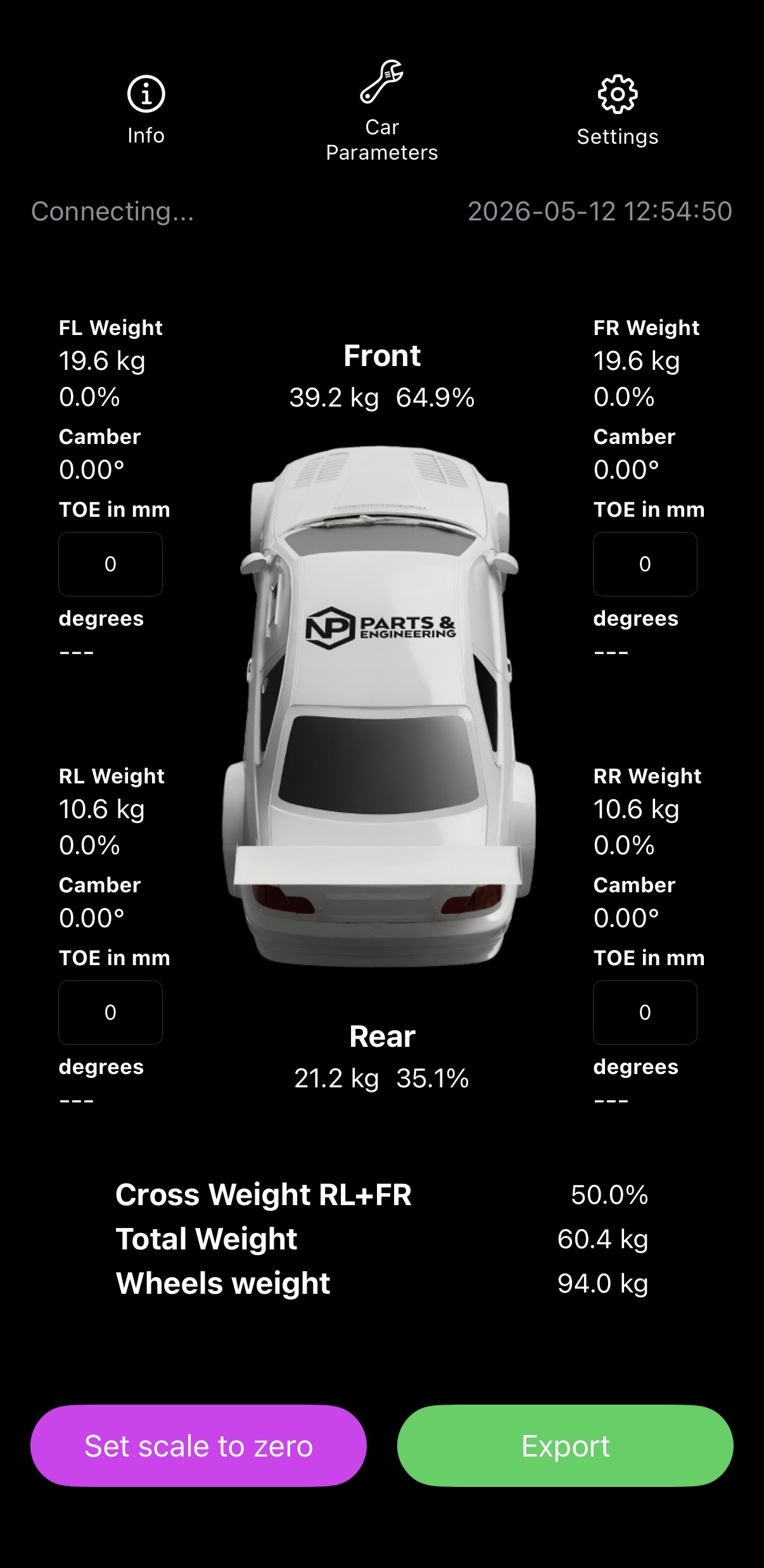

NP Parts hub stand app showing corner weights, camber and toe for each wheel
Screenshot

The application is easy to operate and presents all key vehicle parameters on a single page, including camber, corner weight, cross weight and total vehicle weight.

Toe measurements from the laser alignment system can be entered manually, and the application calculates toe values in the selected measurement units.

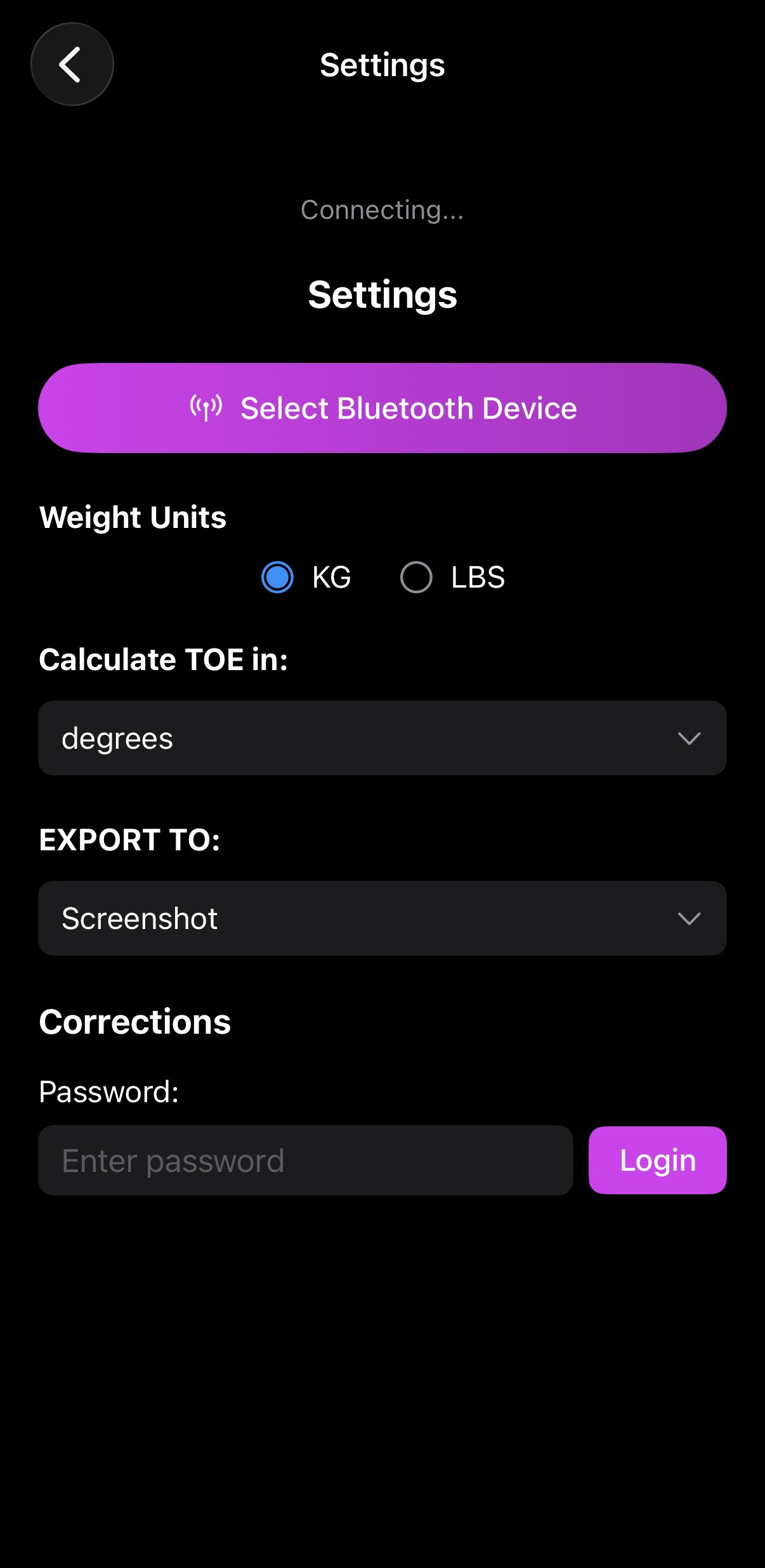

NP Parts hub stand app settings with Bluetooth device, weight units and toe units
Screenshot

Within the settings tab, users can choose how weight values are displayed in either kilograms or pounds.

Toe calculation units can be selected as millimeters per wheel or degrees.

The export method can also be selected, including PDF, XLS or screenshot.

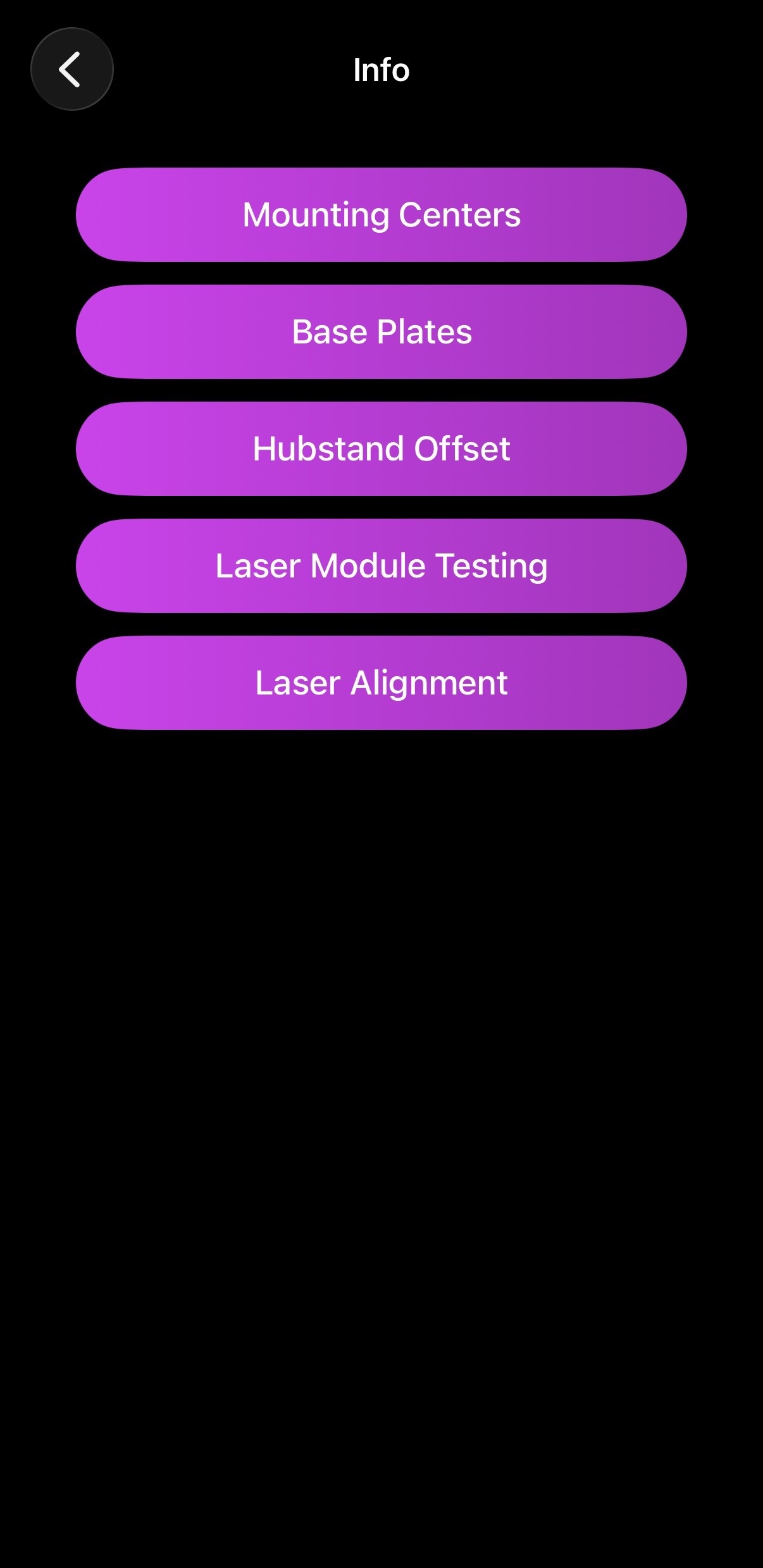

NP Parts hub stand app info menu with mounting centers, base plates and laser alignment
Screenshot

The Info tab provides access to all system manuals in PDF format.

These manuals include detailed instructions on equipment operation.

Customer Testimonials

Mercedes-AMG GT3 race car on track, set up with the NP Elite race car alignment system

★★★★★

We have been using the system for a while now, and honestly, it has been a game-changer for us. The measurements are always consistent and repeatable, which makes our work so much smoother. On top of that, it is really easy to use, nothing complicated, just works. We genuinely enjoy working with it!

Alex, Moto Park Academy

★★★★★

“The Elite Hub Stand System is a perfect solution for professional racing teams and anyone serious about working on their cars. I was able to measure toe and camber down to the minute, do corner weighting, and dial in the coilover setup incredibly quickly. The system is accurate, fast, and very professional.”

Mykolas

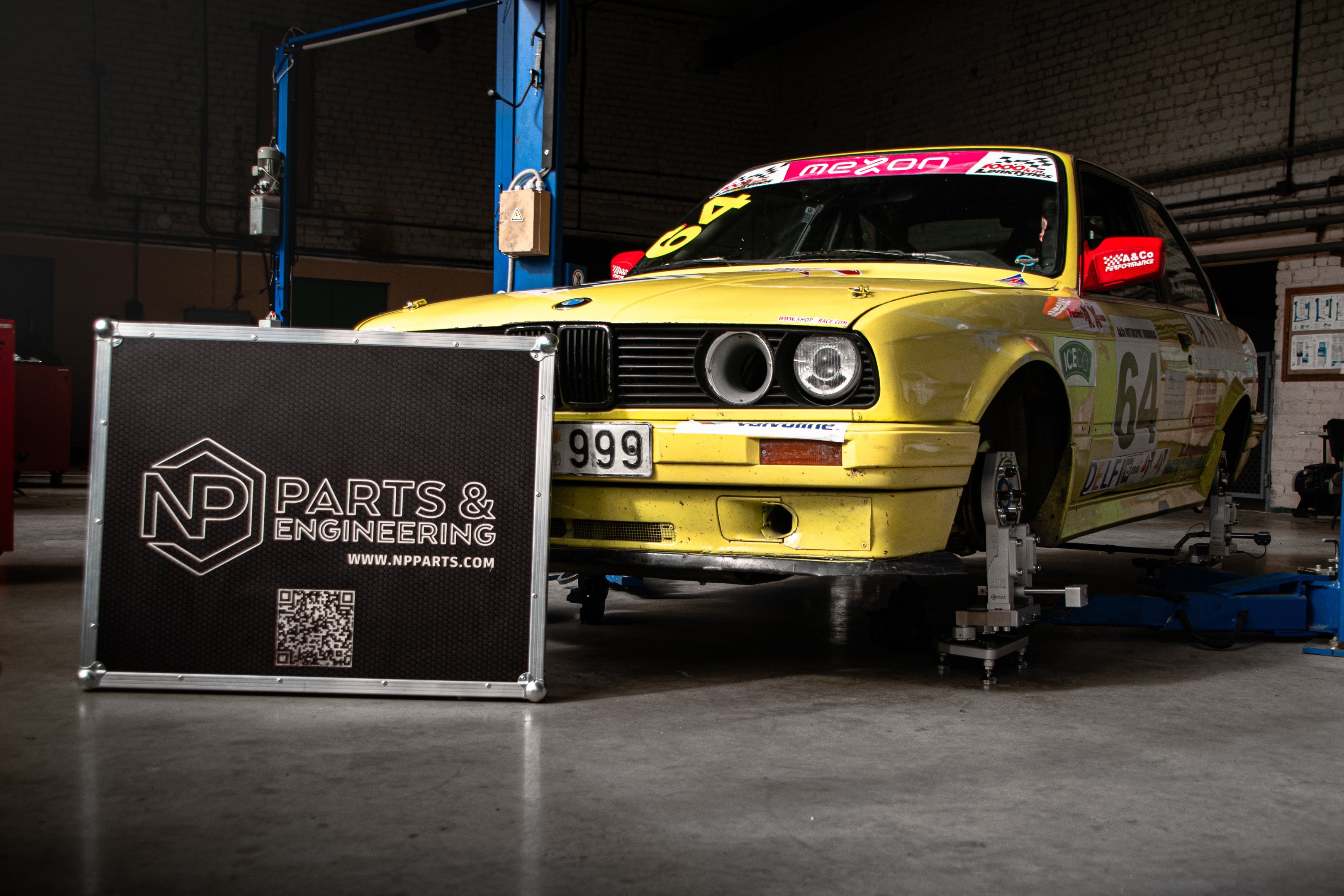

BMW E30 race car on NP hub stands in the workshop next to an NP Parts flight case

Race Car Alignment System FAQ

What makes the Elite a complete race car alignment system?

It measures every key setup value with one set of hub stands: camber and caster with the camber sensor and dual-axis angle reader, corner weights with integrated load cells, ride height with the laser leveling tool, and toe with the Elite Laser Alignment System. Everything is shown in the NP Parts app. Read more about wheel alignment basics.

Can I do corner weight and alignment setup at the same time?

Yes – this is the main advantage of the Elite system. The car stays on the hub stands while you adjust coilovers, and camber, corner weights, cross weight and total weight are shown on one page in the app, so you can re-check every value right after each change.

How are the corner weights measured?

The load is read directly through each hub stand, so the result does not depend on the position of the base leveling plates. The system compensates for temperature, shows corner, cross and axle weights, and offers user calibration when you need to match scrutineering scales.

Which data can I export?

Setup data can be exported as PDF, XLS or a screenshot from the app, with weights in kilograms or pounds and toe in millimetres per wheel or degrees.

Will the Elite hub stands fit my car?

The Elite system uses interchangeable mounting plate centers: specific 4- and 5-lug PCD plates, universal plates for PCDs from 98 to 130, and centerlock plates. Custom solutions are available, and easy rotation works with LSD or blocked differentials.

How is the Elite race car alignment system transported?

It ships in a stackable hard transportation case, with adjustable height and offset and three-legged base leveling plates, ready for the workshop or the pit lane.

Get the Elite Hub Stand System

See configurations, prices and order the NP Elite Hub Stands – or compare them with our Pro and Lite systems.
