BMW E30/E36/E46 Billet Front Suspension Kit

---

Key Features & Benefits of the BMW Billet Front Suspension Kit

Every component of the BMW Billet Front Suspension Kit was designed around one goal: remove every trace of compliance from the front axle so the geometry you set on the rack is the geometry you get on track.

• CNC-machined billet aluminium – far stiffer than pressed steel factory arms, with machined lightening pockets that cut unsprung weight.
• Motorsport spherical bearings – zero deflection under braking and cornering loads, so the wheel stays where the geometry puts it.
• Length-adjustable tension rods – lets you dial in caster and correct alignment on a lowered or modified chassis.

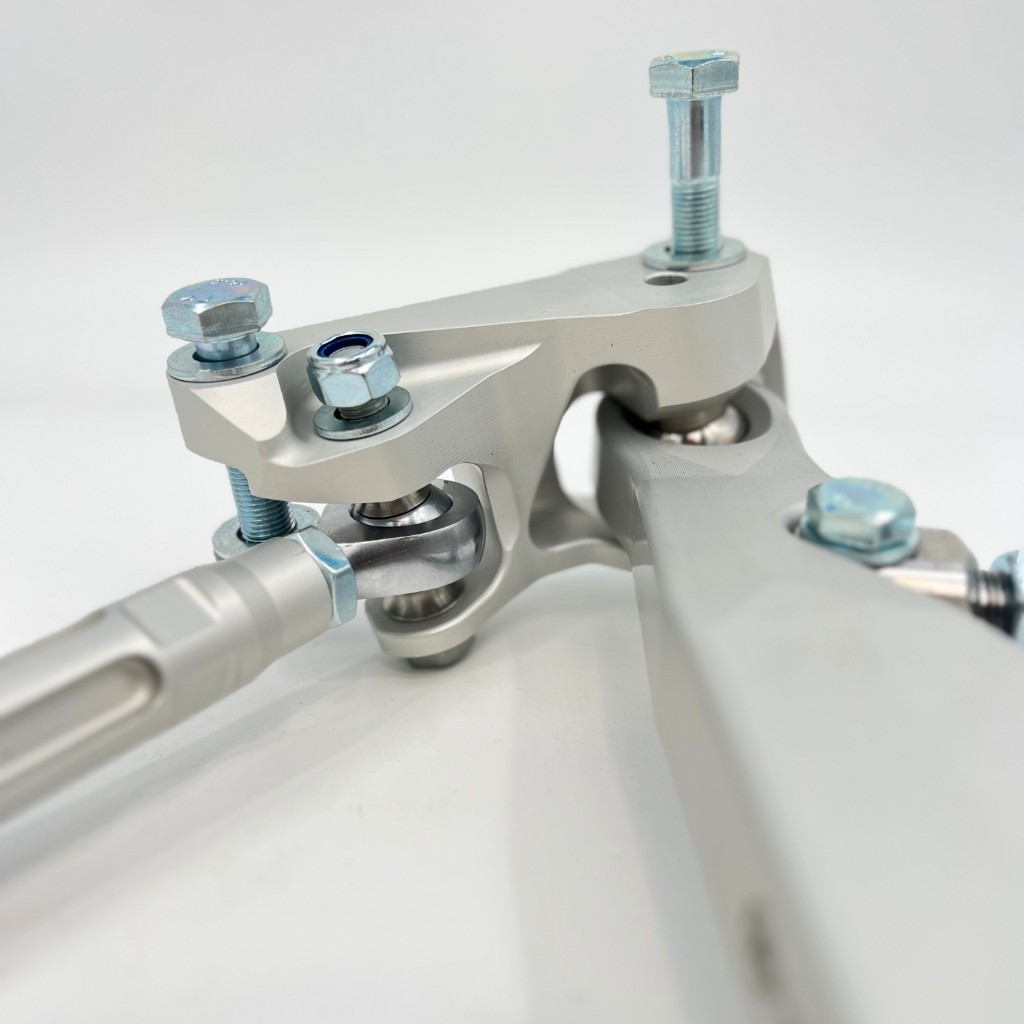

• Billet chassis brackets – purpose-machined mounts that locate the arms accurately and spread load into the chassis.
• Anti-roll bar drop link included – keeps the bar correctly loaded once ride height is changed.
• Complete hardware pack – bolts, nyloc nuts and washers are supplied, so nothing holds up the build.
• Three chassis covered – one kit suits BMW E30, E36 and E46 front axles.

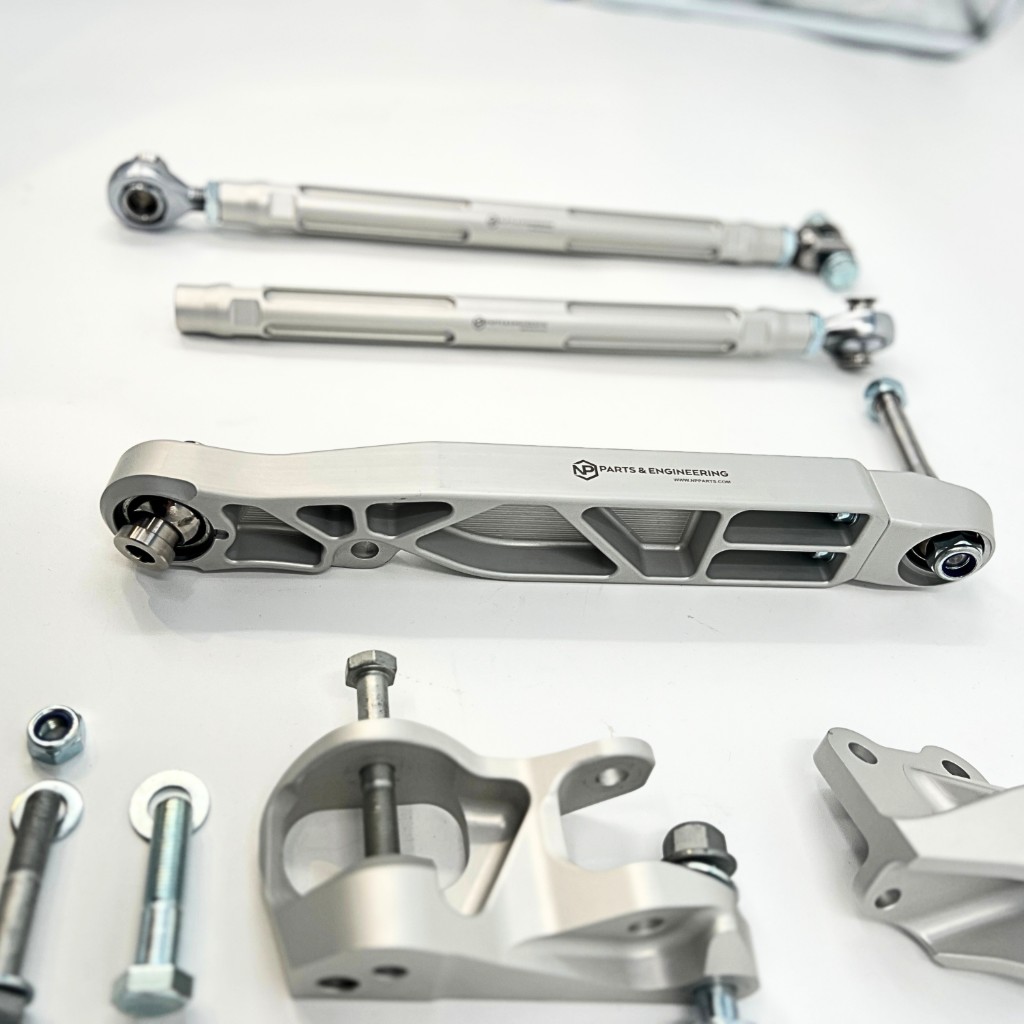

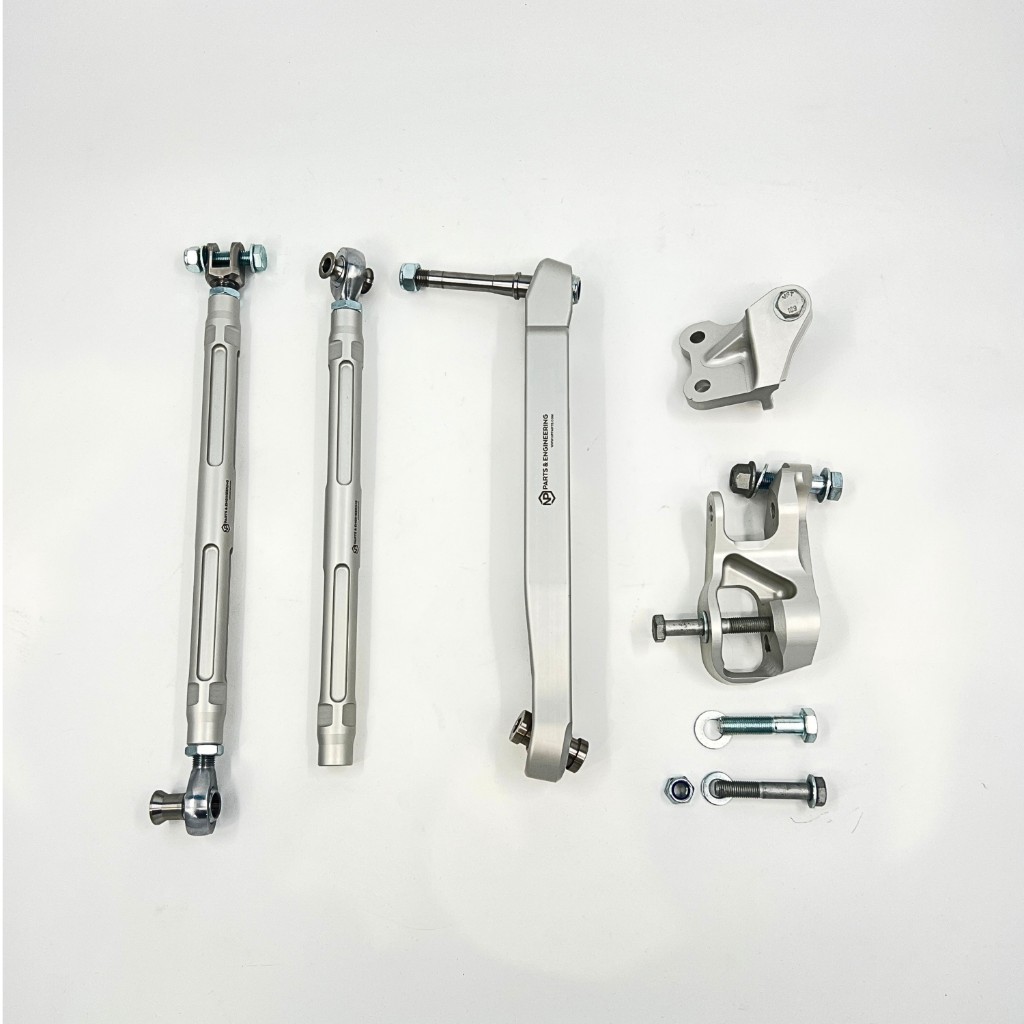

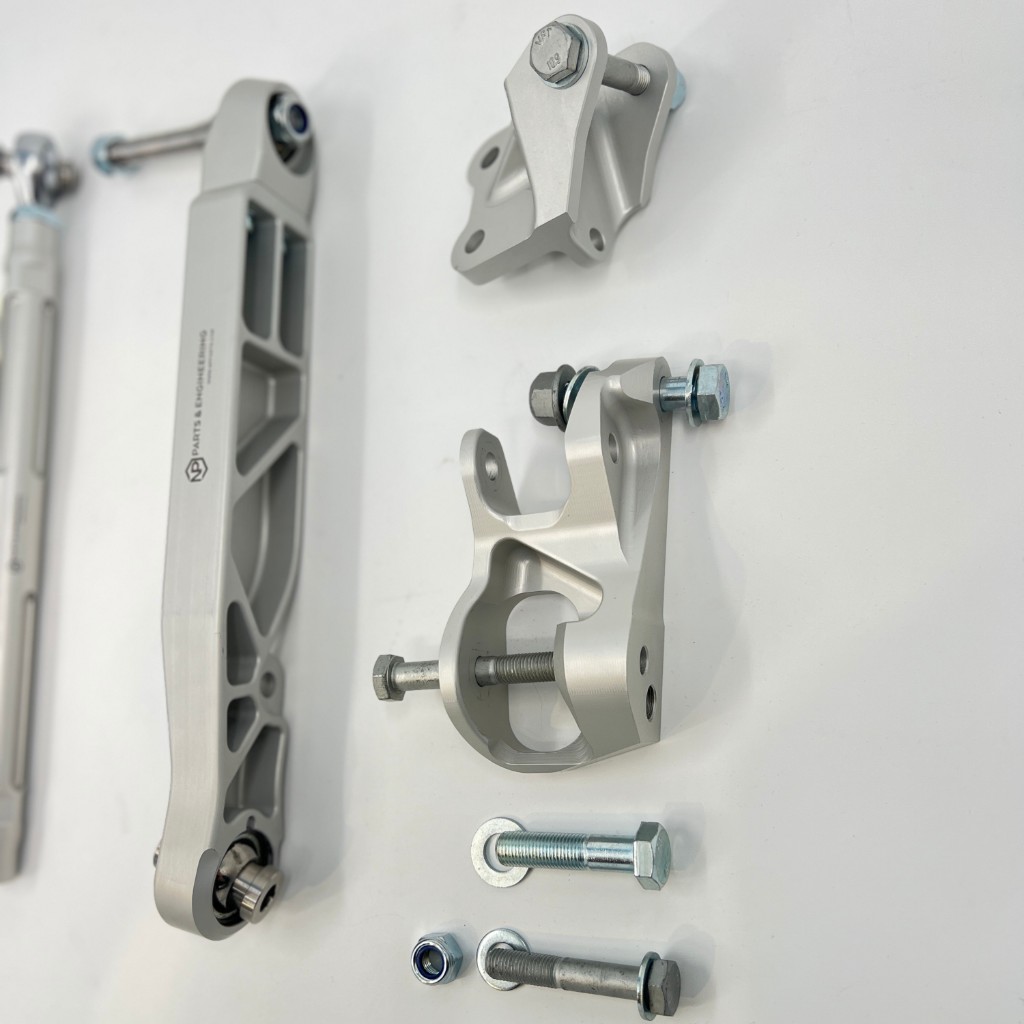

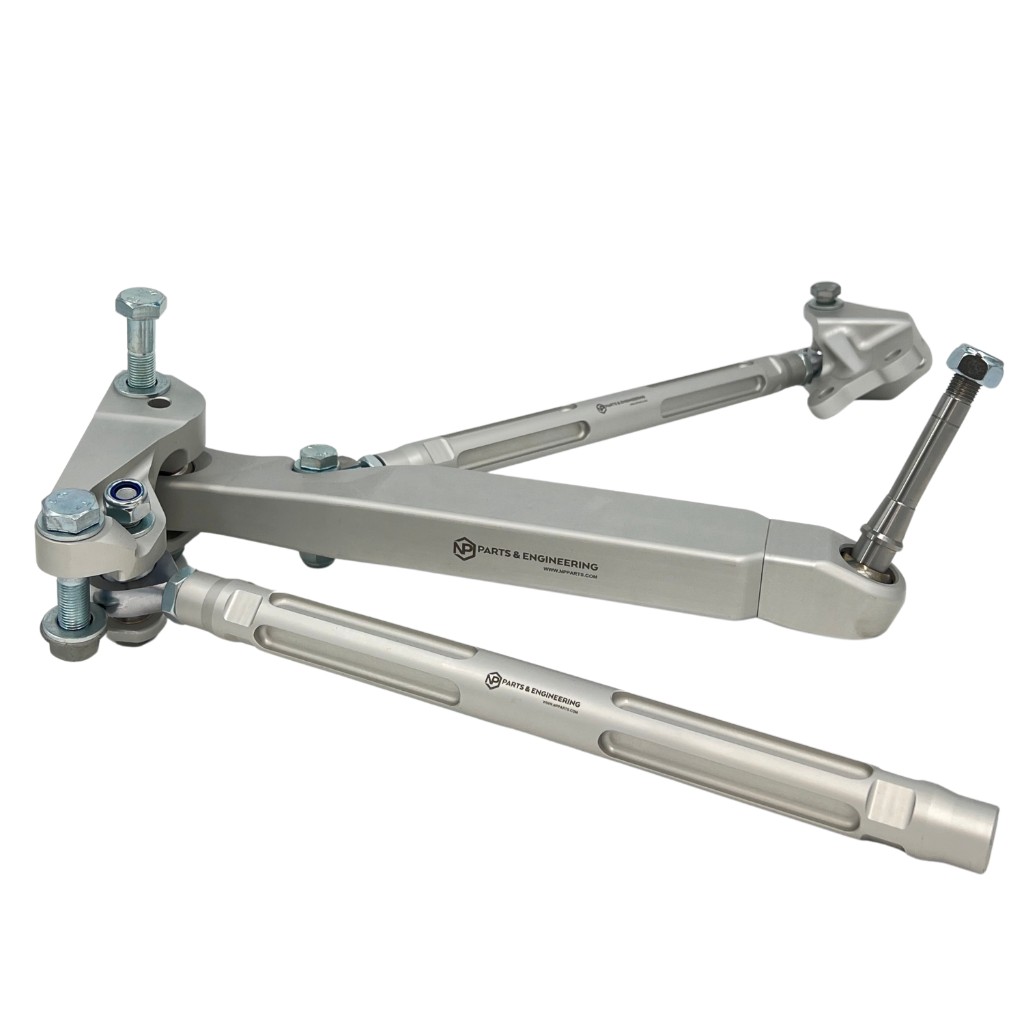

What Is Included in the BMW Billet Front Suspension Kit

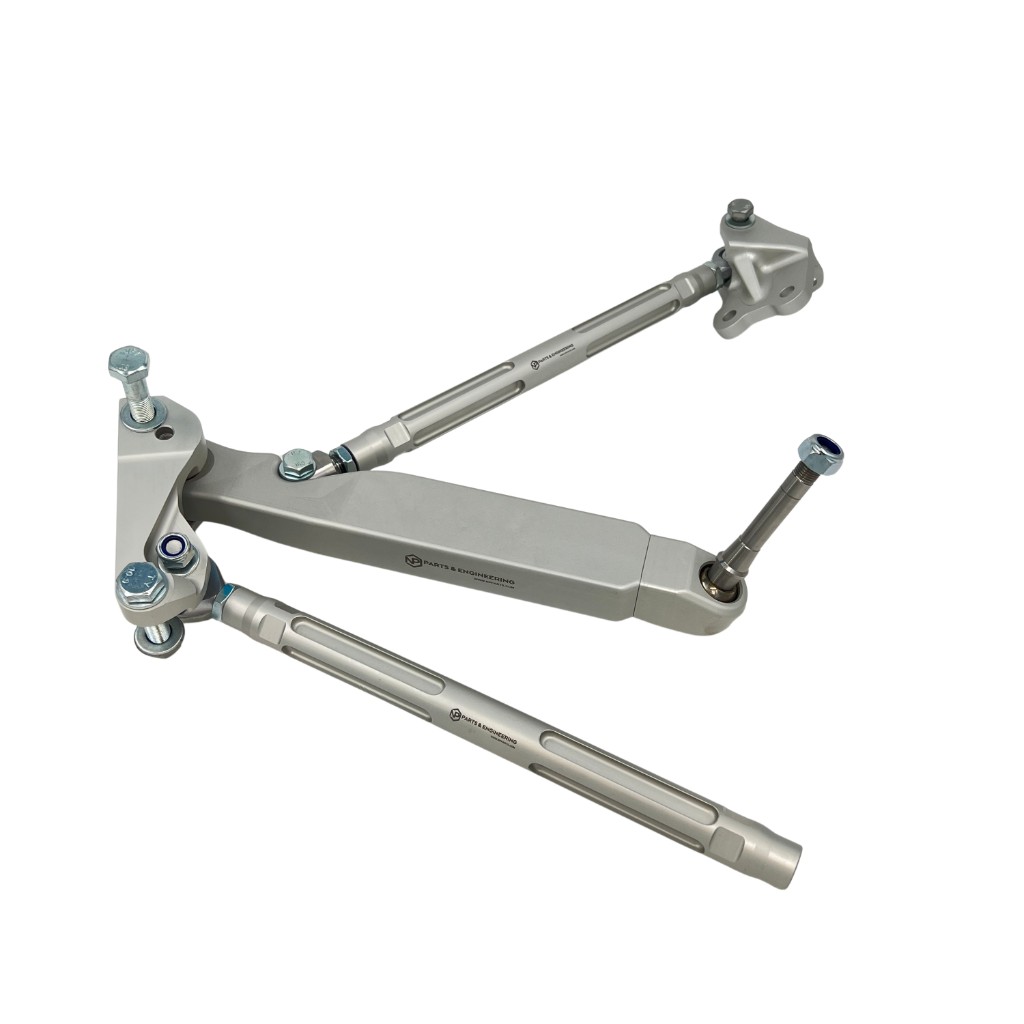

The BMW Billet Front Suspension Kit ships as a complete front suspension package rather than a single part, so you are not left sourcing brackets and fasteners separately:

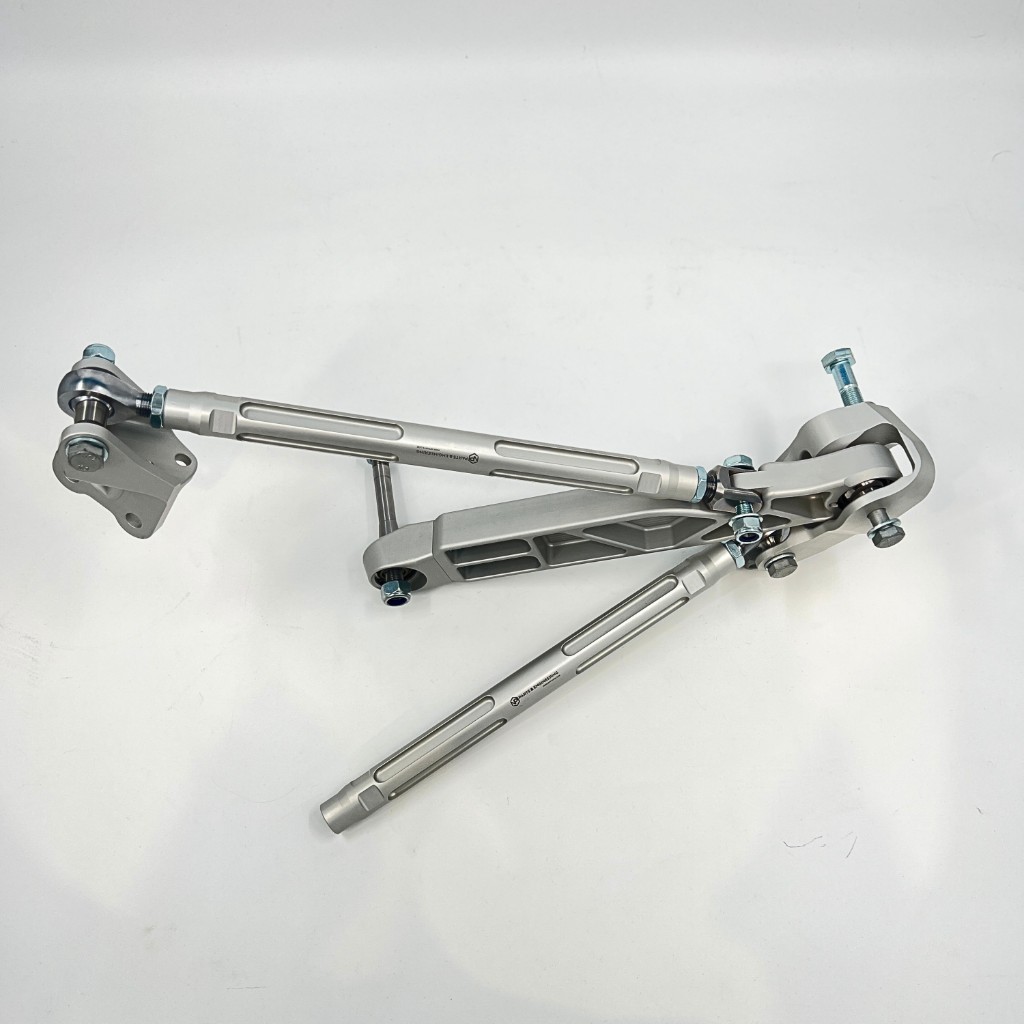

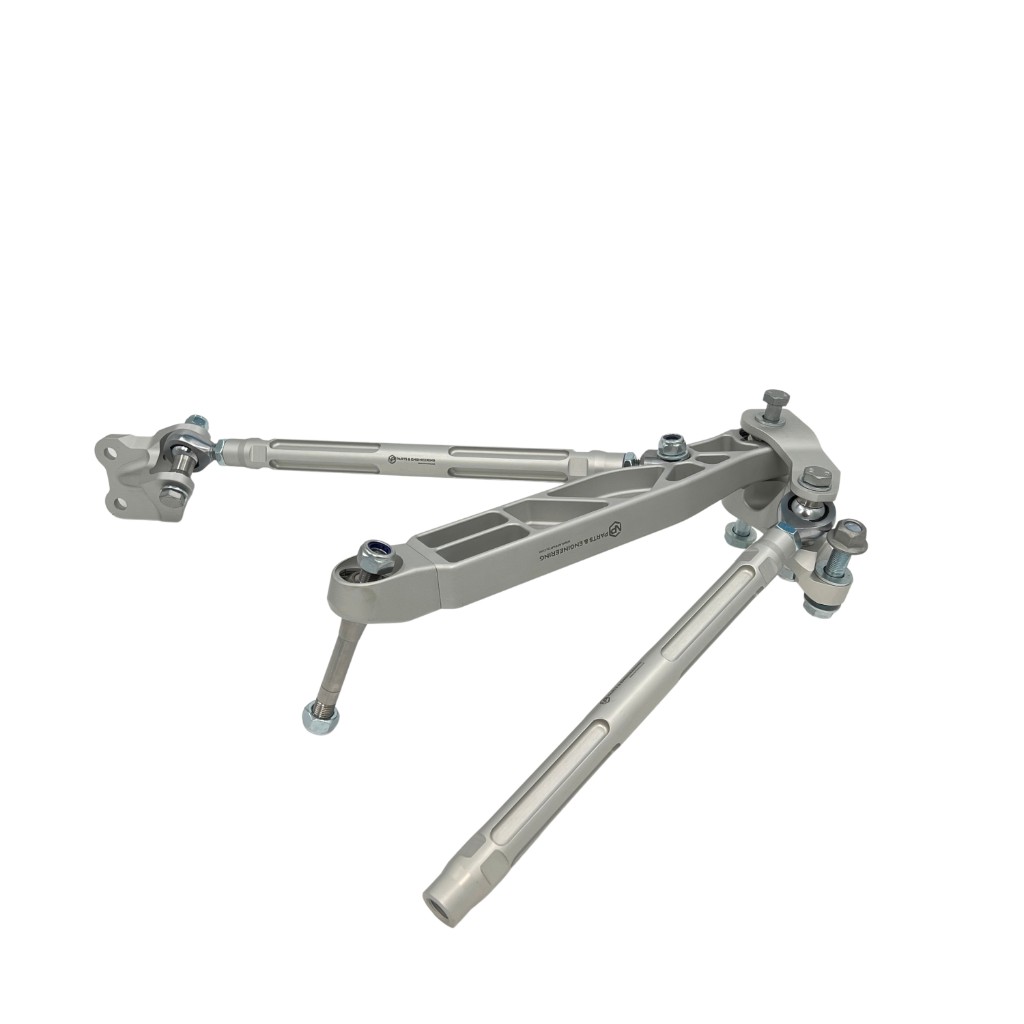

• 1 x billet aluminium lower control arm with spherical bearings

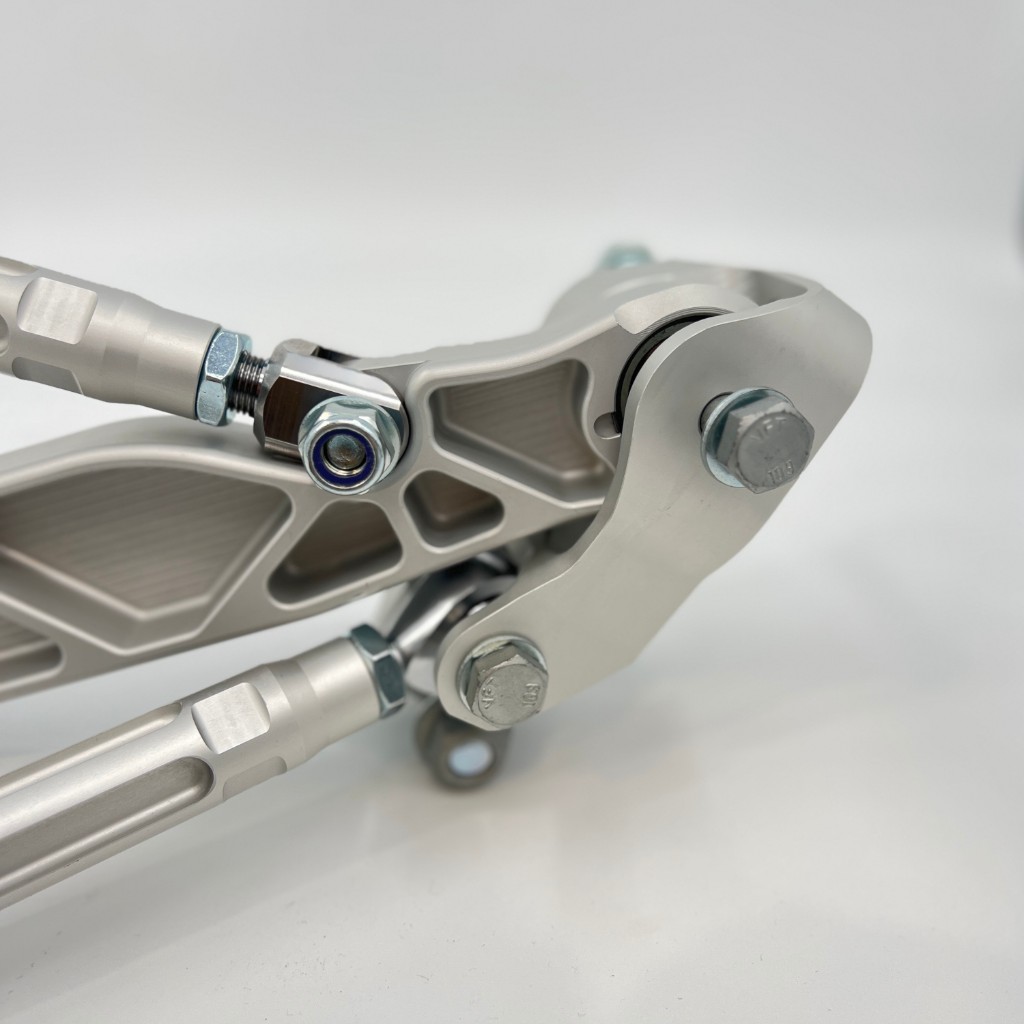

• 2 x length-adjustable tension rods with motorsport rod ends
• 1 x anti-roll bar drop link
• 2 x billet chassis mounting brackets
• Full mounting hardware set – bolts, nyloc nuts and washers

BMW Billet Front Suspension Kit Materials & Construction

The arms and brackets in the BMW Billet Front Suspension Kit are CNC-machined from solid billet aluminium. Machining from billet rather than casting gives a consistent grain structure and lets the material be left thick where loads concentrate and removed where it is not needed, which is why the arms carry visible lightening pockets.

The finish is a clean anodised surface that resists the salt, brake dust and track debris a front axle lives in. Fasteners are high-tensile and zinc-plated, and the rod ends use hardened races so they stay tight through repeated heat cycles.

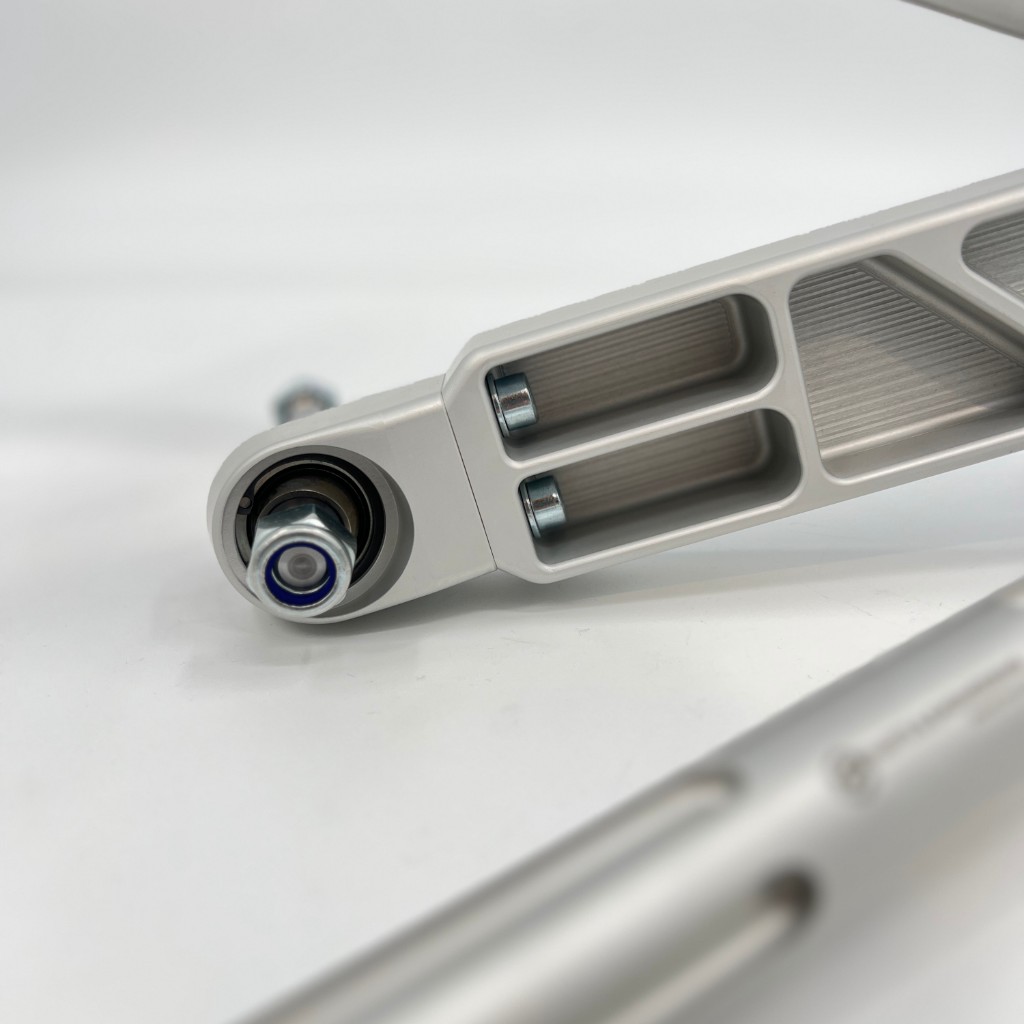

Spherical Bearings vs Rubber Bushings

Factory BMW front arms use rubber bushings. Rubber is quiet and cheap, but it is also compliant: every time you brake hard or load the front outside wheel, the bushing squashes and the wheel moves relative to the chassis. That movement shows up as a change in camber and toe exactly when you need the contact patch to stay put.

Spherical bearings remove that compliance. They allow the arm to rotate freely through suspension travel while resisting movement in every other direction, which keeps the camber angle you set on the alignment rack. That is why the BMW Billet Front Suspension Kit uses spherical bearings and rod ends at every joint. The trade-off is a small increase in transmitted noise, which is an easy compromise on a track-focused car.

Adjustability & Alignment with the BMW Billet Front Suspension Kit

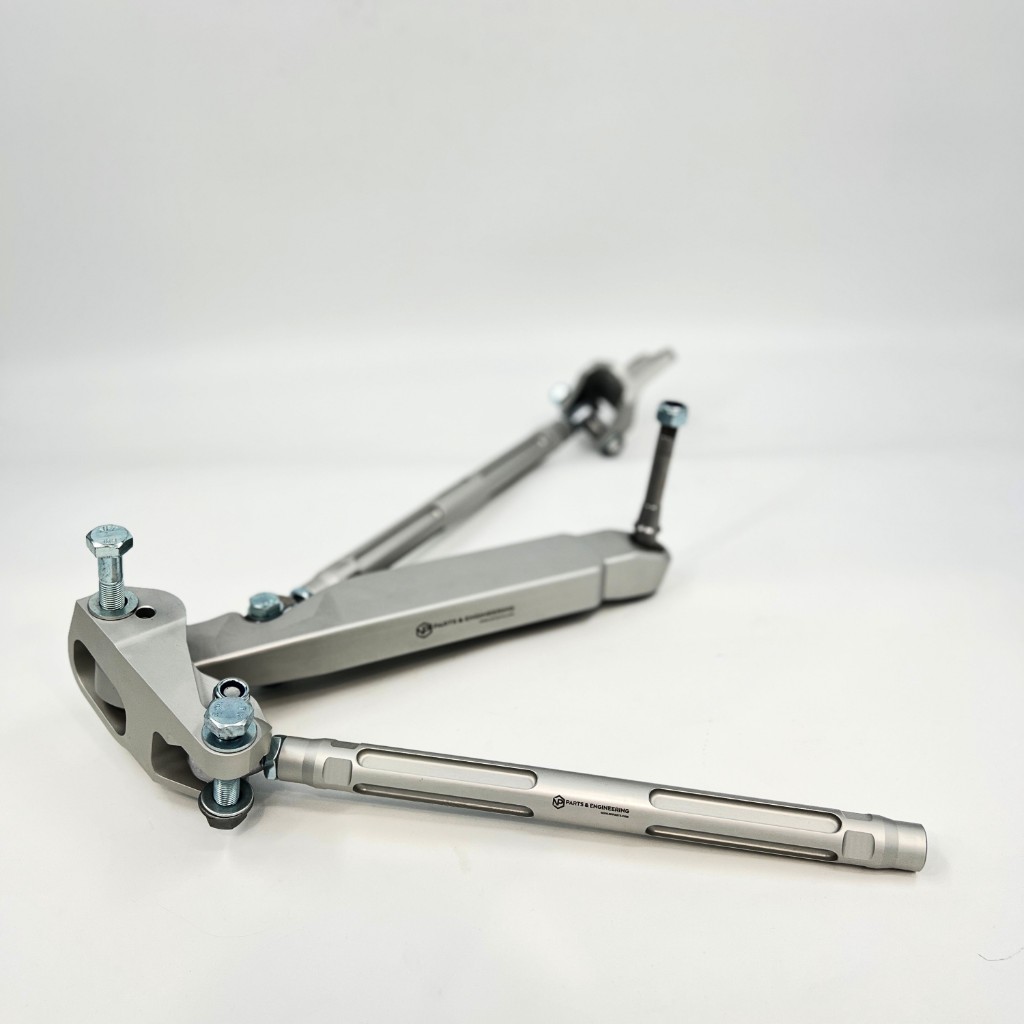

The tension rods in the BMW Billet Front Suspension Kit adjust in length, which moves the lower arm fore and aft and changes caster. More caster gives better straight-line stability and more camber gain as you turn in; less caster reduces steering effort. Because the rods are adjustable on the car, you can make setup changes between sessions without removing anything.

This adjustment also solves a common problem on lowered BMWs: once ride height drops, factory geometry pulls the wheel out of position and no amount of camber bolt adjustment brings it back. Adjustable rods let you reset the arm to the correct position first, then set camber and toe properly.

Have the car professionally aligned after fitting. Set caster first, then camber, then toe, and corner-weight the car if you have access to scales.

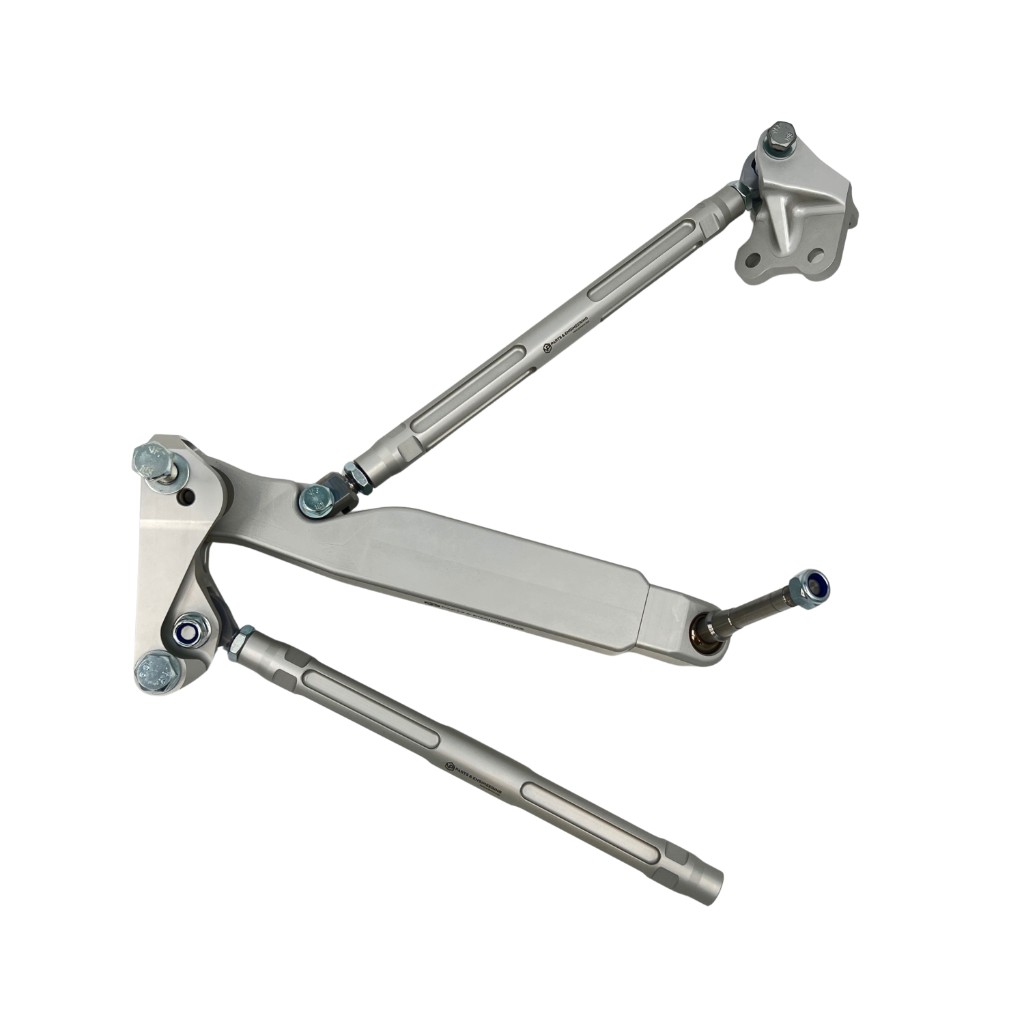

BMW Billet Front Suspension Kit Fitment & Compatibility

The BMW Billet Front Suspension Kit is engineered for the following chassis:

• BMW E30 – 3 Series, 1982 to 1994
• BMW E36 – 3 Series, 1990 to 2000
• BMW E46 – 3 Series, 1998 to 2006

If your car has non-standard subframes, a coilover conversion or an engine swap that changes the front crossmember, contact us before ordering so we can confirm clearance for your specific build.

Installing the BMW Billet Front Suspension Kit

Fitting the BMW Billet Front Suspension Kit is a workshop job that needs the front of the car safely supported and the wheels off. In outline:

• Support the chassis on stands and remove the front wheels.
• Unbolt the factory lower arms, tension struts and drop links.
• Fit the billet chassis brackets and torque them to the chassis.
• Install the billet lower arm, then the adjustable tension rods, leaving the rods loose.
• Fit the drop link, lower the car onto its wheels, then set rod length and torque everything.
• Book a full alignment before driving the car properly.

Budget a day if you are working alone and expect to fight some seized factory fasteners. If you are not confident working on suspension, have it fitted by a workshop.

BMW Billet Front Suspension Kit Applications

The BMW Billet Front Suspension Kit is built for competition use rather than road-driven cars:

• Track days and circuit racing – consistent geometry through long, loaded corners.
• Drifting – solid location under the large steering inputs and kerb strikes drifting involves.
• Time attack – the caster adjustment is a genuine setup tool when chasing lap time.
• Hillclimb and sprint events – sharper steering response on a stiffly sprung car.
• Race car builds – a permanent replacement for perished 30-year-old rubber.

Maintenance & Care

The spherical bearings in the BMW Billet Front Suspension Kit need occasional attention, unlike sealed rubber bushings. Check them as part of your normal pre-event routine:

• Inspect bearings for play at every wheel-off service.
• Re-check rod end lock nuts after the first event, then periodically.
• Rinse brake dust and track debris off the anodised surfaces before storage.
• Re-align the car if you change ride height or spring rates.

Why Choose NP Parts

We design, machine and test our parts in-house in the EU, and we run them on our own cars before they go on sale. That is how the BMW Billet Front Suspension Kit was developed, and it means short lead times, direct answers about fitment, and parts that are made to be used rather than displayed. See the rest of our motorsport parts and pit equipment range.

BMW Billet Front Suspension Kit Technical Specifications

Product	BMW E30/E36/E46 Billet Front Suspension Kit
Material	CNC-machined billet aluminium
Bearings	Motorsport spherical bearings and rod ends
Adjustment	Length-adjustable tension rods (caster and alignment)
Finish	Anodised
Fitment	BMW E30, E36, E46
Hardware	Bolts, nyloc nuts and washers included
Manufactured	EU made
Price	€1,299.99 excl. VAT

BMW Billet Front Suspension Kit Buying Guide

Before ordering the BMW Billet Front Suspension Kit, confirm three things. First, your chassis – the kit covers E30, E36 and E46, but heavily modified subframes need checking. Second, your intended use: this kit is track use only, so it is the wrong choice for a street-driven or daily car. Third, your alignment plan, because the kit only delivers its benefit once the car has been set up properly.

If you are upgrading the whole car, pair the BMW Billet Front Suspension Kit with our BMW E36/E46 billet control arms so the rear axle matches the front.

BMW Billet Front Suspension Kit Frequently Asked Questions

Does the BMW Billet Front Suspension Kit fit all three chassis?
Yes. The kit is engineered for the BMW E30, E36 and E46 front axle. Contact us first if your car has a modified crossmember or subframe.

Can I use it on the road?
No – the BMW Billet Front Suspension Kit is intended for track use only. The spherical bearings and rod ends transmit far more noise and vibration than rubber bushings and wear quickly in road grit and salt, so we do not supply this kit for street-driven cars.

Do I need an alignment after fitting?
Yes, always. Set caster with the adjustable rods first, then camber and toe. Skipping alignment will ruin tyres and waste the upgrade.

Is any hardware missing from the kit?
No. Bolts, nyloc nuts and washers are supplied with every BMW Billet Front Suspension Kit. You only need normal workshop tools and a torque wrench.

Will it work with coilovers?
Yes, and it works particularly well with them. The adjustable rods let you correct the geometry changes that lowering a car introduces.

How long does installation take?
Around a day for a competent home mechanic, less in a workshop with a lift. Seized factory fasteners are usually the slowest part.
